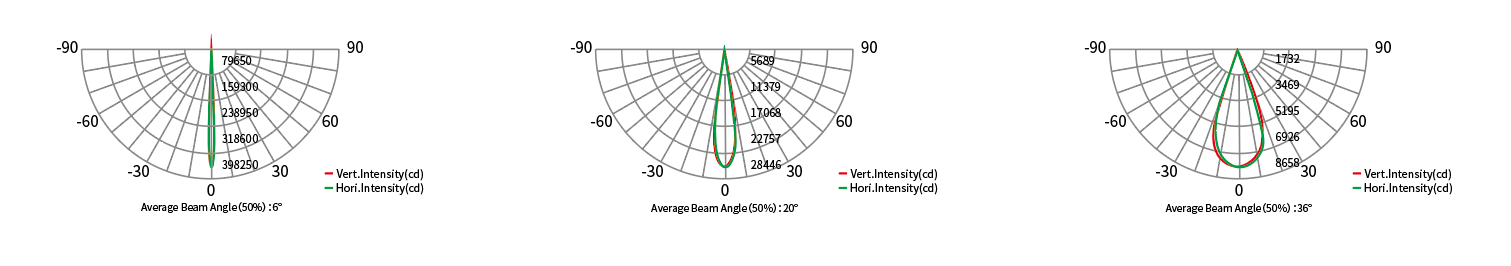

ILLUMINANCE

Q27

QUAKE 18Q uses a new 4-in-1 RGBL light source, high color saturation, excellent color mixing effect, richer and more delicate color mixing.With the original intelligent dimming technology and flexible segmented control, the building can present more artistic effects. Equipped with advanced RDM function,real-time feedback of lamp failure and usage status, reducing troubleshooting and maintenance costs.Wtih color consistency system 3.0, the product can have 24 preset colors to make the color effect quickly and precise, also has CCT function from 1800k to 10000k, to acheive different color temperature effect for clients.Anyway with this new system, we can keep the different batch production with the same colors.
DETAILS

TECHNICAL DATA

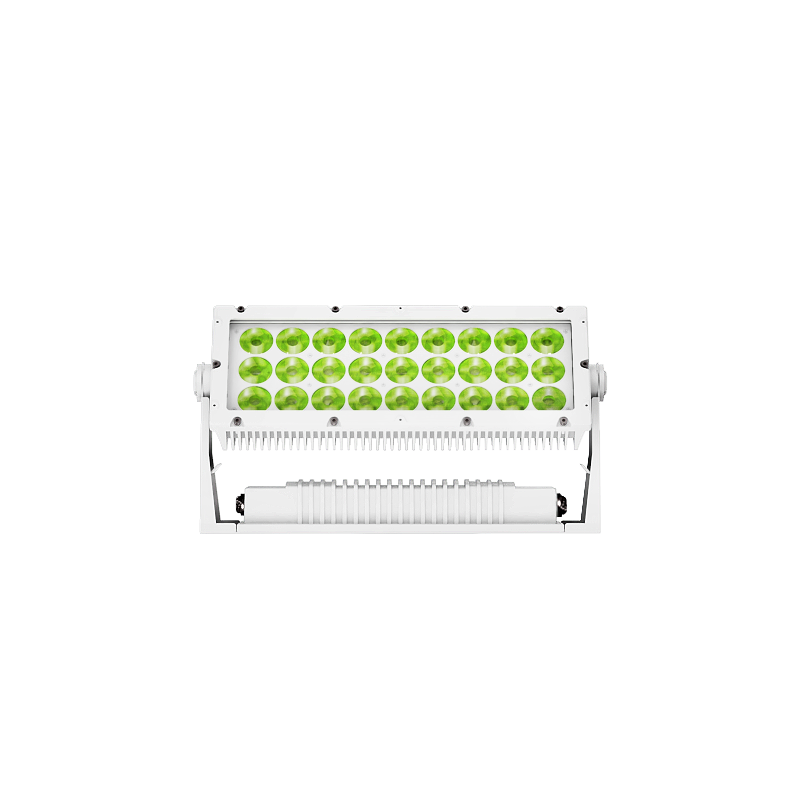

LED Qty
27pcs 4 in 1 RGBL(RGBA/RGBW)
Optics
6°、10°、15°、20°、30°、36°
Lumen
10160lm
Peak Intensity
398250cd(6°)
Controllable sections
3

PHYSICAL

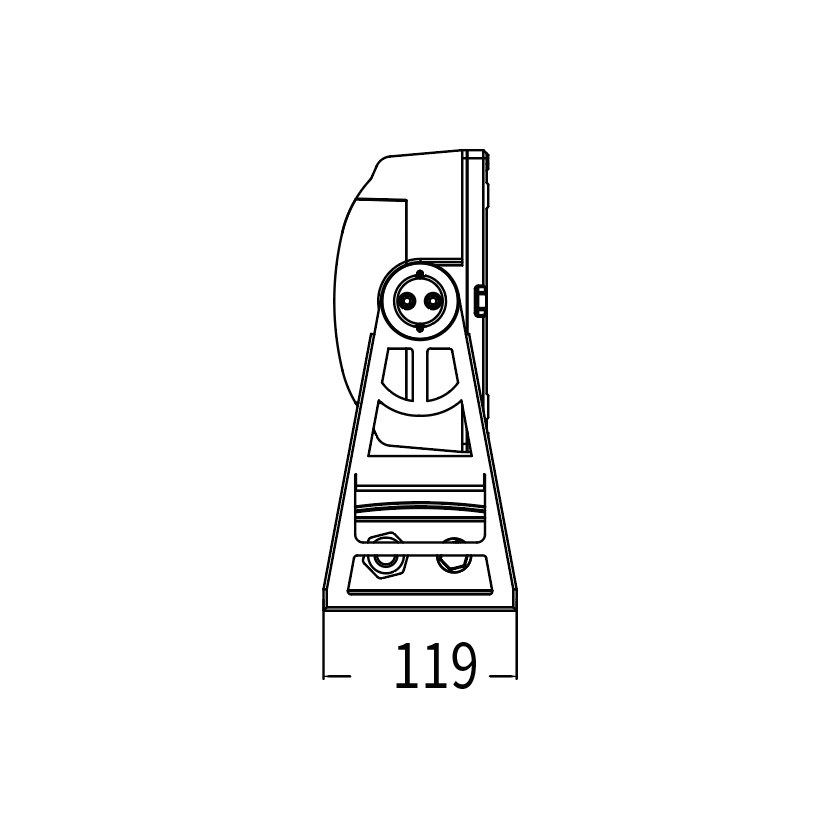

Dimensions
521*119*284mm
Weight
11.4kg
Housing
Die-cast aluminium

ELECTRICAL

Input voltage
AC100-277V
Max.power
300W

SYSTEM SPECIFICATIONS

Dimmer
Dimmer(0-100% 16Bit)
cooling system
Forced Convection
Control protocol
DMX512、RDM

OPERATING AMBIENT

Operating Temperature
-20℃-45℃
Ingress protection
IP67

DOWNLOAD

user manual

QUAKE 27Q AM1362XLET-user manual 2023-10-31
DONWLOAD

leaflet

QUAKE 27Q AM1362XLET-leaflet 2023-10-31
DONWLOAD

MA2

AM1362XLET(MA2) 2023-10-31
DONWLOAD
