PHOTOS
VIDEOS

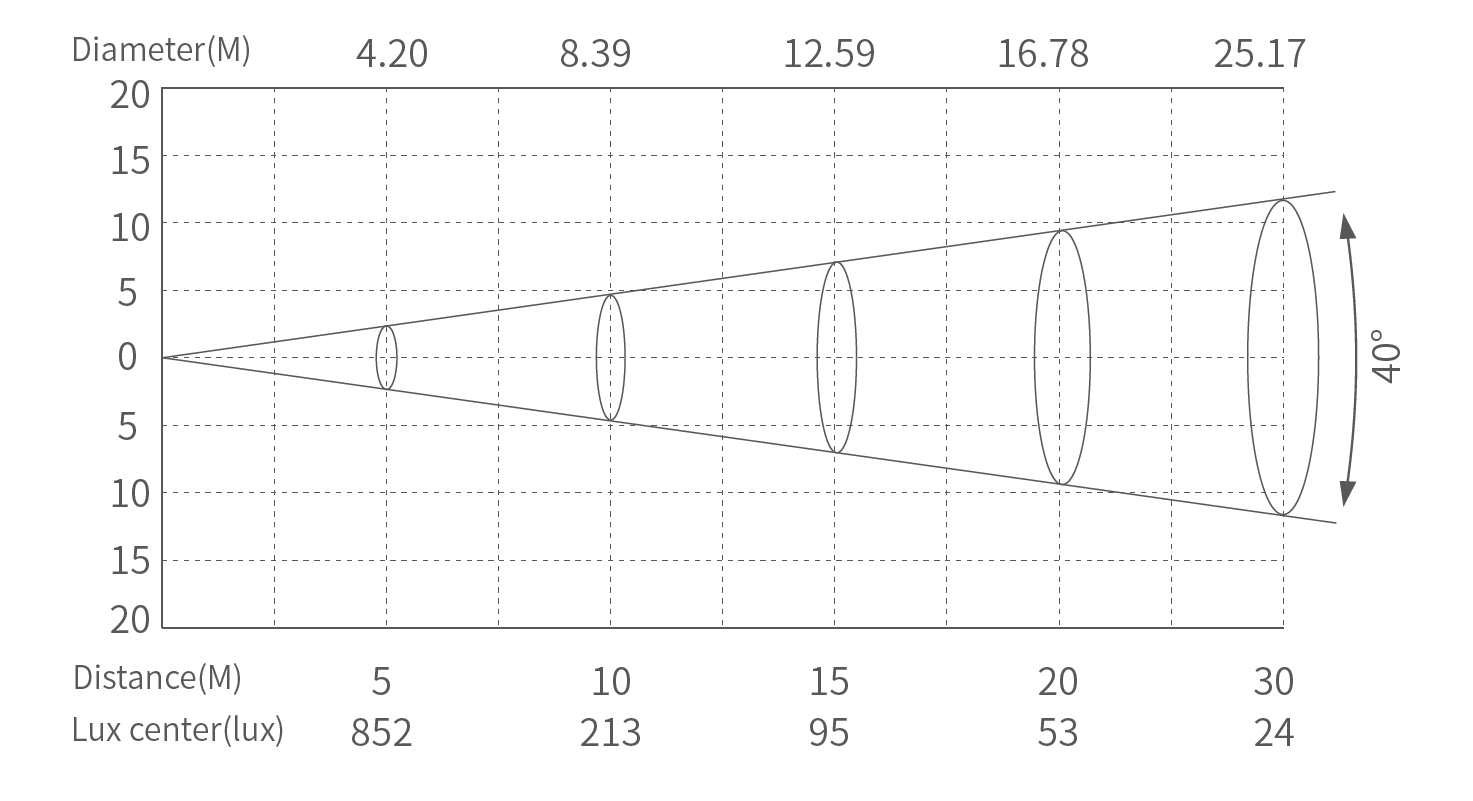

ILLUMINANCE

E3

Eidolon 350 is an innovative waterproof projection lighting under independent research and development, with compact structure and attractive appearance. With pure white color temperature, it is equipped with intelligent zoom electronic system; 8-40 ° can be linearly adjusted. Focusing smoothly, and precisely in control. Built-in rotatable Gobo wheel and dynamic effects wheel, prism and other functions, AG750 can achieve a wealth of dynamic pattern simulation effect. Equipped with an excellent optical system, the light spot is uniform with clear-cut margin, and the pattern image is vivid. The product is IP66 waterproof rating, which is widely used in theme parks, playgrounds, Commercial complex, commercial plazas, architectural buildings, outdoor performances and other large and medium-sized venues.
DETAILS

Max. Power
350W
Light source
350W(cool white LED module)
Angle
8°-40°(electronic zoom)
Display
On board Control, 0-25Hz Strobe
Con personality
STANDARD(20CHS), BASIC(17CHS)
Rotating Gobo
7 Gobos+White, Gobo-flow effect, Gobo shake, Bi-directional rotation
Colors
One color wheel (7 dichroic-filters+White, Rainbow fiow effect)
Prism
One 3 prism with bi-directional rotation, Speed adjustable
CMY
CMY sysem, Built-in Macro
Focus
Motorized linear focus
Animation Wheel
Bi-directional rotation, Speed adjustable
Frost
1 Frost filter

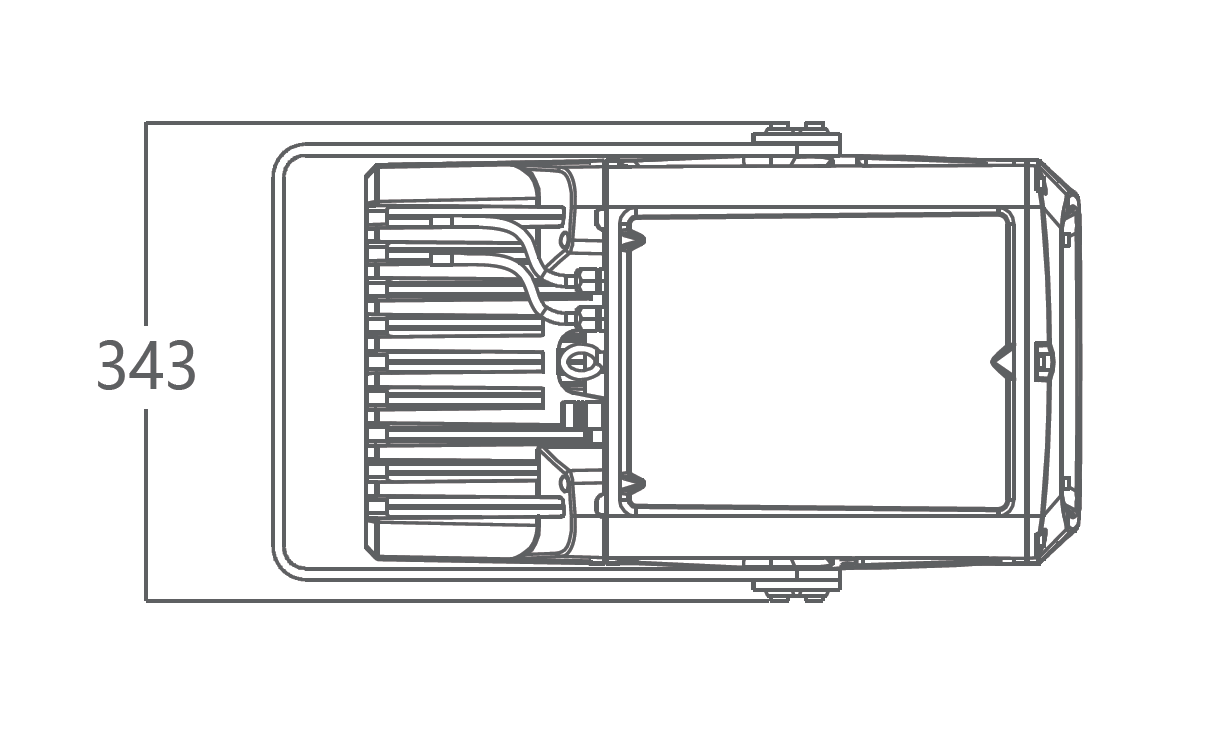

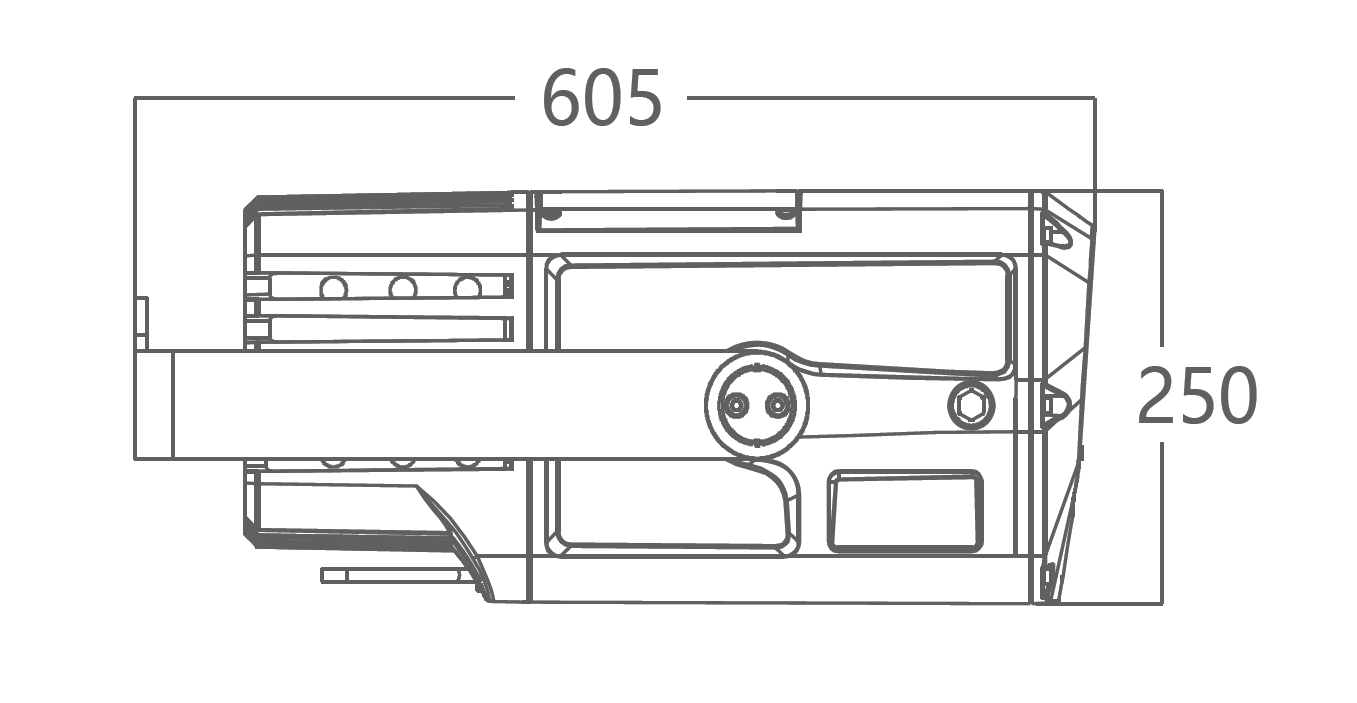

Dimensions(L*W*H)
605x343x250mm

DOWNLOAD

Leaflet

Eidolon 350-leaflet 2024-04-22
DONWLOAD

User manual

Eidolon 350 AG750SCT-user manual 2023-10-31
DONWLOAD

MA2

AG750SCT(MA2) 2023-10-31
DONWLOAD

AVOLITES

AG750SCT(AVOLTES) 2023-10-31
DONWLOAD

More
