T42

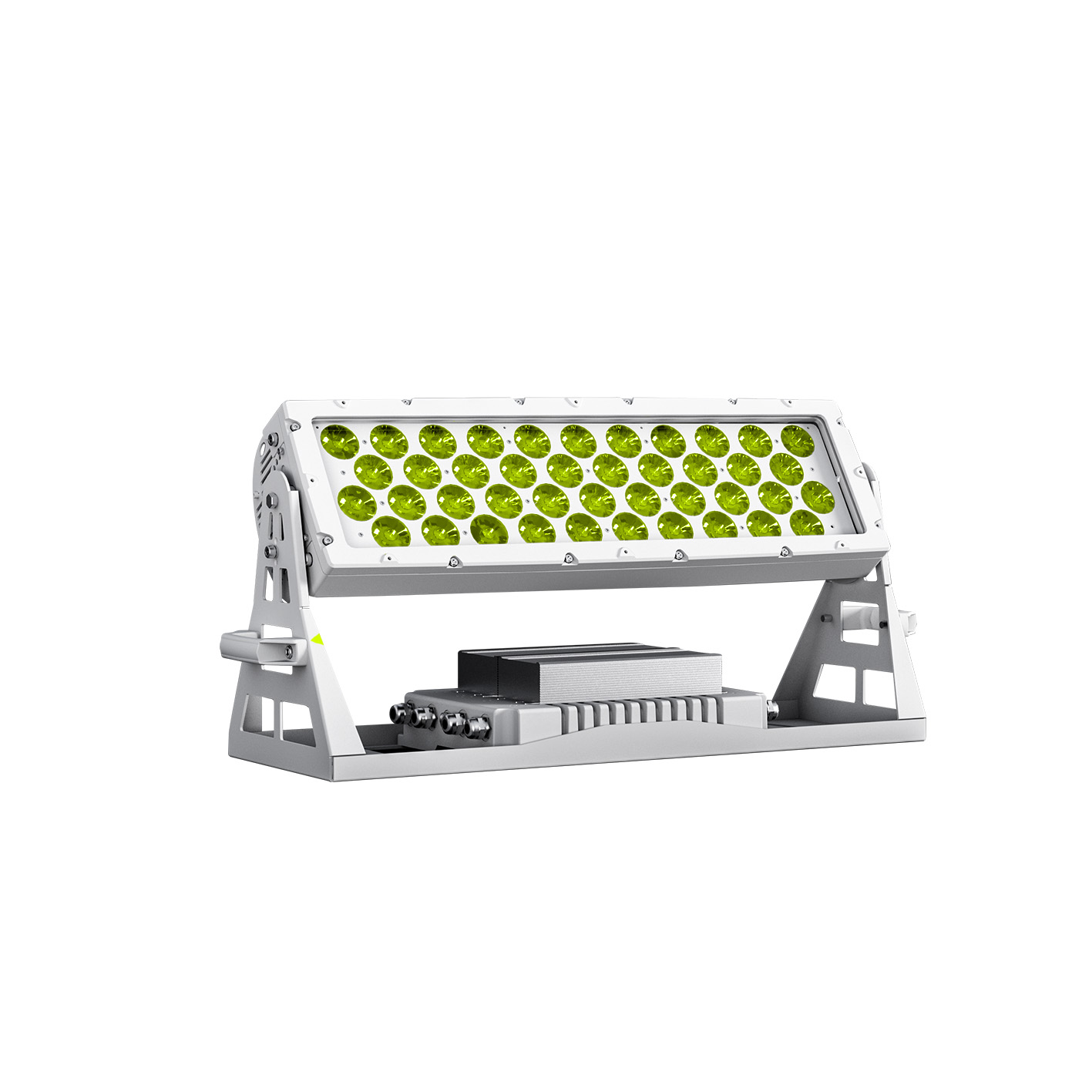

TARPON 42Q is a newly developed RGBL four-in-one high-power colour floodlight, with CCS colour management correction system and smooth 16Bit dimming technology. It is advantage feature with excellent colour mixing effect, high colour saturation, high light efficiency, high illumination, high performance and stability. it can achieve perfect colour interpretation and super long light-emitting distance. Optional wireless DMX512 control mode and RDM two-way feedback function, it providing a variety of large-scale outdoor lighting projects with varieties lighting solutions. Product series are rich and complete, the light is ideal for large-scale occasions such as towers, bridges, large venues and comprehensive commercial buildings.
DETAILS

TECHNICAL DATA

LED Qty
42pcs 4 in 1 RGBL(RGBA/RGBW)
Optics
6°、10°、15°、20°、30°、36°
Lumen
15120lm
Peak Intensity
669600cd(6°)
Controllable sections
4

PHYSICAL

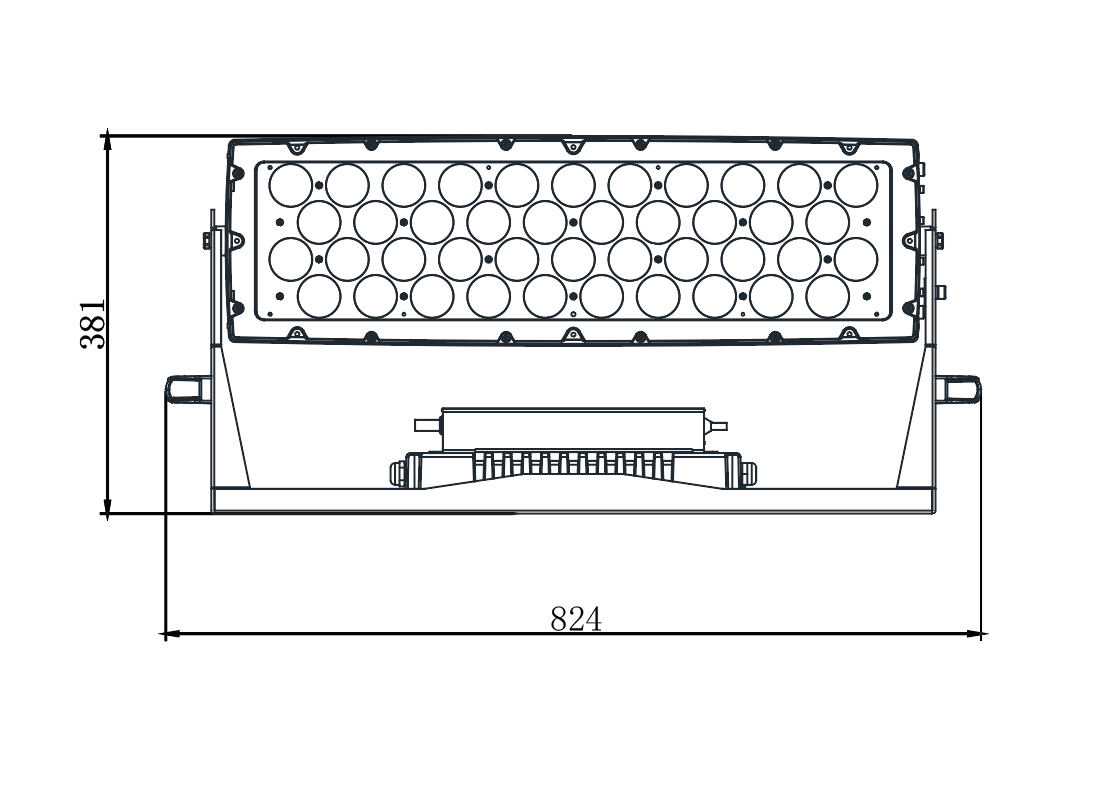

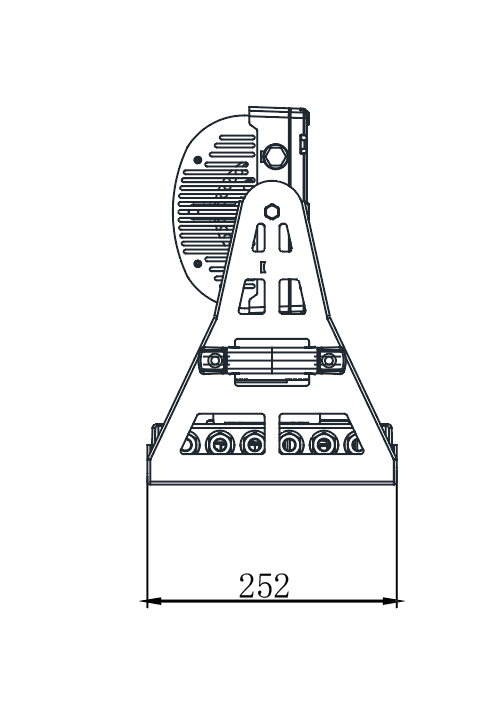

Dimensions
824*252*381mm
Weight
32kg
Housing
Die-cast aluminium

ELECTRICAL

Input voltage
AC100-240V
Max.power
600W

SYSTEM SPECIFICATIONS

Dimmer
Dimmer(0-100% 16Bit)
cooling system
Forced Convection
Control protocol
DMX512、RDM

OPERATING AMBIENT

Operating Temperature
-20℃-45℃
Ingress protection
IP67

DOWNLOAD

user manual

TARPON 42Q AM1381XLET-user manual 2023-10-31
DONWLOAD

leaflet

TARPON 42Q AM1381XLET-leaflet 2023-10-31
