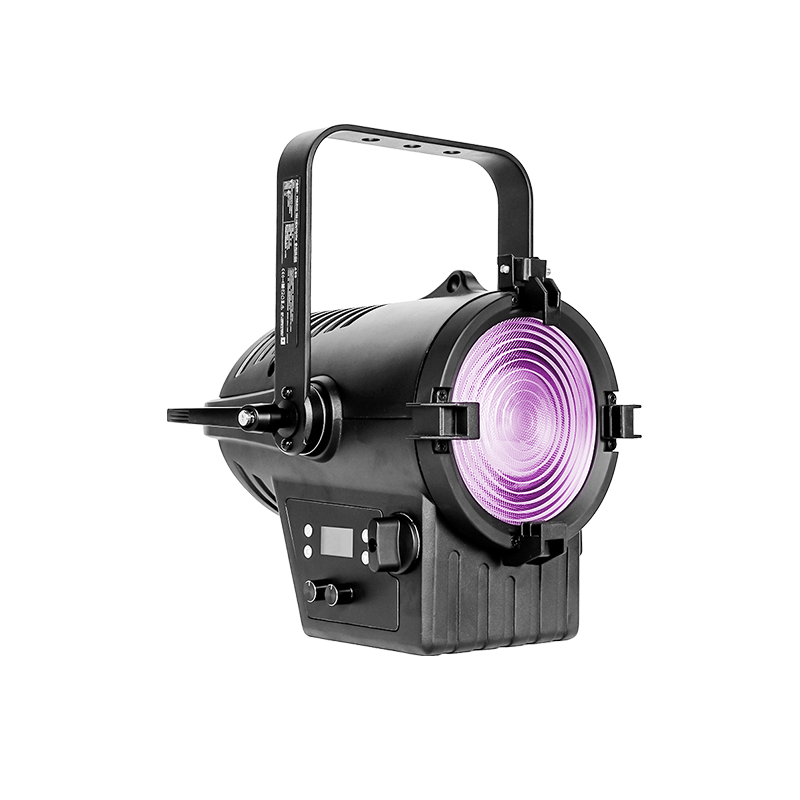

FREZNO 150 HEX is a full-color Fresnel, with HSIC intelligent color mixing system, can quickly pick up any color, and present extremely uniform colors. It is preset with 16 kinds of special colors for theater, CCT 1800k-10000k and a smooth 16bit dimming without any shacking. Built in intelligent CCS color management system for high color consistency for each model and shipments. Manual zoom and dimmer on body, it is ideal tool for theatre, TV station, cultural center, studio, multi-function hall, etc.
DETAILS
Optical system
Light source
100W（RGBALC）
CCT
1800K-10000K
Beam angle/Field angle

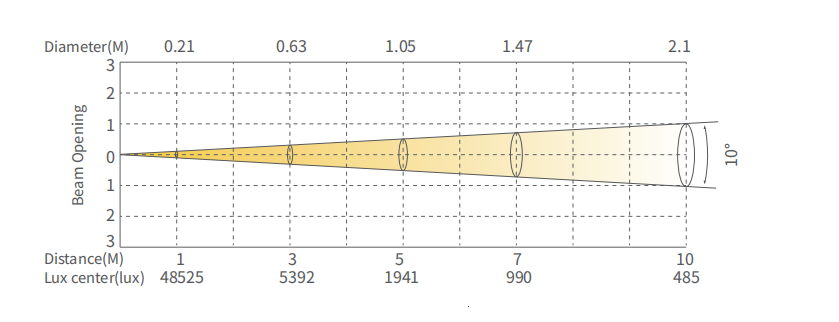

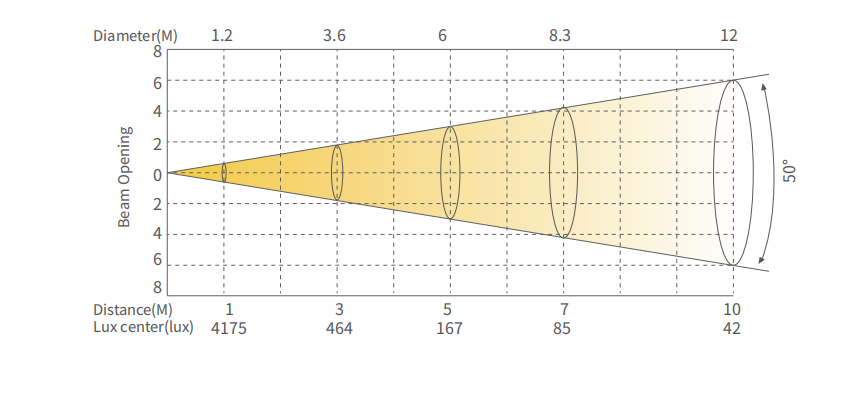

10°-50°（Manual control）/18°-75°
CRI Ra：95/CRI R9 99/TLCI 90/CQS/96
Appearance
Size

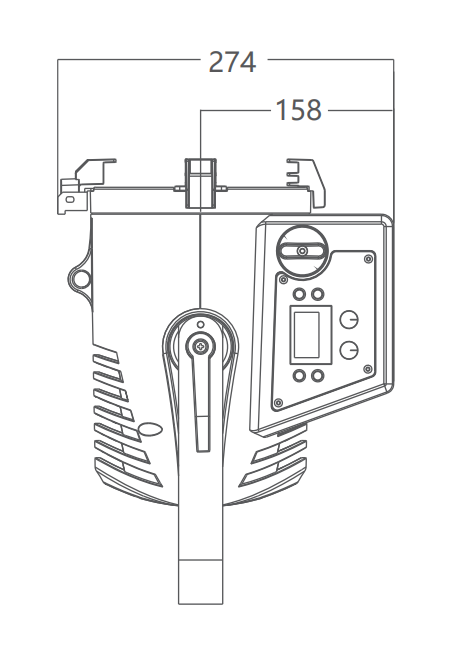

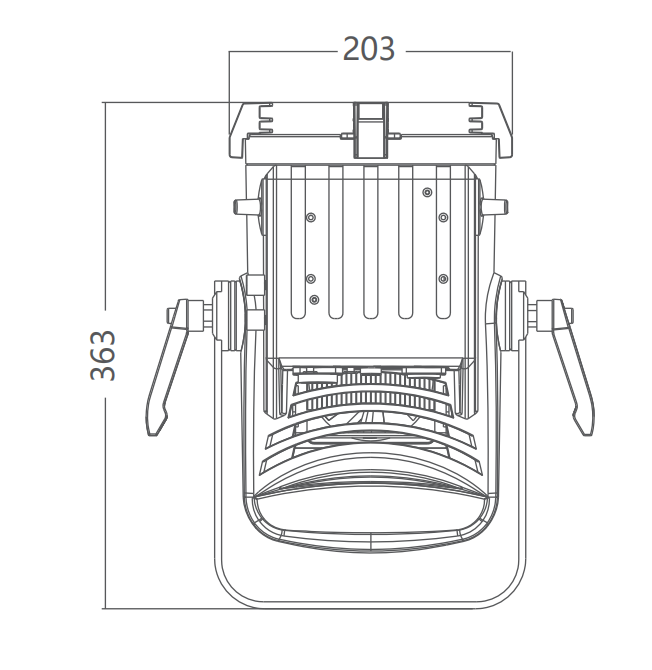

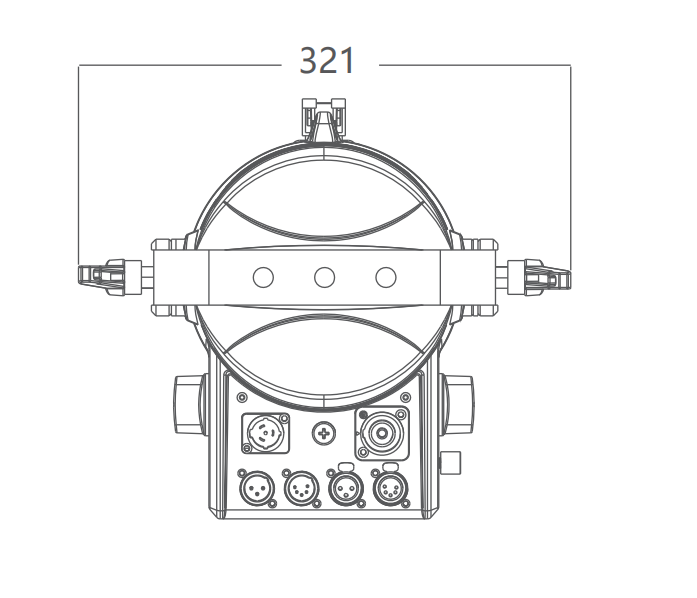

321x274x363mm
Weight
5.3kg
Casing
Die-cast aluminum
Color
Black
Electrical Specs
Voltage
AC100-240V
Max. Power
120W
Power Connection
Power in and out
Signal socker
3pin and 5pin in and out
Control System
Dimmer
0-100% 16Bit
Cooling
Forced convection
Control
DMX512、RDM
Con Personality
Basic（3CHS）、CMY （10CHS）、SSP（9CHS）、TOUR（13CHS）、TR16（20CHS）、HSIC（7CHS）
Display
On board Control ，Custom Mode ，0-25Hz Strobe，Dimming konb
Work Environment
Ambient Temp
0℃-45℃
IP Rated
IP20
Certification
CE、MET
