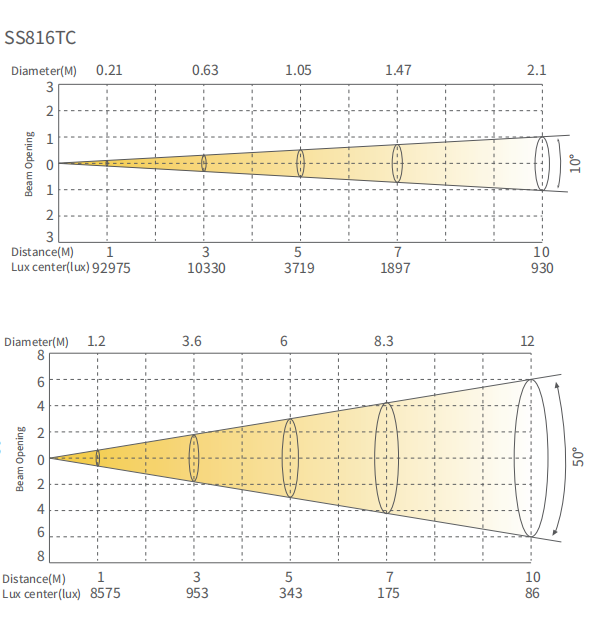

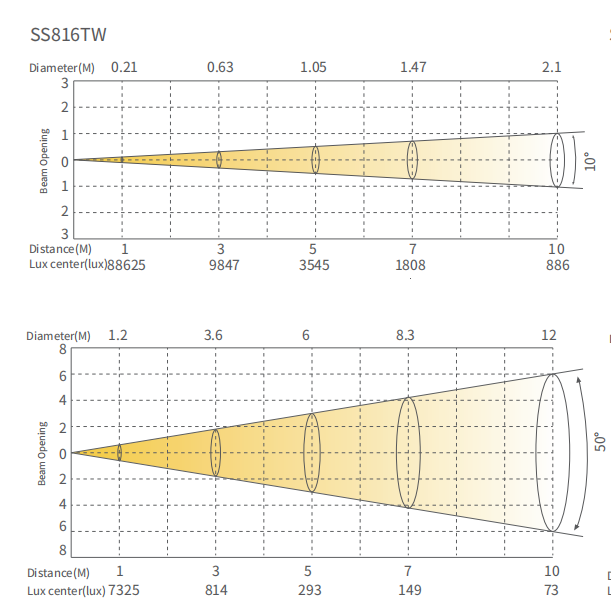

ILLUMINANCE
F3

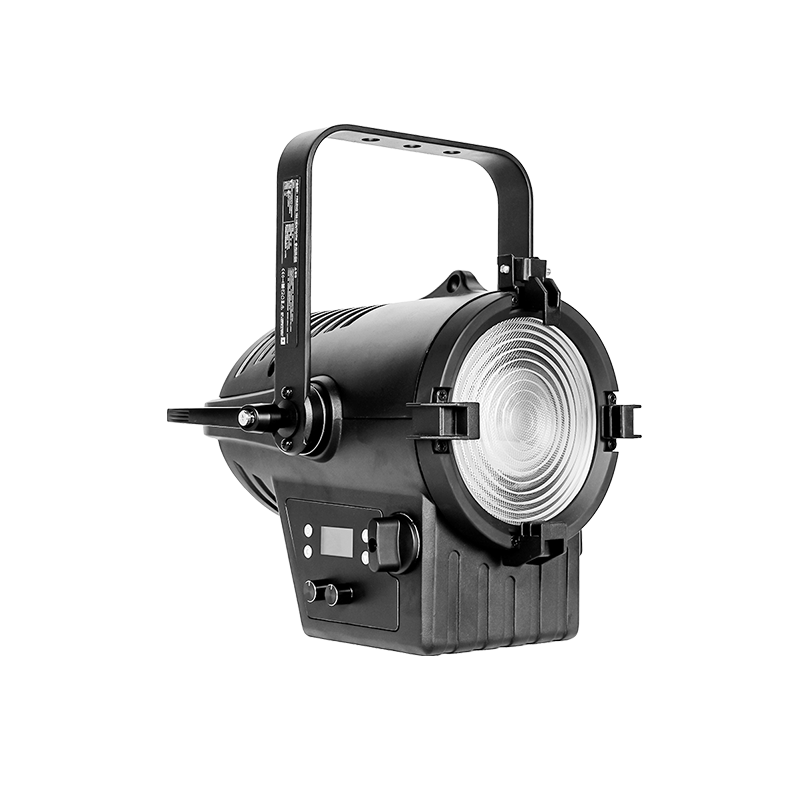

The FREZNO 150 TW/TC is a compact, lightweight LED Fresnel with high efficiency and CRI. Pure color temperature, built-in 0-100% dimmer, Beam angle 10°-50°（Manual control）, Field angle 18°-75°, simple and quick adjustment for choosing beam Angle base to different distances and locations, manual CCT buttom on body, FREZNO 150 TW with Tunable CCT 2700k -4500k, FREZNO 150 TC with Tunable CCT 4000k -6500k, this model is designed for theater, television, cultural centers, studio, multi-function meeting rooms and other small and medium applications.
DETAILS
Optical system
Light source
LED 100W
CCT
TW-3200K(2700K-4500K range) TC-5600K(4000K-6500K range)
Beam angle/Field angle
10°-50°（Manual control)/18°-75°
CRI/CQS
Ra≥95/>90
Appearance
Size

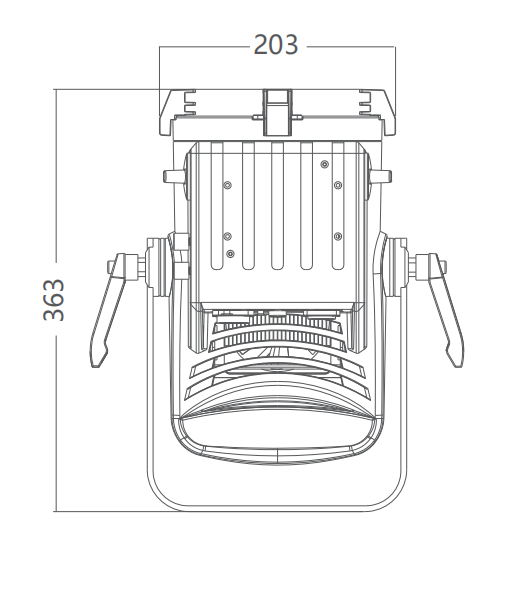

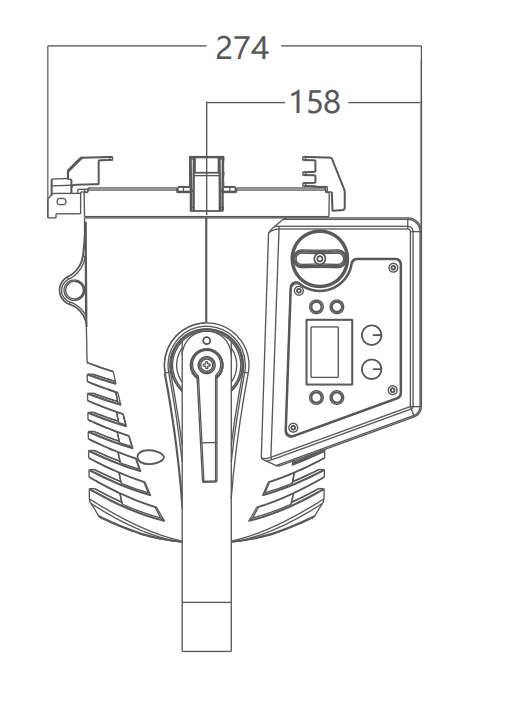

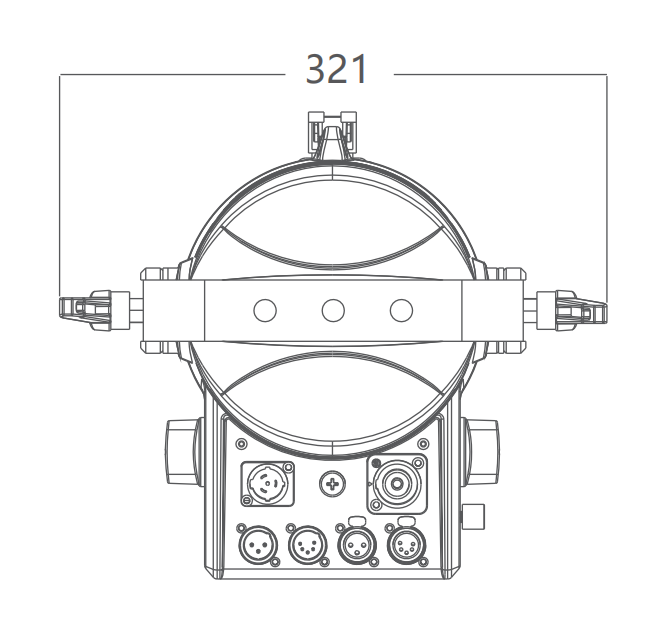

321x274x363mm
Weight
5.3kg
Casing
Die-cast aluminum
Color
Black
Electrical Specs
Voltage
AC100-240V，50/60Hz
Max. Power
120W
Power Connection
Power in and out
DMX XLR
3pin or 5pin in and out
Control System
Dimmer
0-100% 16Bit
Cooling
Forced Convection
Control
DMX512、RDM
Con Personality
UNO/1CHS、DOS/2CHS、VW.D/3CHS、VW.F/6CHS、STD.P/8CHS
Display
On board Control ，Custom Mode ， 0-25Hz Strobe，Dimming konb
Work Environment
Ambient Temp
0℃-45℃
IP Rated
IP 20
Certification
CE、MET
