NH5

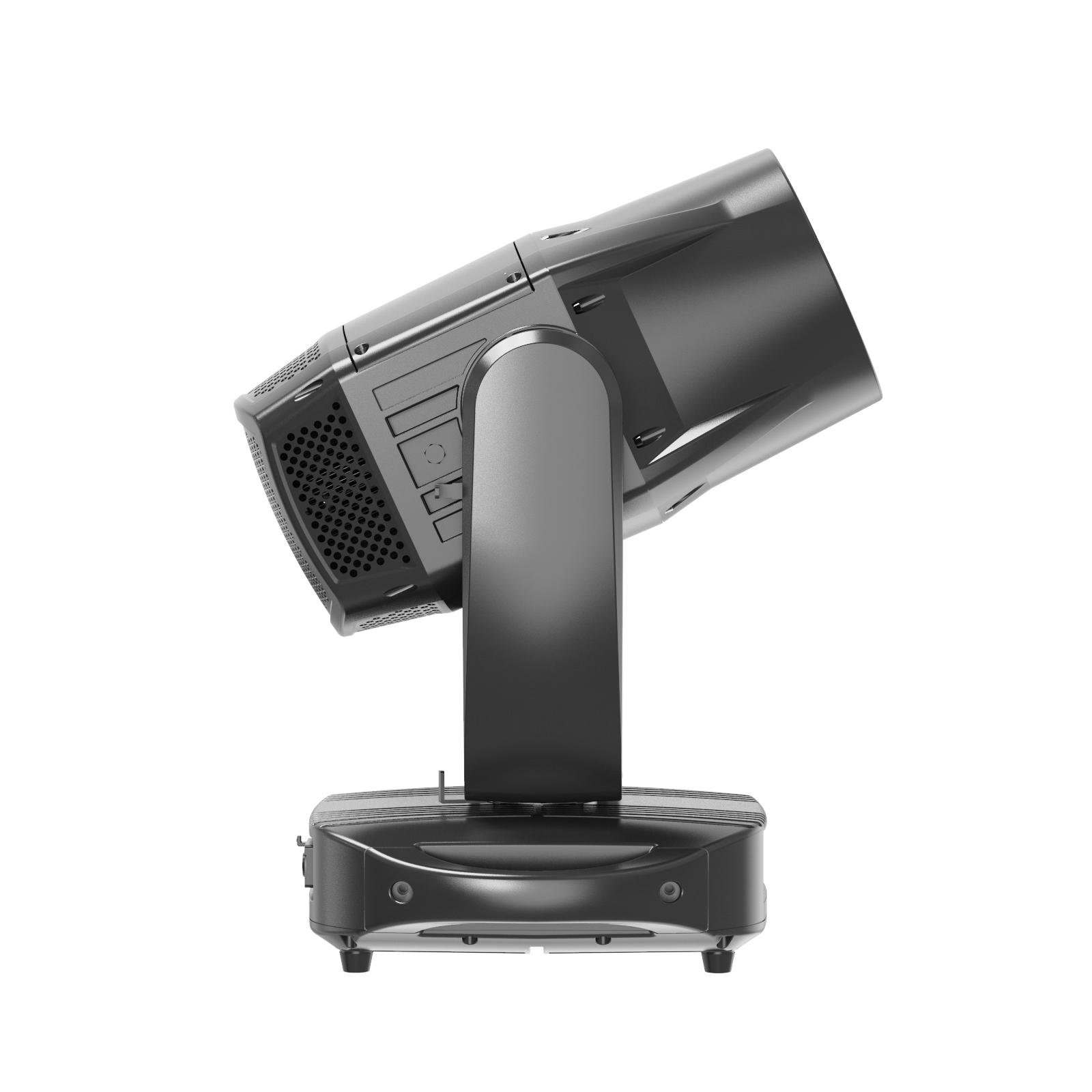

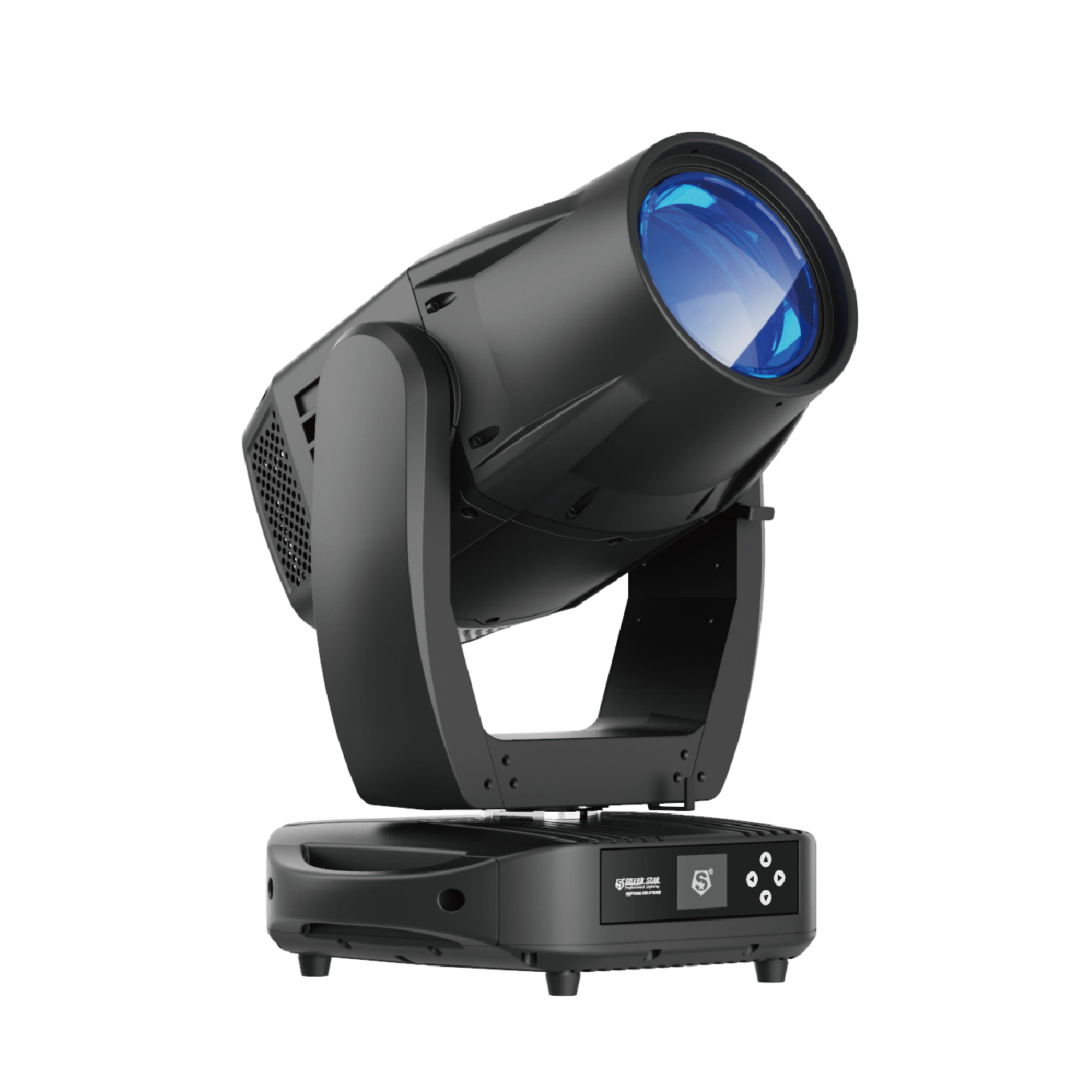

NEPTUNE 550 HYBRID is a powerful IP hybrid moving head, with high-efficient optics, wide zoom angle from 2.7°-33°,provides a strong Beam and Spot effect. It has fast and silent X/Y movement, professional high quality color wheel, extremely clean static and rotation gobo projection, Perfect product for outdoor concerts/events, commercial complex, theme park, amusement park and rental touring market.
DETAILS
Optical system
Light source
450W module
Angle
2.7°-33°
Control System
Pan/Tilt rotation
540°/270°(8-16bit)
Dimmer
0-100% 16Bit
Cooling
Forced Convection
Control
DMX、RDM、ARTNET、sACN、WEB server、W-DMX（optional）
Display
On board Control, Custom Mode,0-25Hz Strobe
Con Personality
STANDARD（26CH）/BASIC（22CH）/EXTEND（30CH）
Special
Pan/Tilt movement blackout, User-selectable pan/tilt ranges, gravitation sensor for auto screen positioning
Effect synthetic system
Rotating Gobo
7 Gobos+ White, Gobo-flow effect, Gobo shake, Bi-directional rotation
Static Gobo
7 Gobos+ White， Gobo-flow effect，Gobo shake
Colors
CMY , One color wheel(7dichroic-filters+White， Rainbow-floweffect)
Prism
One piece of 5 F prism with bi-directional rotation, Speed adjustable
Animation Wheel
Bi-directional rotation,Speed adjustfable
Focus
Motorized linear focus
Frost
1 Frost filter
Appearance

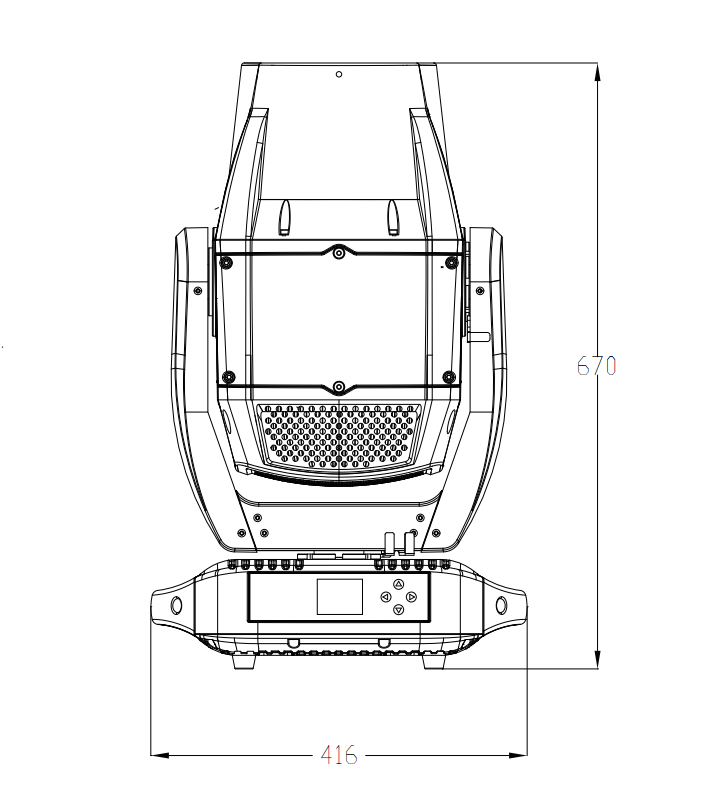

Size
416x356x670mm
Weight
34kg
Casing
Flame-retardant plastic（V0） Die-cast aluminum
Electrical Specs
Voltage
AC100-240V,50/60Hz
Max. Power
560W
Power Connection
Power in
Signal socker
3pin or 5pin in and out， RJ45 in and out
Work Environment
Ambient Temp
-20℃-45℃
IP Rated
IP66
Certification
Certification
CE、MET
