PHOTOS
VIDEOS
ILLUMINANCE

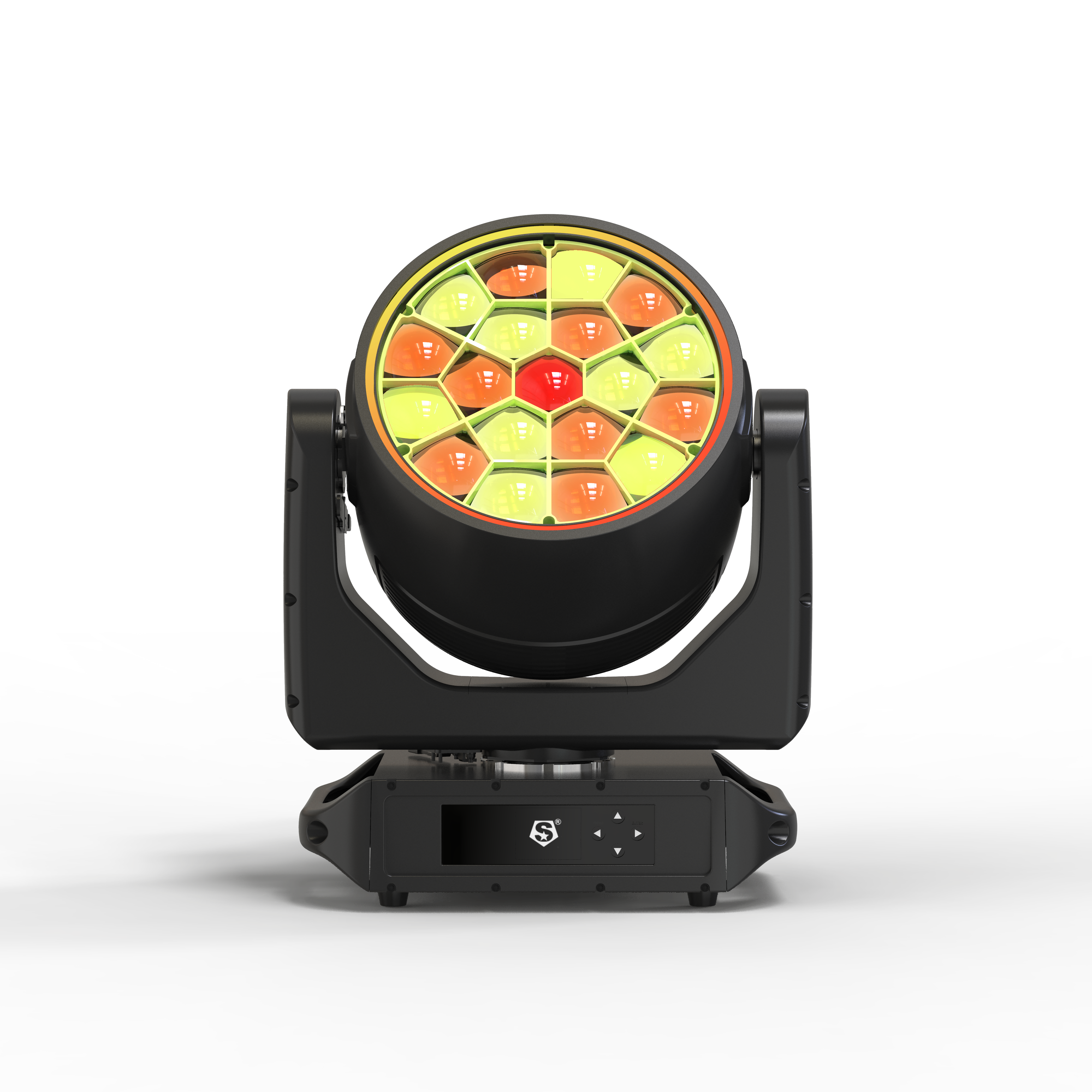

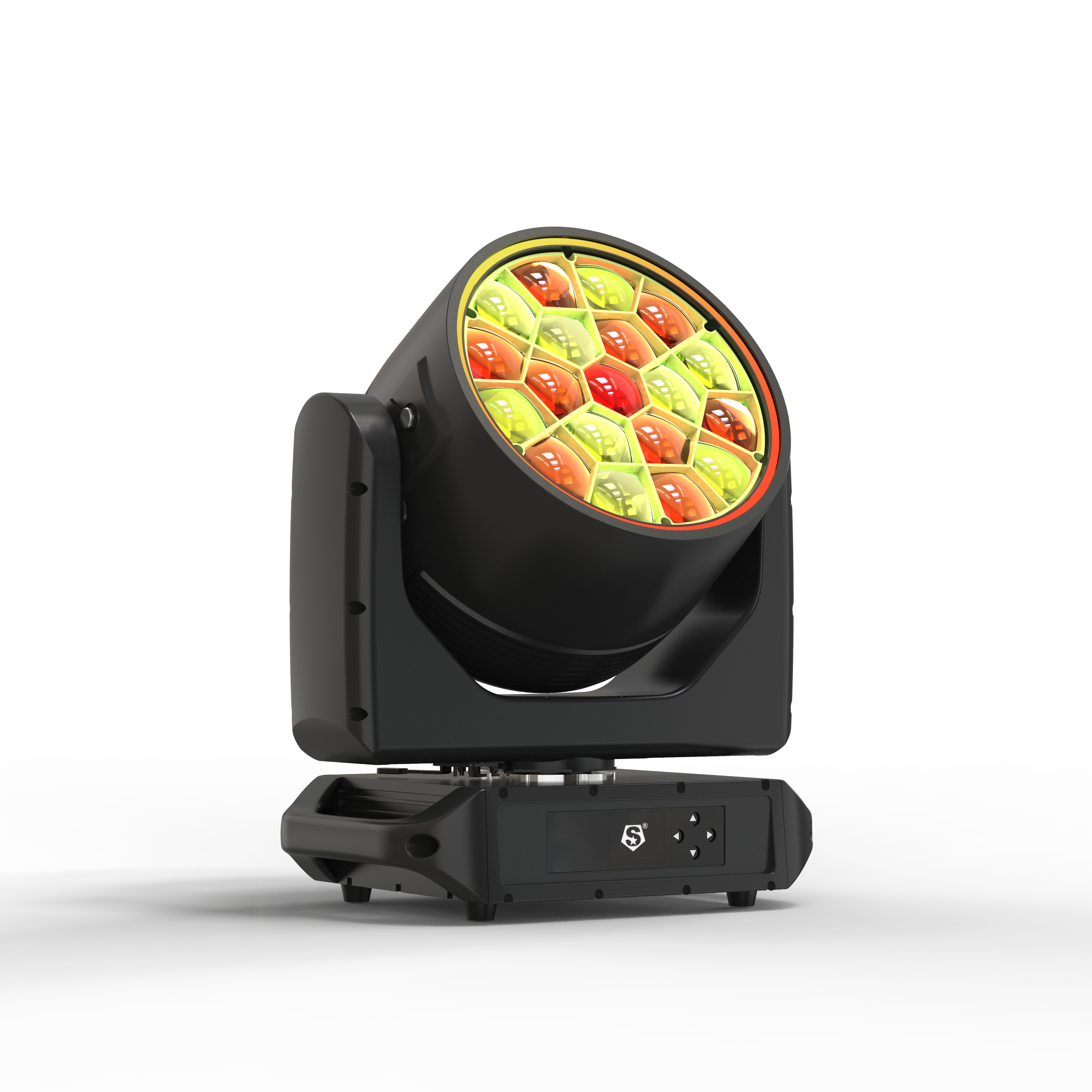

NW8

NW8 is a new genertation of excellent moving wash with RGBL LED source, optical Angle 3.5-60°, equipped with HSIC intelligent color mixing system, can quickly modulate any desired color, can be continuously adjusted between 1800K to 10000K, pixel control function, can achieve gorgeous dynamic effect, high-precision and high-tech Digital Color Processing System, it is an ideal choice for concerts, touring show, events, as well as rental markets.
DETAILS

Optical system

Light source
19*50W RGBL
Angle
3.5-60°
LED Ring
RGB Ring
Luminous flux
13000lm

Control System

Pan/Tilt rotation
630°/220°(8-16bit)
Dimmer
0-100% 24Bit
Cooling
Forced Convection
Control
DMX512、RDM、ARTNET、SACN、 BT、NFC、W-DMX(optional)

Electrical Specs

Voltage
100-240VAC,50/60Hz
Max.Power
1000W
Power Connection
Seetronic power input and output
Signal socker
3pin or 5pin in and out, RJ45 in and out,USB-C

Appearance

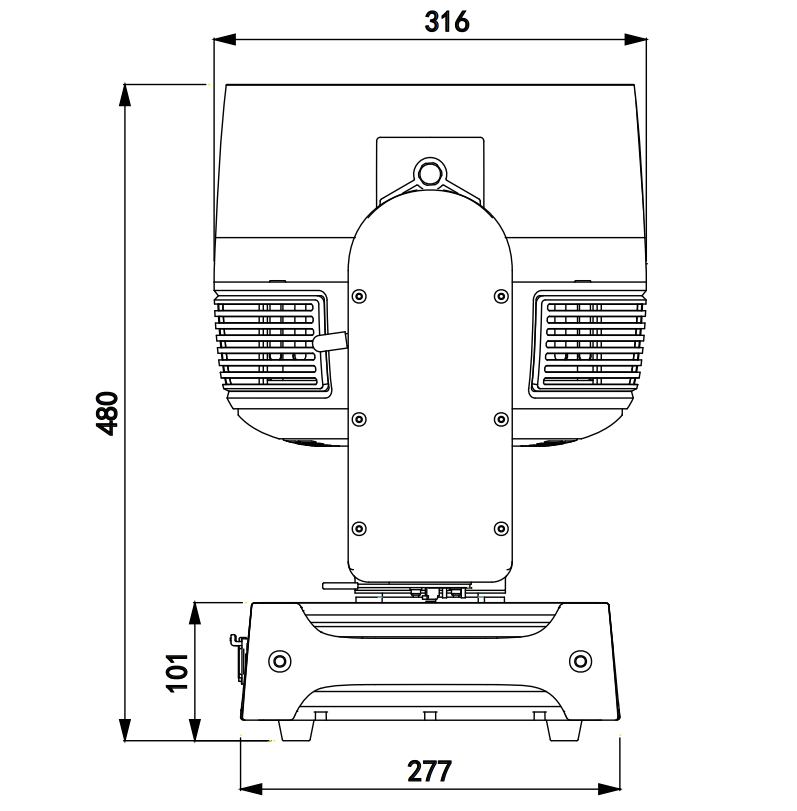

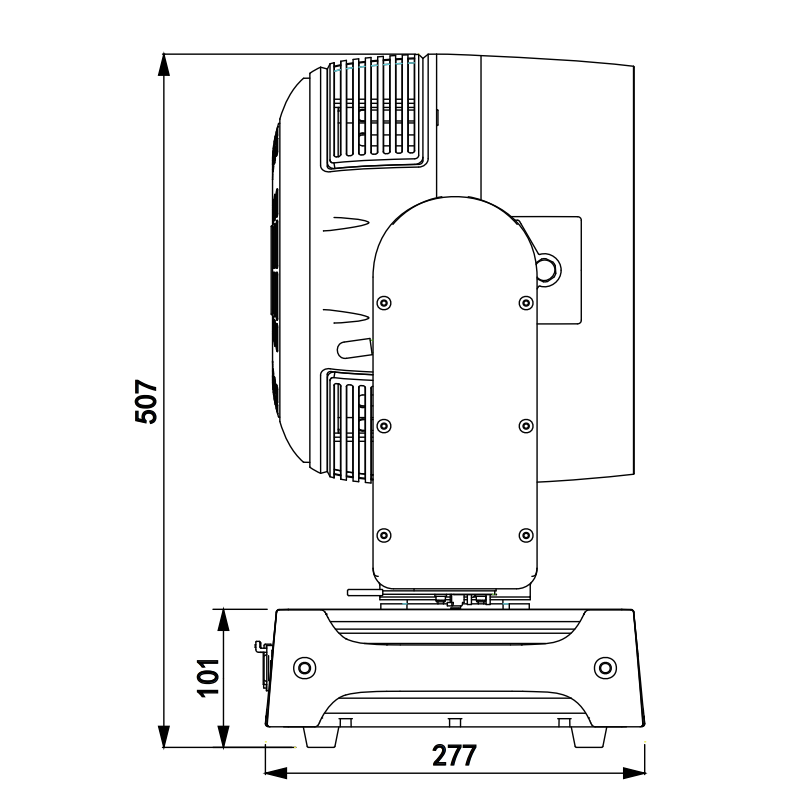

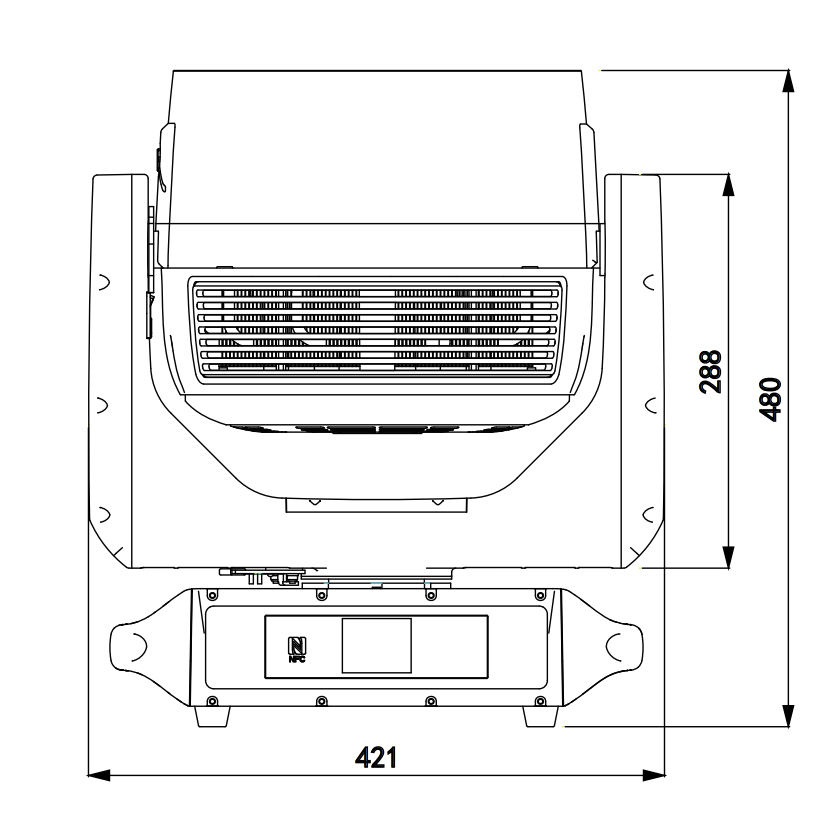

Size
421x316x480mm
Weight
21.6KG
Casing
Magnalium and Die-cast
Color
Black
Certification
CE

Work Environment

Ambient Temp
-20℃-45℃
IP Rated
IP66

DOWNLOAD

leaflet

NEPTUNE NW8 2024-10-17
DOWNLOAD

user manual

NEPTUNE NW8 WASH 2024-10-17
DOWNLOAD

AVOLITES

NW8 2024-10-17
DOWNLOAD

MA2

NW8-SS9681XLEM MA2 2024-11-14
DOWNLOAD

Depence2

Neptune NW8-SS9681XLEM 2024-04-28
DOWNLOAD
