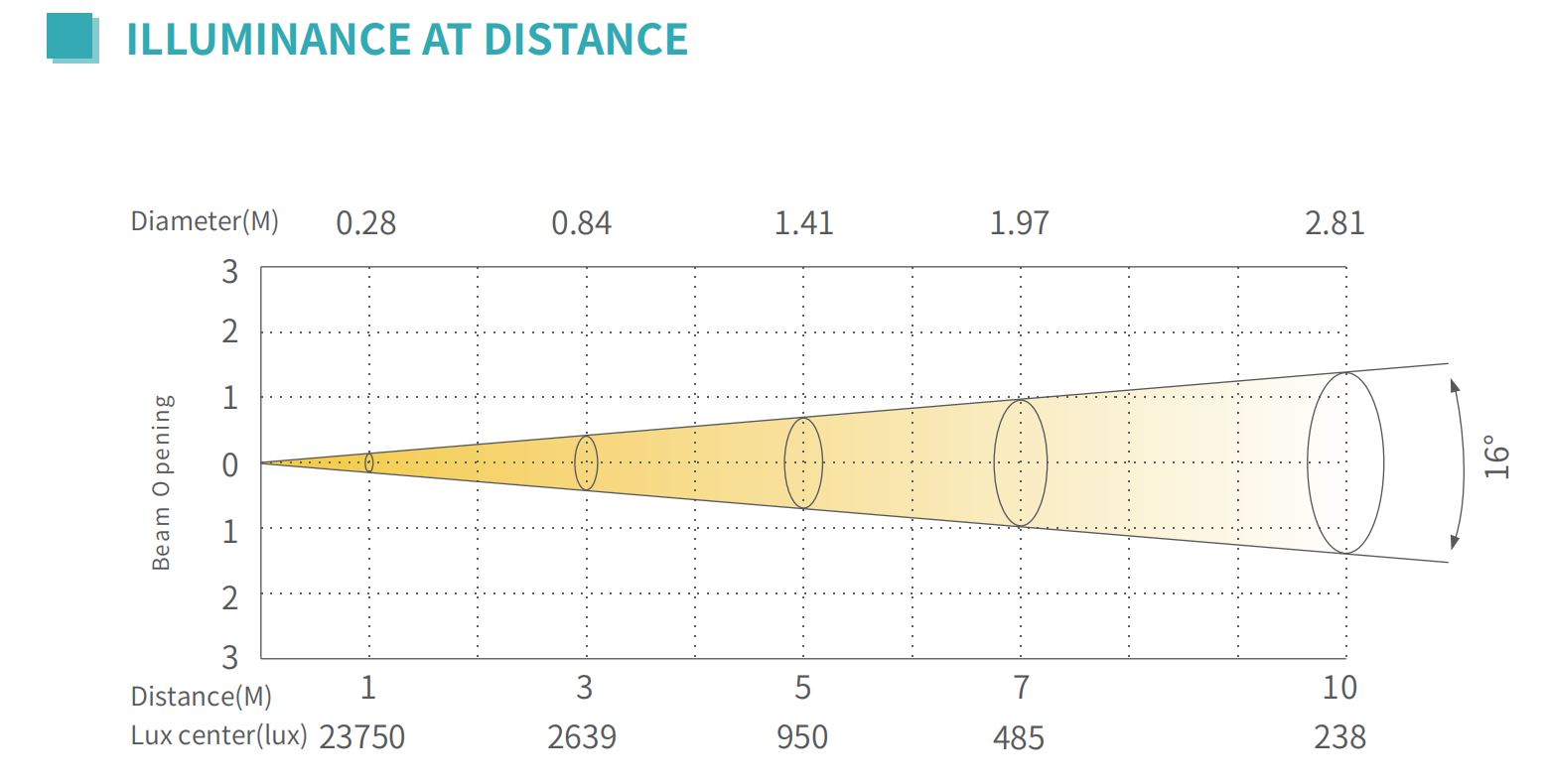

ILLUMINANCE
T4

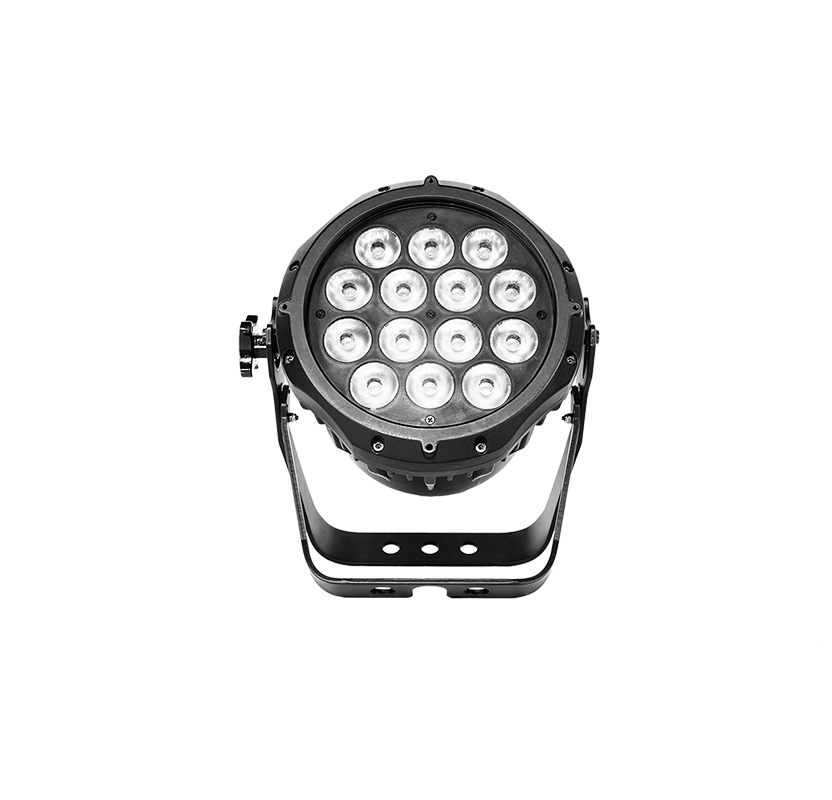

Following the great successful legend of CAM2/EMZ, CAM3/EMZ has been upgraded to RGBW LEDs, not only help to enrich the color capacities, but also the overall output increase at least 3O%. With IP power socket and DMX XLR IP65, CAM3/EMZ is designed for professional rental / Event, temporary outdoor installation.CAM3/ETZ ,adapting the CAM2/ETZ classic cable whip design,and upgraded the light engine by adding the white LED,not only help to enrich the color capacities,but also
the overall output increase at least 30%.It is applicable for indoor/outdoor installation , and medium / small - s caled rental/event/shows.
DETAILS
Optical system
Light source
14x4W(RGBW)
Angle
16°
Control System
Dimmer
0-100% 16Bit
Cooling
Direct Convection
Control
DMX512、RDM
Display
On board Control，0-20Hz Strobe，Custom Mode
Con Personality
HSIC(7CHS)、SSP(7CHS)、TOUR(11CHS)、TR16(16CHS)
Appearance

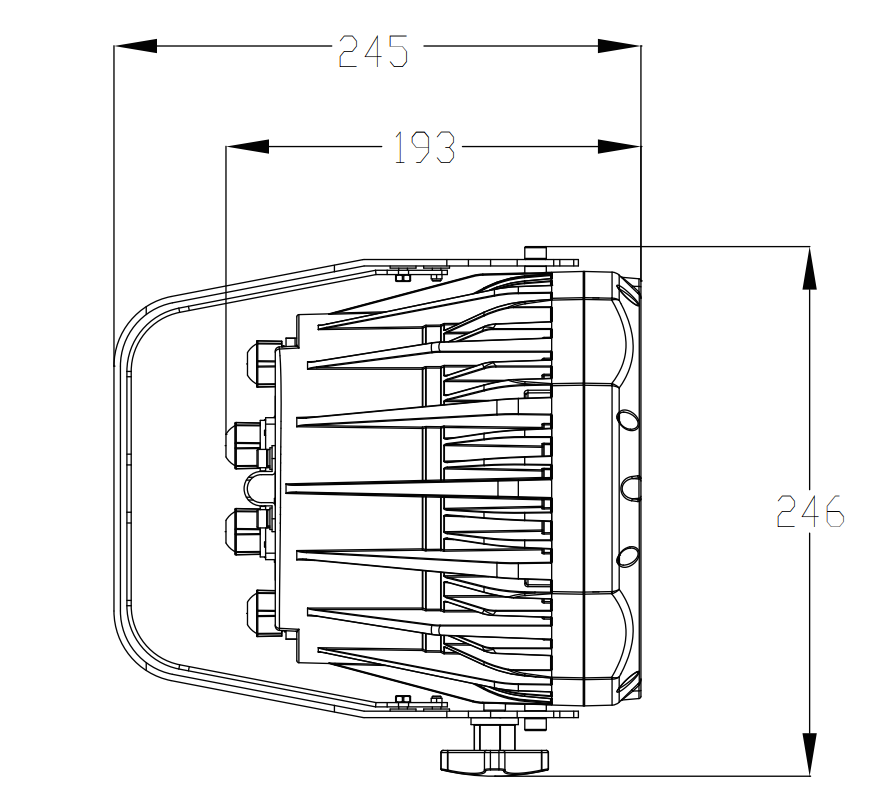

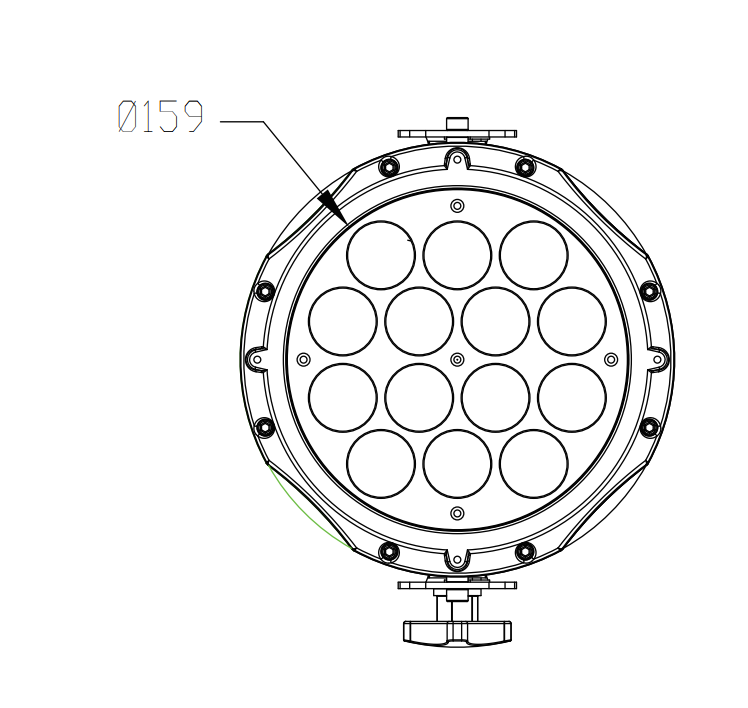

Size
245x246x202mm
Weight
4.8kg
Casing
Die-cast aluminum
Electrical Specs
Voltage
100-240VAC,50/60Hz
Max. Power
65W
Power Connection
Power in and out
DMX XLR
DMX in and out
Work Environment
Ambient Temp
-20℃-45℃
IP Rated

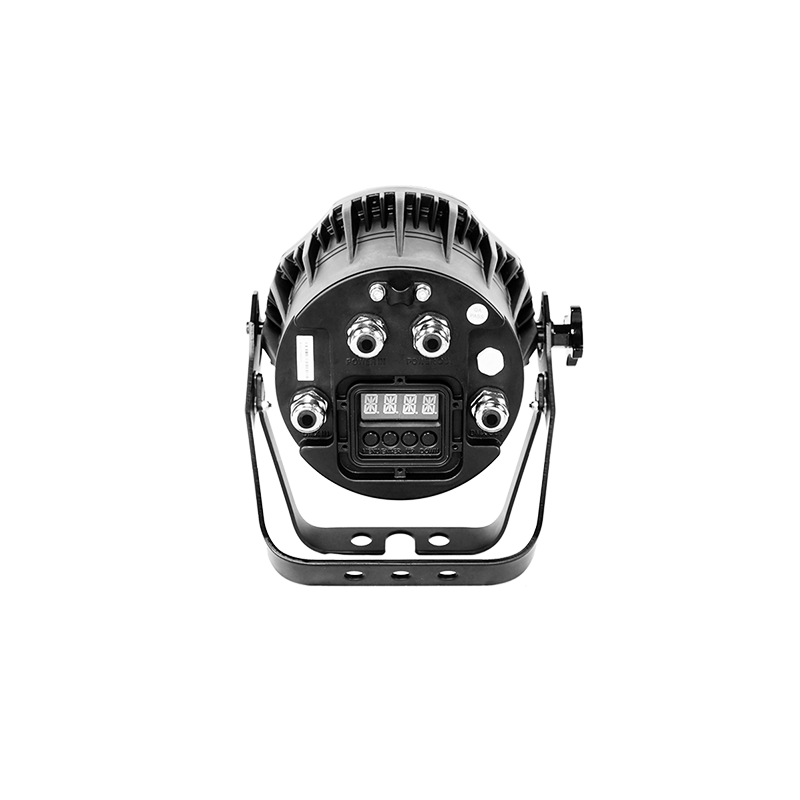

SS358XCEM IP POWER Socket，IP DMX XLR，IP65, SS358XCE-Dry Location， SS358XCET-Dry/Damp/WetLocation/IP66 (with LED display cover installed)
Certification
Certification
CE、MET
