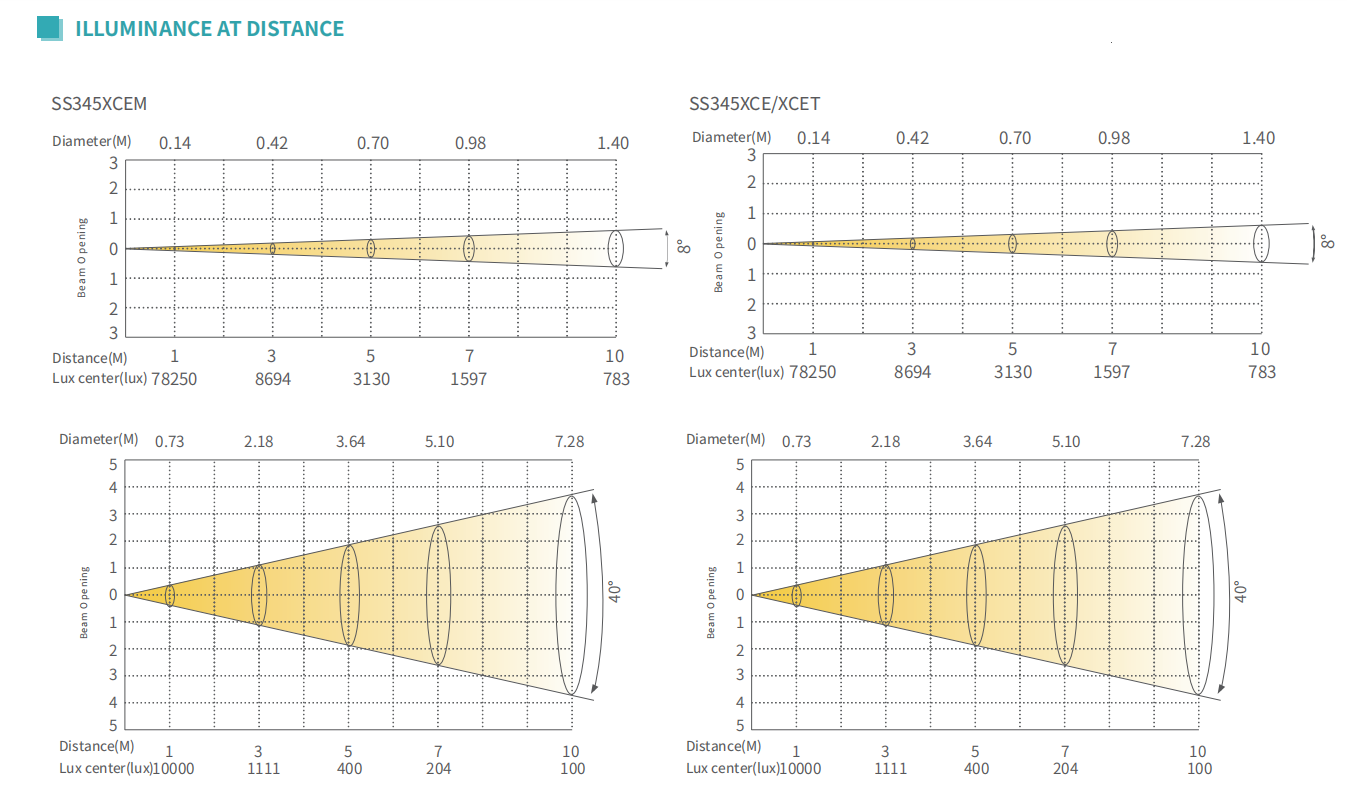

ILLUMINANCE
T7
SOLAR ze/ETZ MK4 with the successes of the 1st Generation, we upgrade it with more efficiency led resource, brightness is 15% higher than the G1,with 8°-40° Electronic zoom system canbe controlled smooth and accurate.SOLAR ze/ETZ MK4 use 4 in 1 led, more than 1600lx. SOLAR
ze/ETZ MK4 is design for the artisticperformance, theater, stage entertainment
DETAILS
Optical system
Light source
7x20W (RGBW)
Angle
8°-40°
Control System
Dimmer
0-100% 16Bit
Cooling
Direct Convection
Control
DMX512、RDM
Display
On board Control,0-20Hz Strobe， Sustom Mode
Con Personality
HSIC(8CHS)、SSP(8CHS)、TOUR（12CHS）、TR16(17CHS)
Appearance
Size

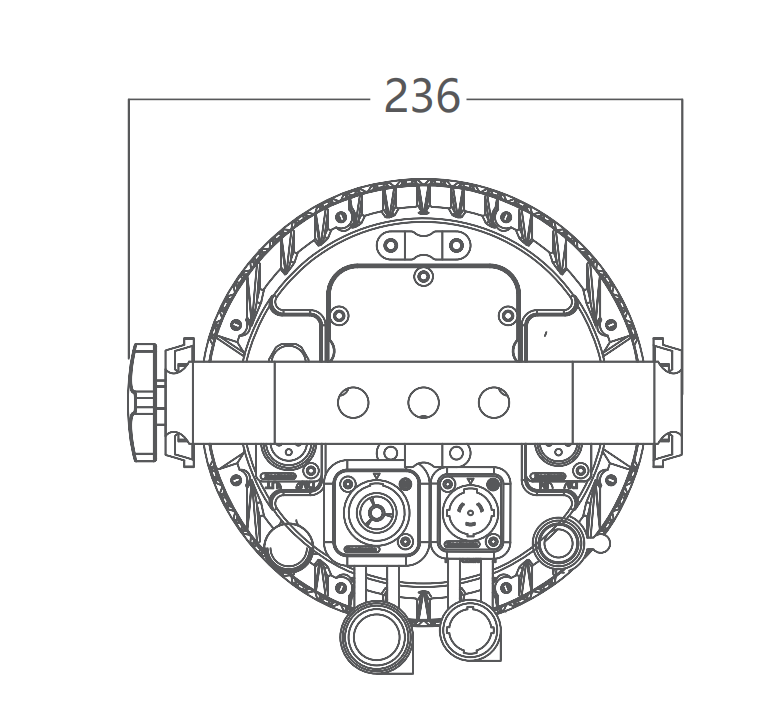

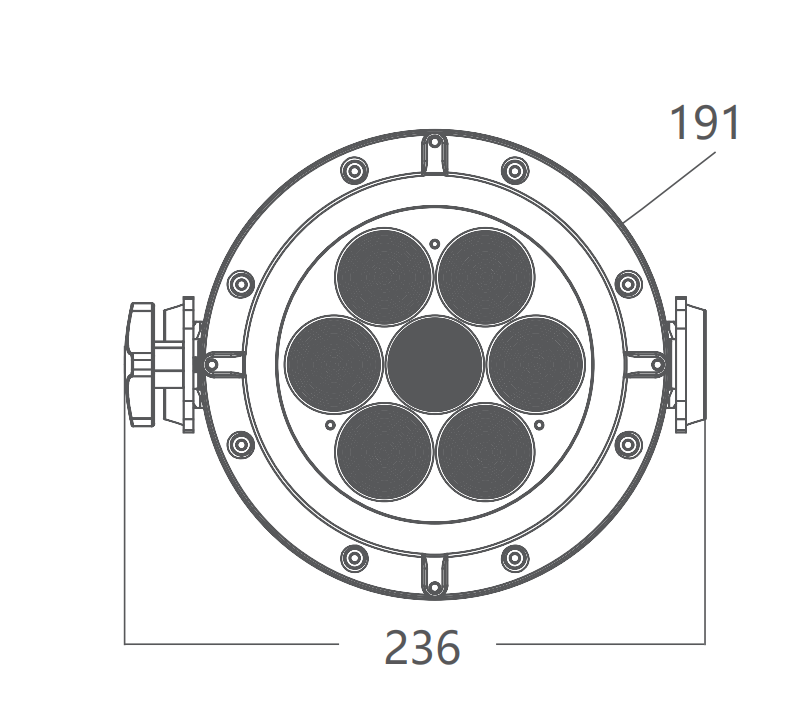

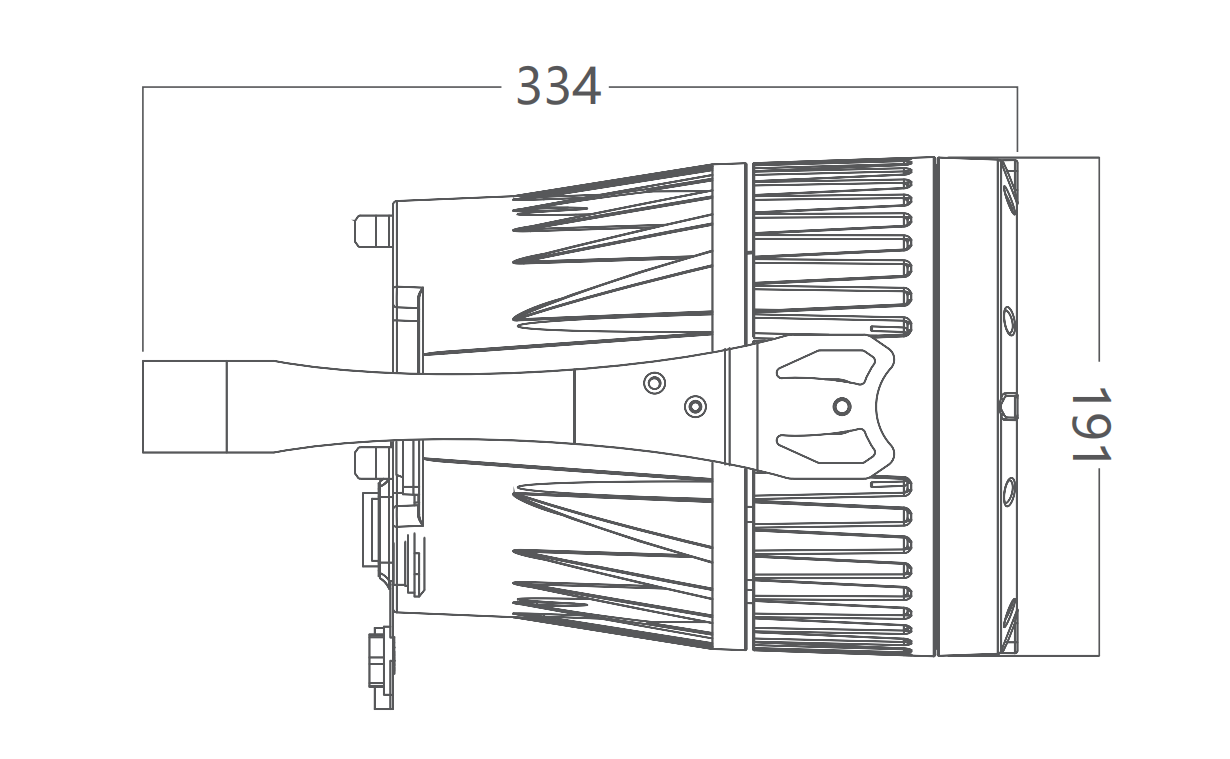

334x191x236mm (SS345XCEM) 355x191x236mm (SS345XCE indoor) 325x283x236mm (SS345XCET outdoor)
Weight
6.6kg
Casing
Die-cast aluminum
Electrical Specs
Voltage
100-240VAC,50/60Hz
Max. Power
128W
Power Connection
Power in and out
DMX XLR
DMX in and out
Work Environment
Ambient Temp
-20℃-45℃
IP Rated
IP65 (SS345XCEM)，SS345XCE-Dry Location， SS345XCET-Dry/Damp/Wet Location/IP66 (with LED display cover installed)
Certification
Certification
CE、MET
