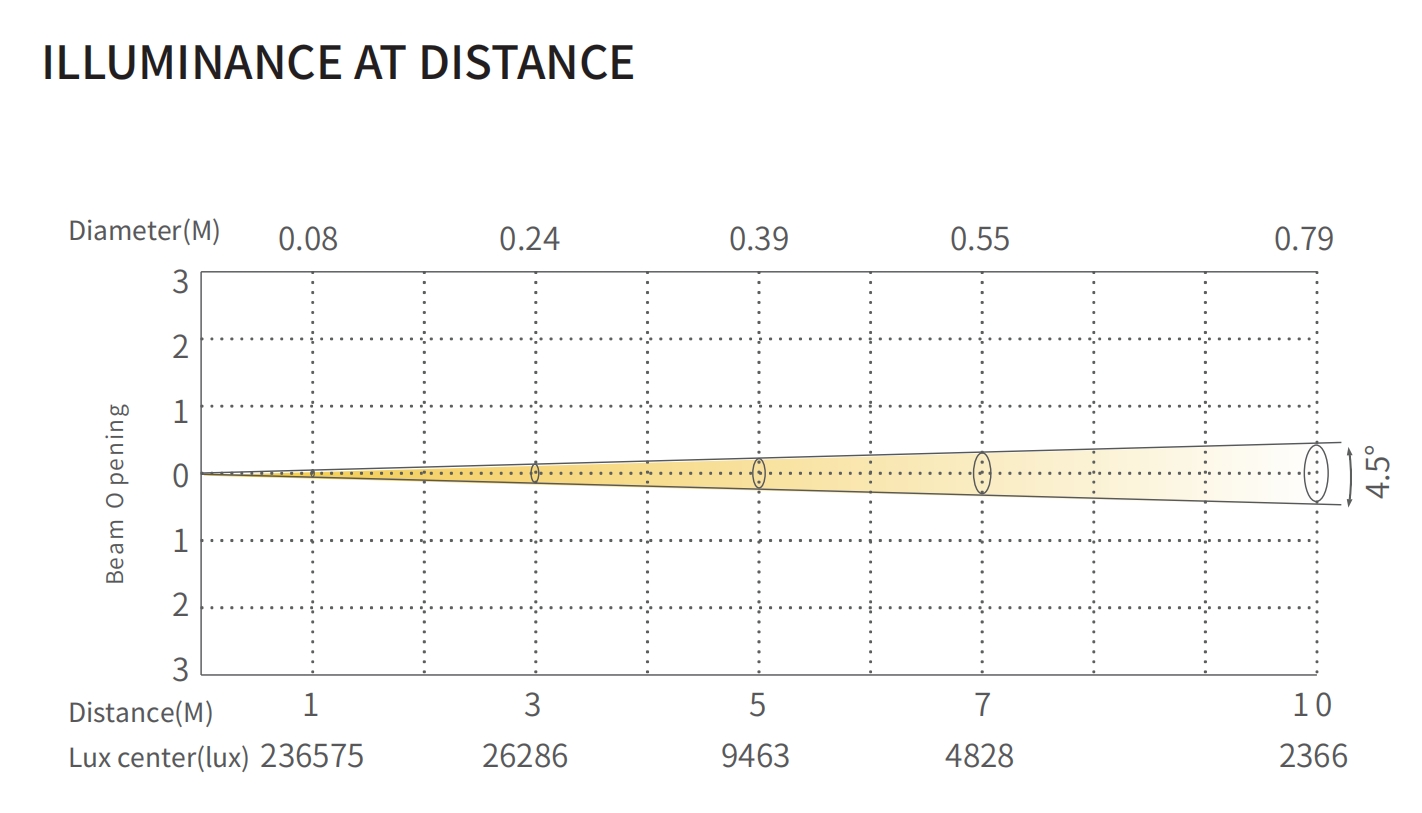

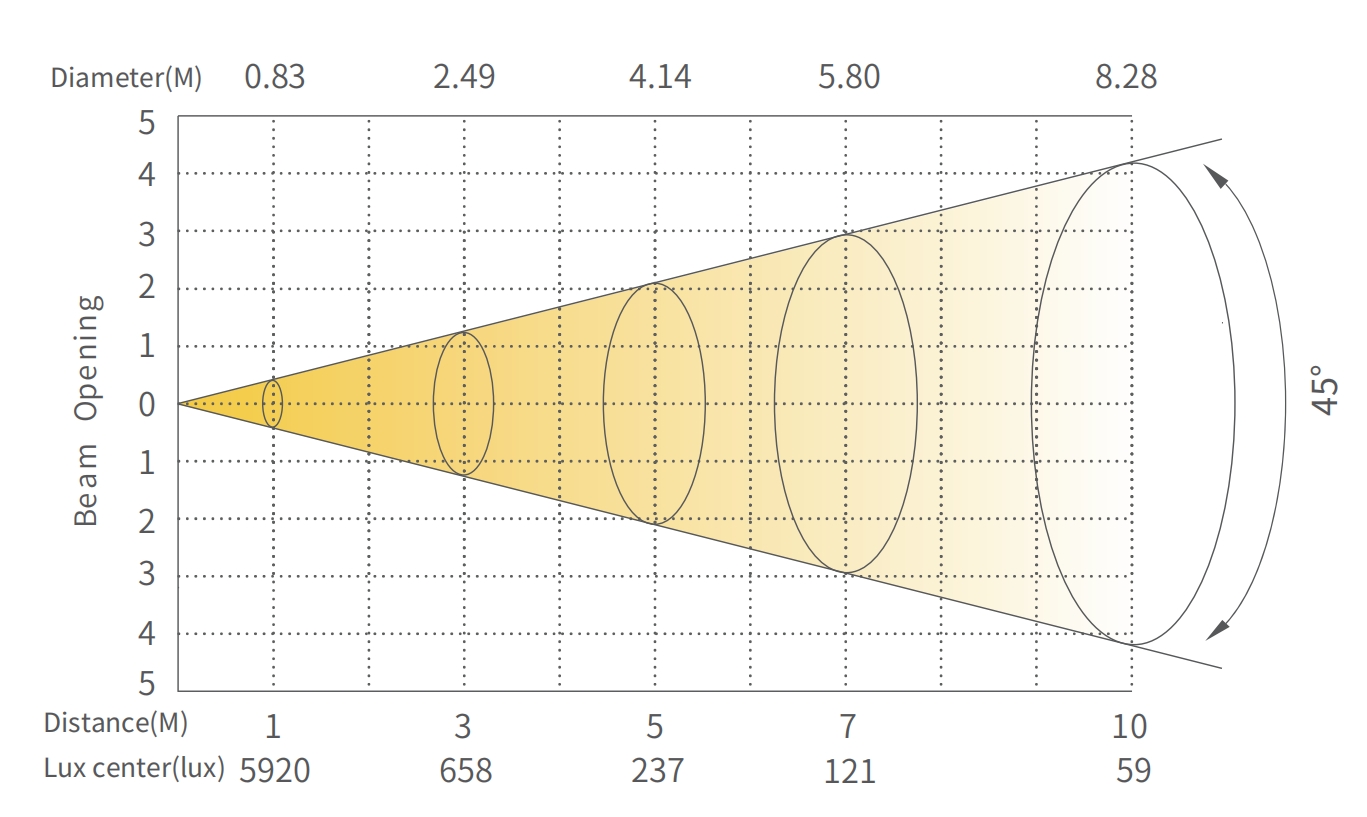

ILLUMINANCE
T9
The LED PARCAN fashion now back to classic! The SUPERNOVA adopt the high efficient LED module,applying with advanced HSIC color mixing system,intel-ligent color management. Unique optical design, always one color out of lens, no more color dot! With smart IP65 structure, the SUPERNOVA is ideal for professional rental, TV, studio, theatre,opera, medium to large event application.
DETAILS
Optical system
Light source
3x60W (RGBW)
Angle
4.5°-45°
Control System
Dimmer
0-100% 16Bit
Cooling
Forced Convection
Control
DMX512、RDM
Display
On board Control，Custom Mode，0-25Hz Strobe
Con Personality
HSIC/9CHS,SSP/9CHS,TOUR/12CHS,TR16/17CHS
Appearance

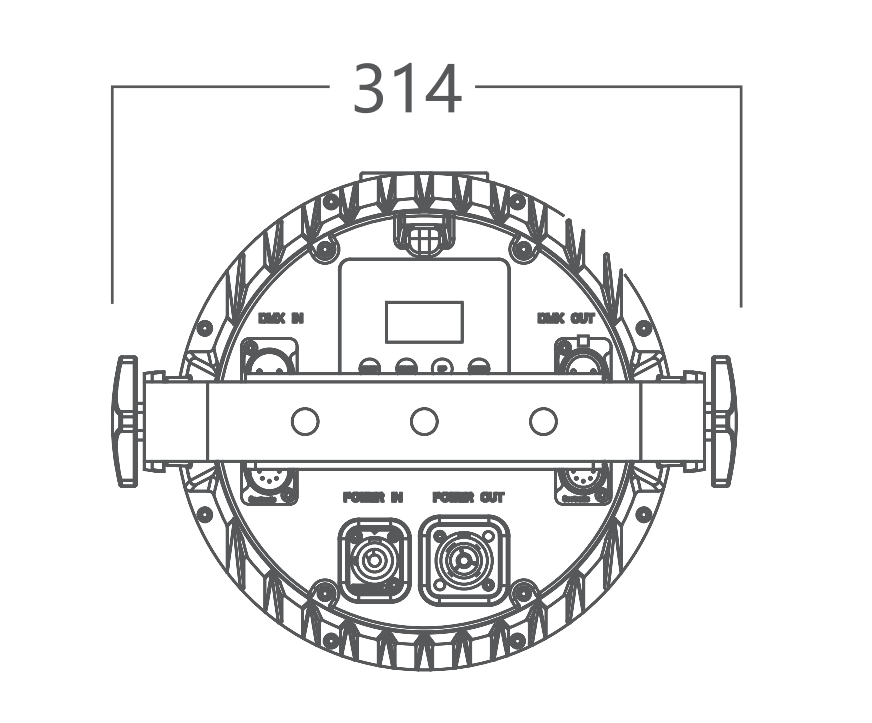

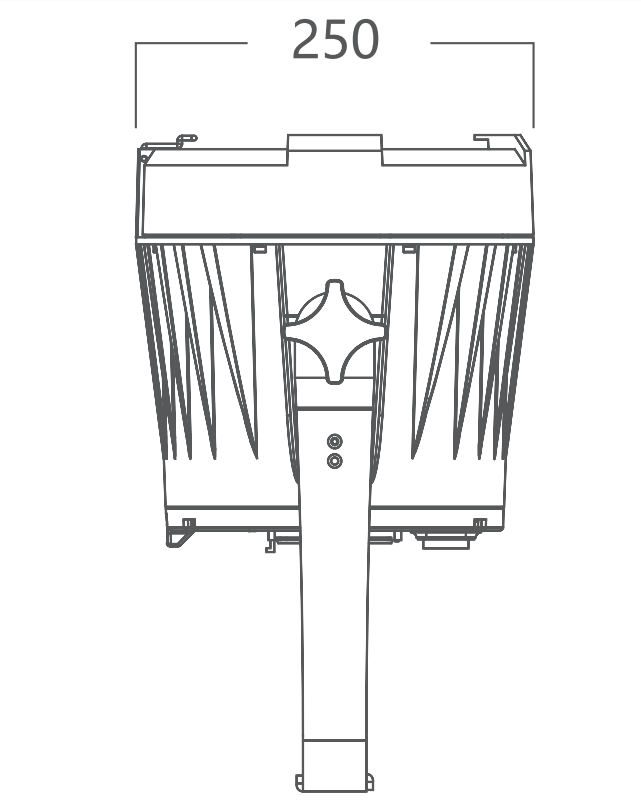

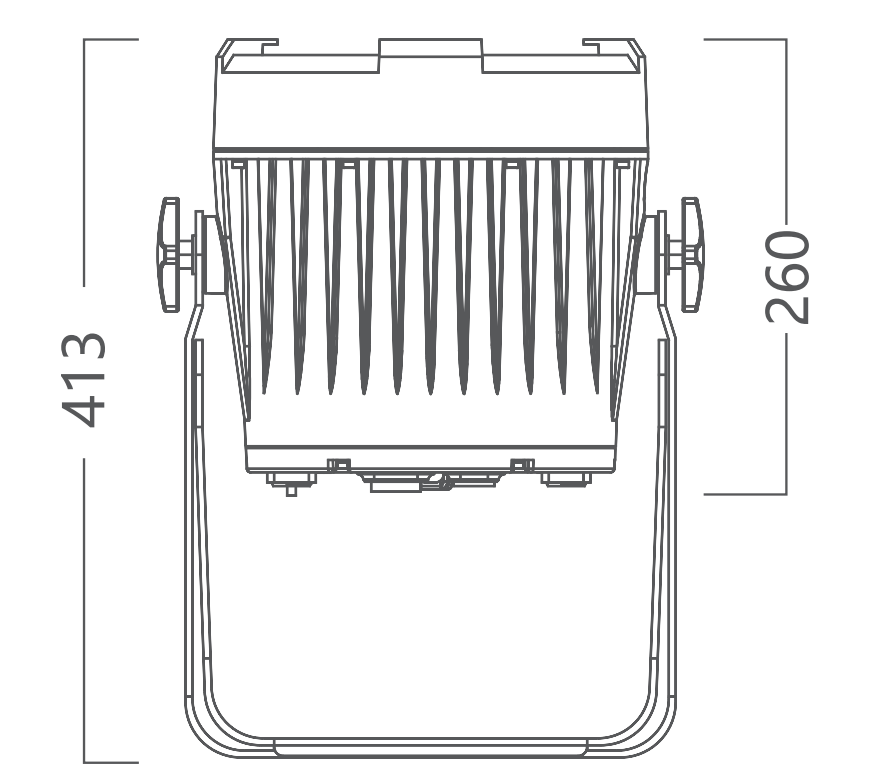

Size
413x314x250mm
Weight
9.1kg
Casing
Die-cast aluminum
Electrical Specs
Voltage
100-240VAC,50/60Hz
Max. Power
180W
Power Connection
Power in and out
DMX XLR
DMX in and out
Work Environment
Ambient Temp
-20℃-45℃
IP Rated
SS352XCEM: IP65 SS352XCET: IP66
Certification
Certification
CE、MET
