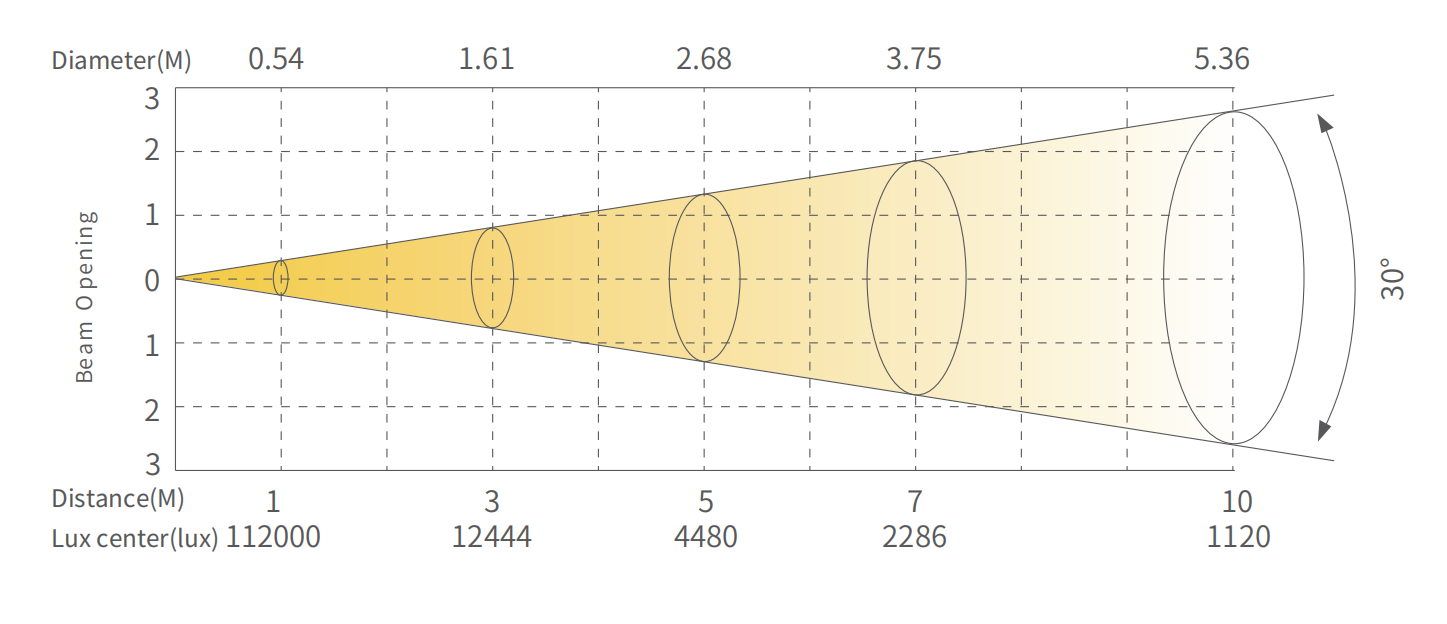

ILLUMINANCE
T1

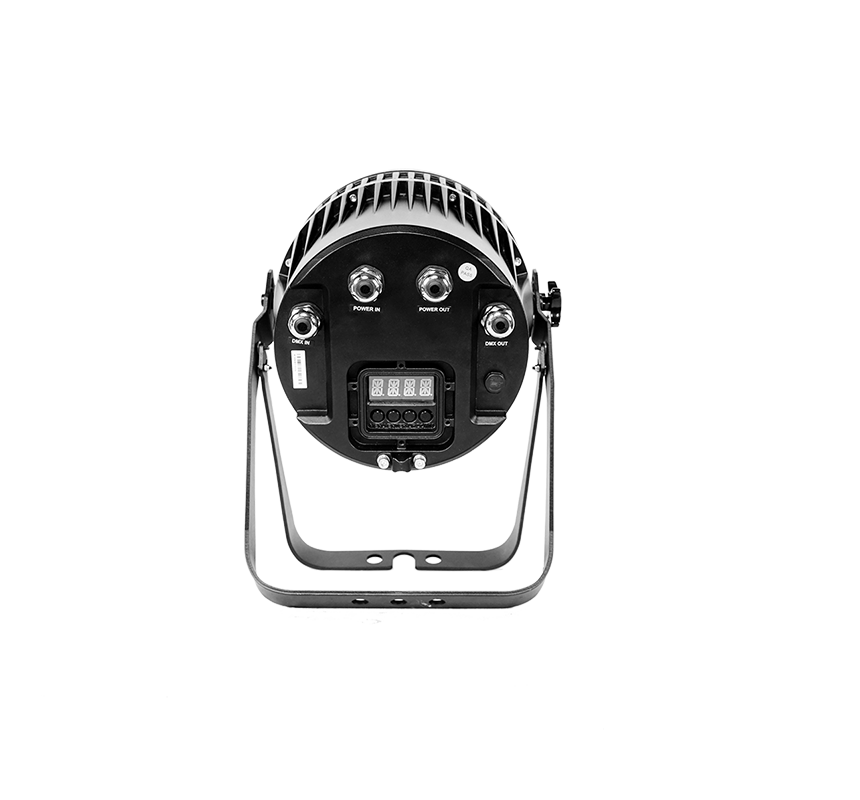

The SUPER SOLAR ze/ETZ MK4 with the successes of the 1st Generation, we upgrade it with more efficiency led resource, brightness is 30% higher than the G1,the optical angle range of SUPER SOLAR ze/ETZ MK4 is 8°-40°. With a brand-new electronic zoom system, it shows high efficient and smooth zoom. Excellent color mixing creates high quality light, without any extra spill light. With its design of IP66, SUPER SOLAR ze/ETZ MK4 is the ideal lighting for small/large- scaled show/event.
DETAILS
Optical system
Light source
14x20W (RGBW)
Angle
8°-40°
Control System
Dimmer
0-100% 16Bit
Cooling
Direct Convection
Control
DMX512、RDM
Display
On board Control，0-20Hz Strobe，Custom Mode
Con Personality
HSIC（8CHS）、SSP（8CHS）、TOUR（12CHS）、TR16（17CHS）
Appearance

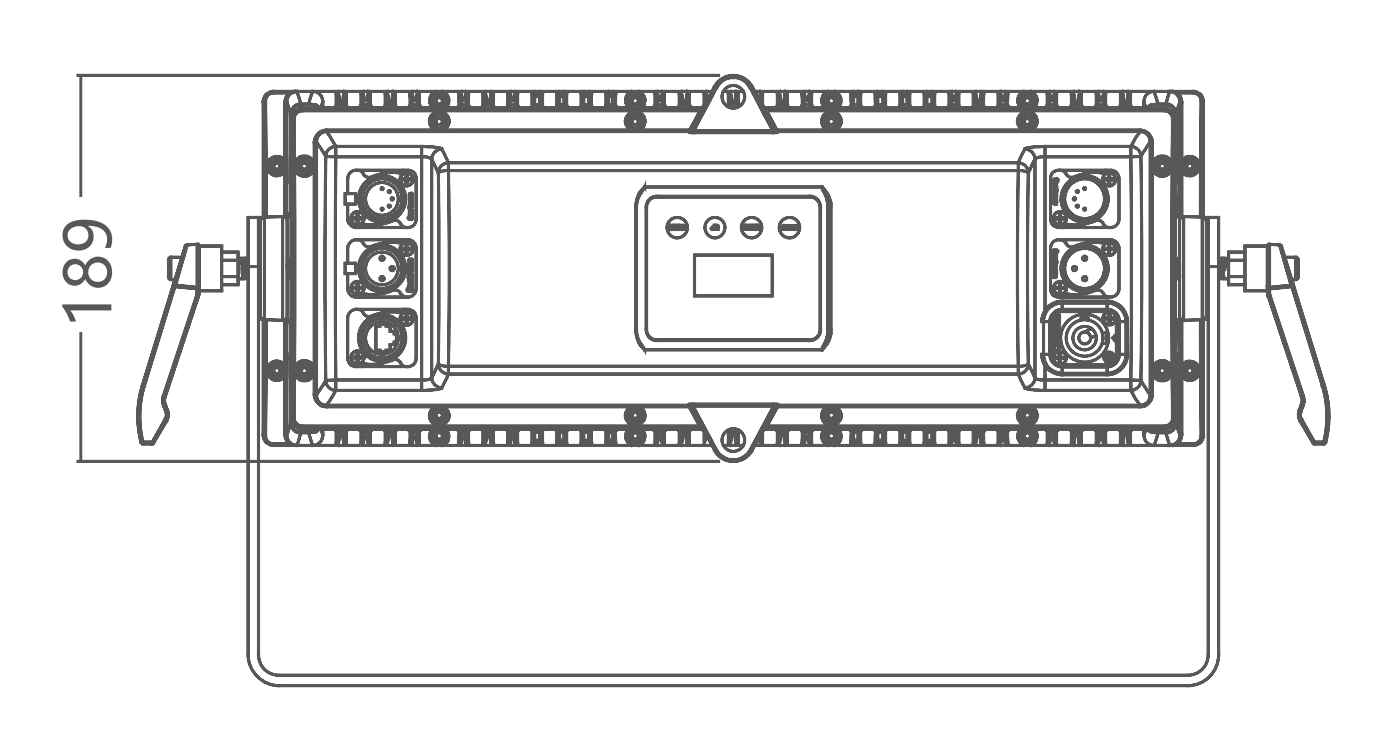

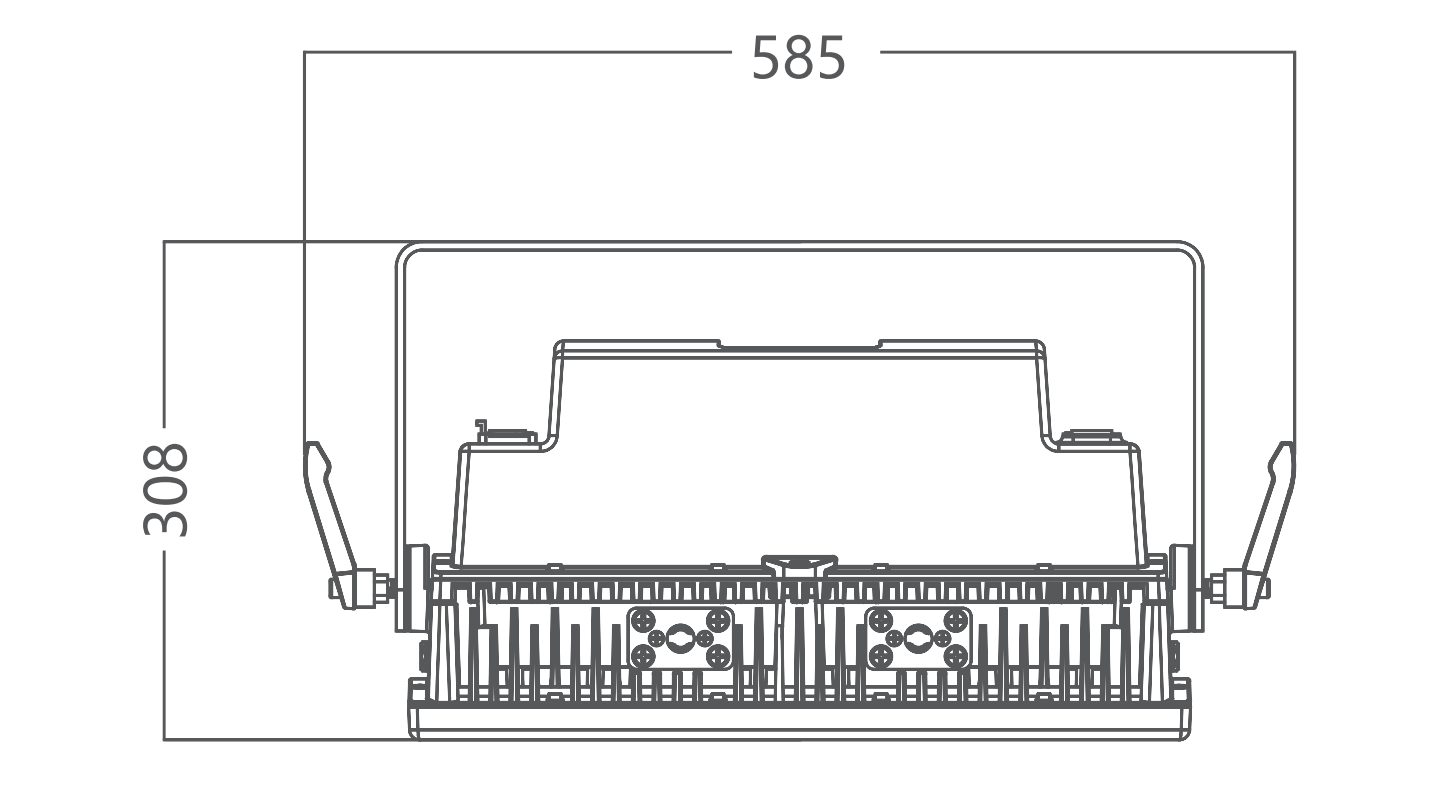

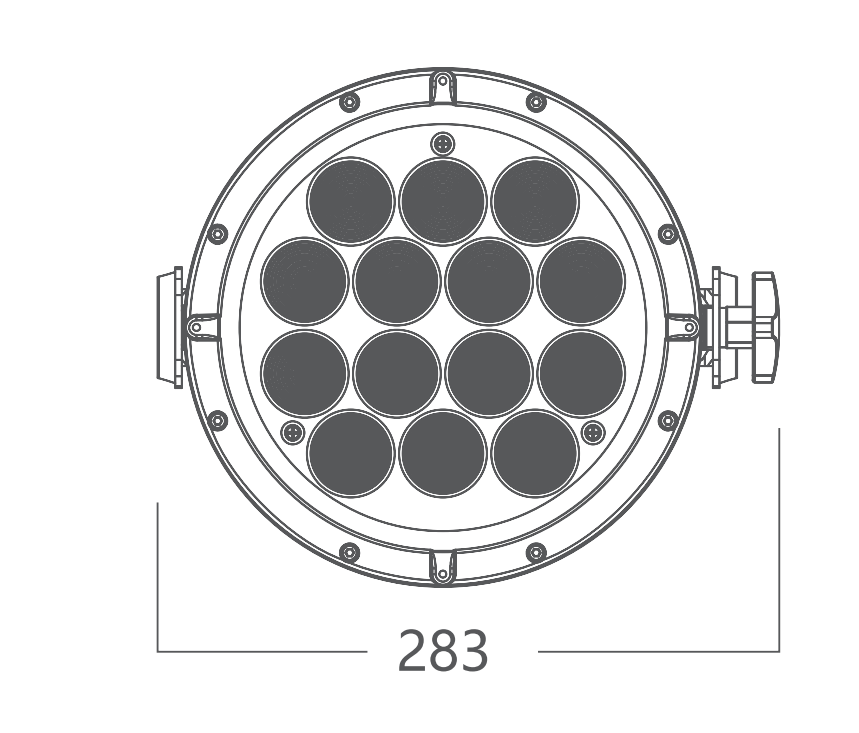

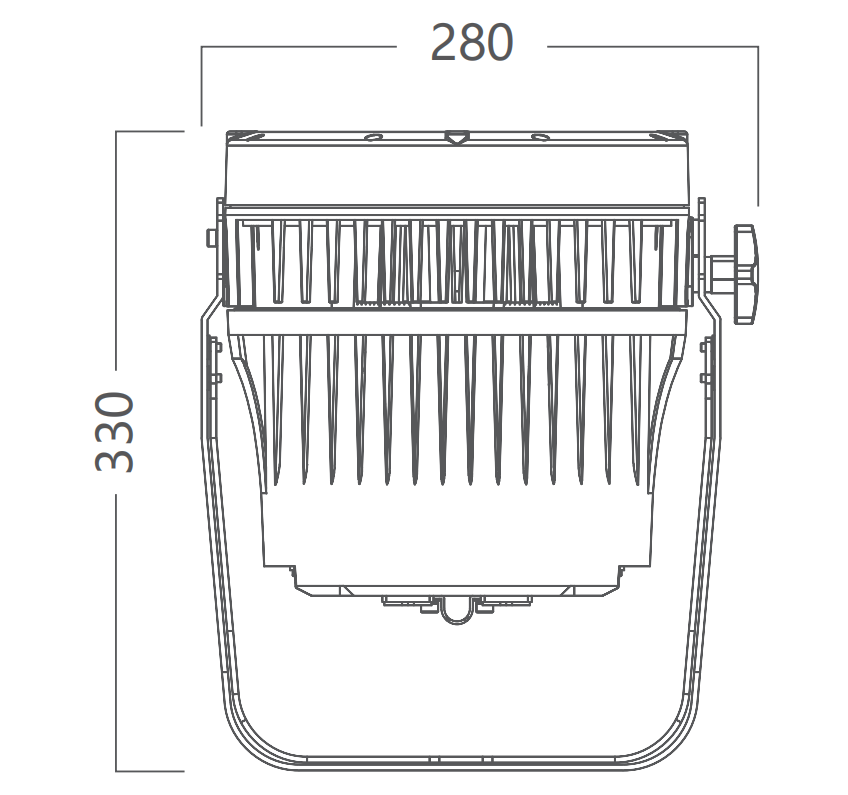

Size
330x283x236mm (SS342XCEM) 375x283x236mm（SS342XCE) 325x283x236mm（SS342XCET)
Weight
8.6kg
Casing
Die-cast aluminum
Electrical Specs
Voltage
100-240VAC,50/60Hz
Max. Power
235W
Power Connection
Power in and out
DMX XLR
DMX in and out
Work Environment
Ambient Temp
-20℃-45℃
IP Rated
SS342XCE-Dry Location，IP20； IP POWER Socket，IP DMX XLR，SS342XCEM，IP65； SS342XCET-Dry/Damp/Wet Location/IP66 (with LED display cover installed)
Certification
Certification
CE、MET
