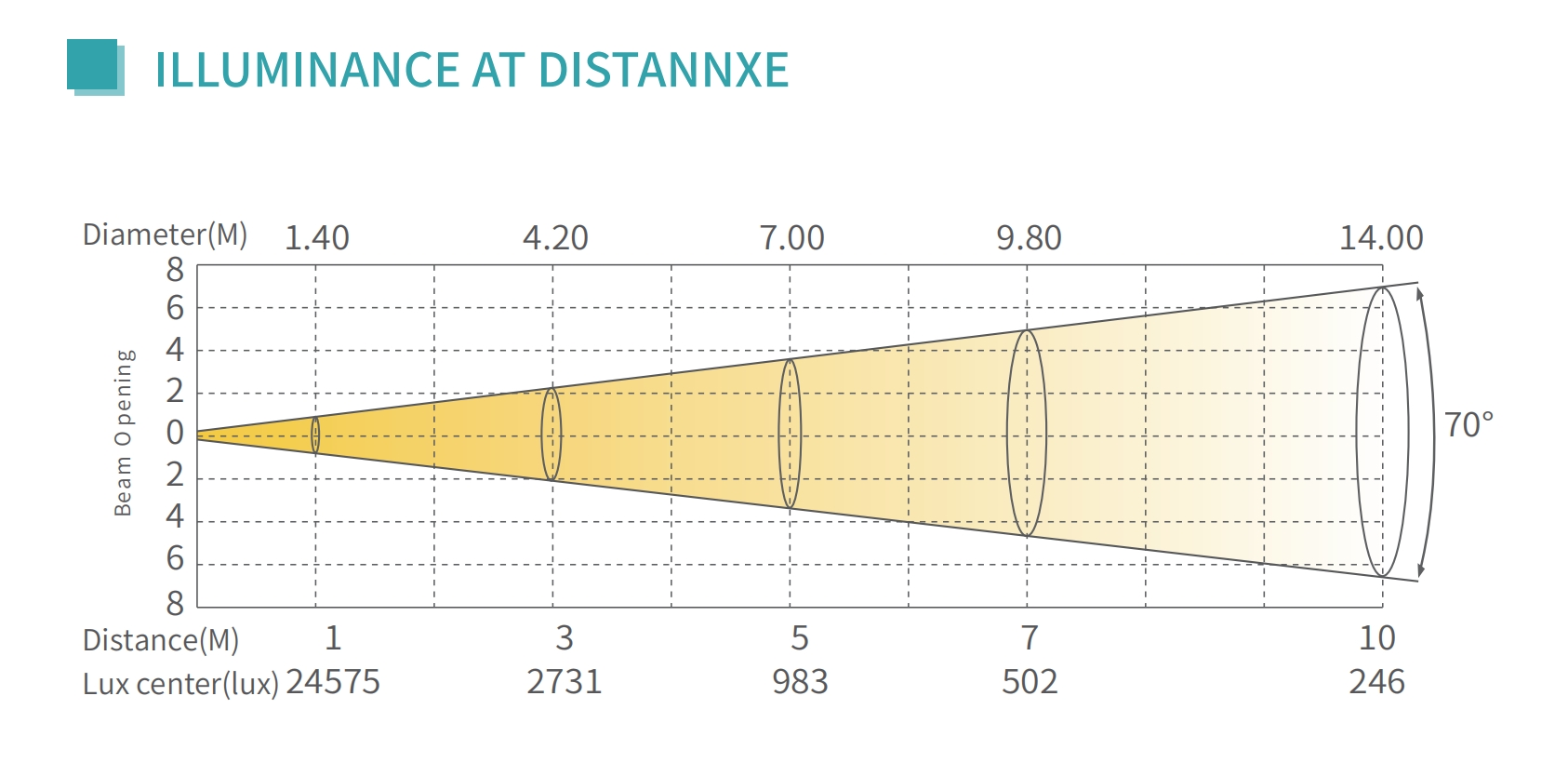

ILLUMINANCE
TP3
Tourz E-lite adopts 880pcs warm and cold white Leds, uniform color mixing, wide coverage; CCT 2700-6500K linear adjustment, CRI>98, can perfectly present the color temperature of the fixture itself; Ultra-quiet waterproof fan is used for efficient heat dissipation, low noise, compact size and lightweight to achieve the ultimate. It is the perfect choice for exhibition center,conference hall, show and other performance places.
DETAILS
Optical system
Light source
440pcsxWW,440pcsxCW
Beam angle
70°
Field angle
120°
CRI
98
CCT
2700-6500K
Control System
Dimmer
0-100% 16Bit
Cooling
Forced Convection
Control
DMX512、RDM
Display
On board Control
Con Personality
UNO(1CHS)、VW.D(3CHS)、VW.F(6CHS)、STD.P(9CHSS)
Appearance

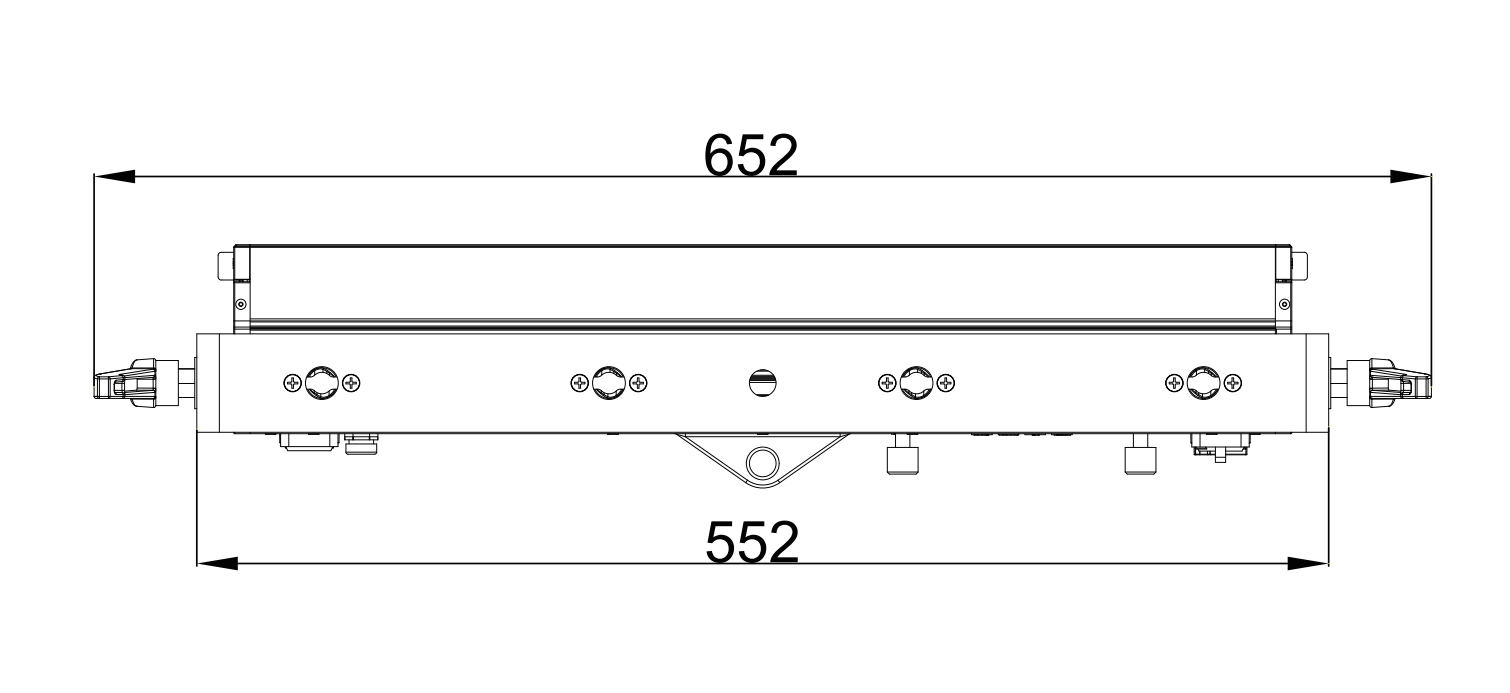

Size
652x119x348mm
Weight
11.5kg
Casing
Extruded aluminum
Electrical Specs
Voltage
100-240VAC,50/60Hz
Max. Power
494W
Power Connection
Power in and out
Signal socker
3pin 5pin in and out
Work Environment
Ambient Temp
-20℃-45℃
IP Rated
IP65
Certification
Certification
CE
