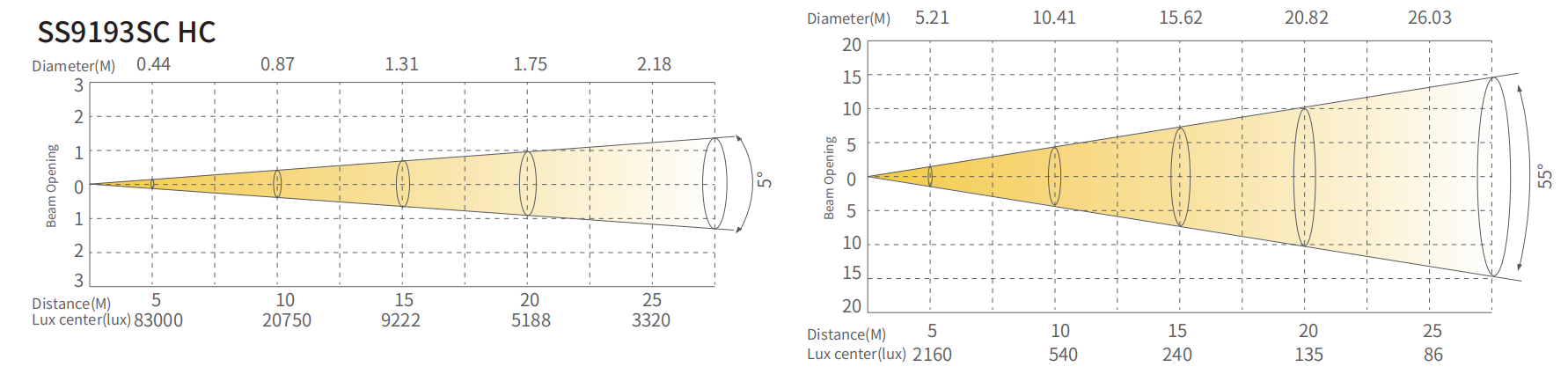

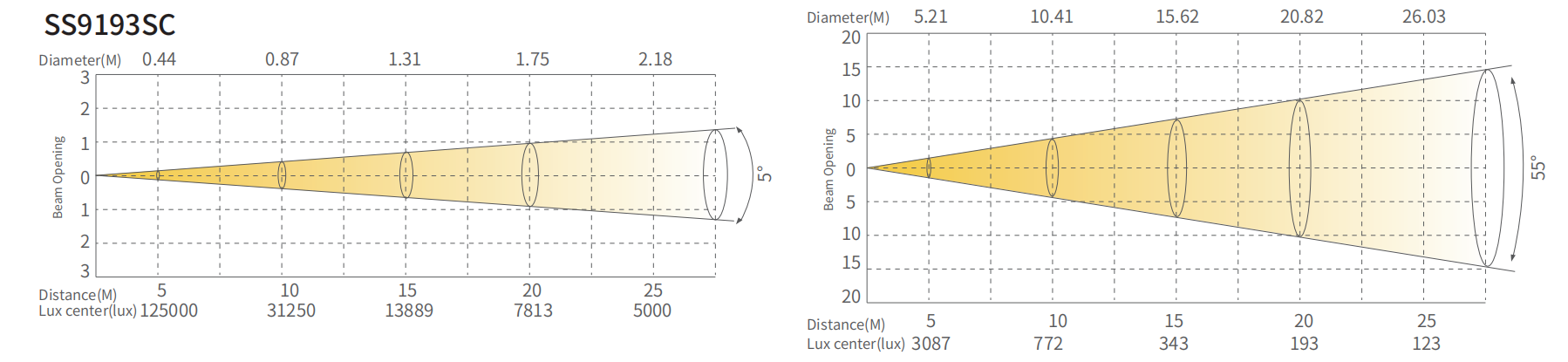

ILLUMINANCE
T16

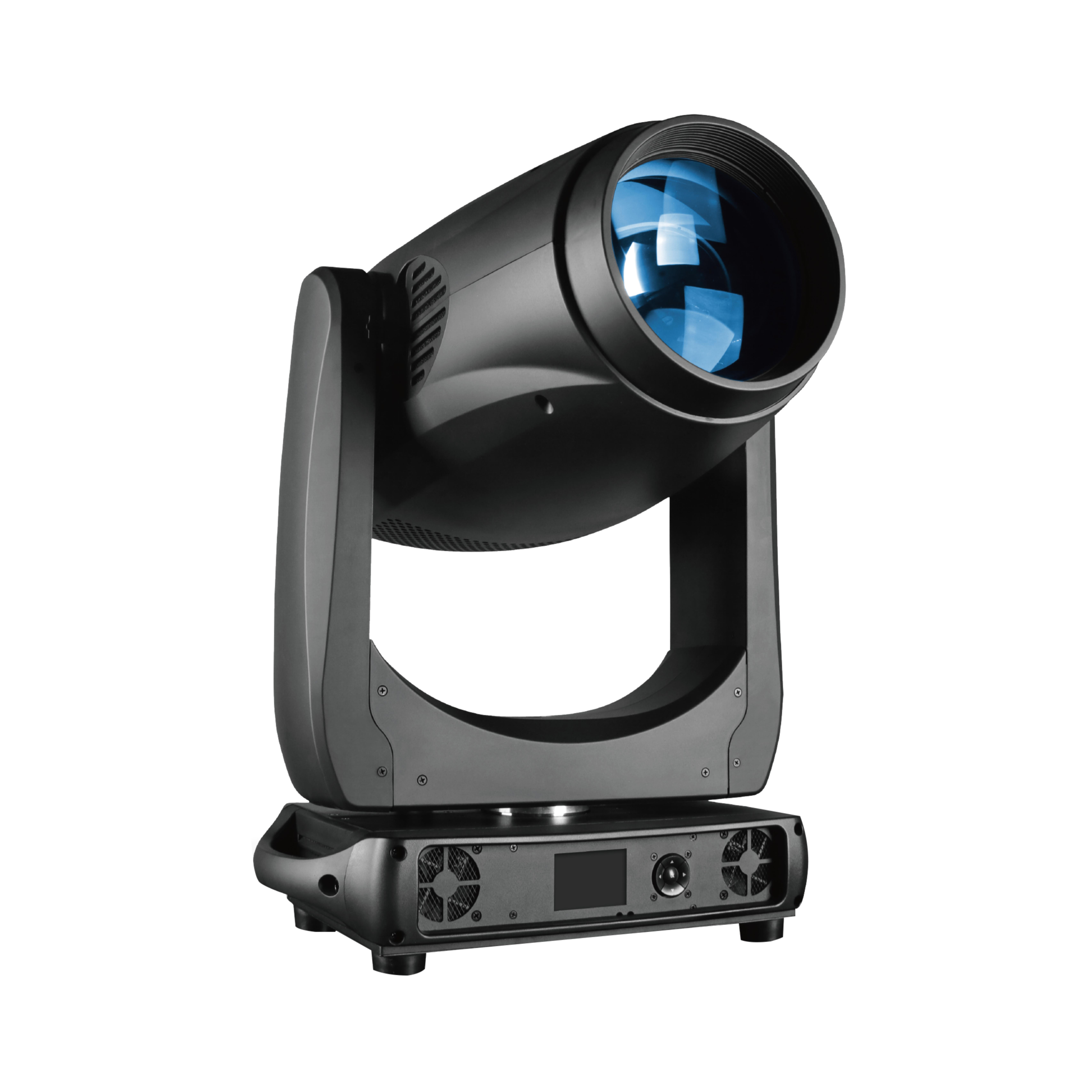

PLUTO T16 P is with 1400W LED light source, CMY and linear CTO, contains a professional framing system, can cut out many polygon; it is design for events, concerts, fashion shows as well as rental market.
DETAILS
Optical system
Light source
1400Wmodule
Angle
SS9193SC/SC HC：5-55° SC Pro：5-50°
CRI
SS9193SC：Ra＞70 SC HC：Ra：95，R9：90 SC Pro：Ra≥95，R9≥95
Total lumen output
SS9193SC：34000lm SC HC：23000lm SC Pro：22000lm
Control System
Pan/Tilt rotation
540°/270°(8-16bit)
Dimmer
0-100% 16Bit
Cooling
Forced Convection
Control
DMX512，RDM，ARTNET、W-DMX（optional）、 SACN、Web Server
Display
On board Control, Custom Mode,0-25Hz Strobe
Con Personality
BASIC(36CHS)、STANDARD(42CHS)、EXTEND(45CHS)
Special
Pan/Tilt movement blackout, User-selectable pan/tilt ranges
Effect synthetic system
Rotating Gobo
7 Gobos+ White, Gobo-flow effect, Gobo shake, Bi-directional rotation
Static Gobo
8 Gobos+White，Gobo-flow effect，Gobo shake
Colors
One color wheel (6 dichroic-filters+White, Rainbow-flow effect)
CMYK
CMY wheel, Linear CTO function
Prism
One piece of 5 F prisms One piece of linear prism
Iris
5-100% linearly adjustable with macro
Framing system
4 shutter blade; Each blade's angel and direction can be individual controlled, fully blackout; The whole Framing module is ±90°.
Animation Wheel
Bi-directional rotation
Focus
Motorized linear focus
Zoom
Motorized linear zoom
Frost
2 new material frost filters(light & medium), can be used independent and overlay.
Appearance
Size

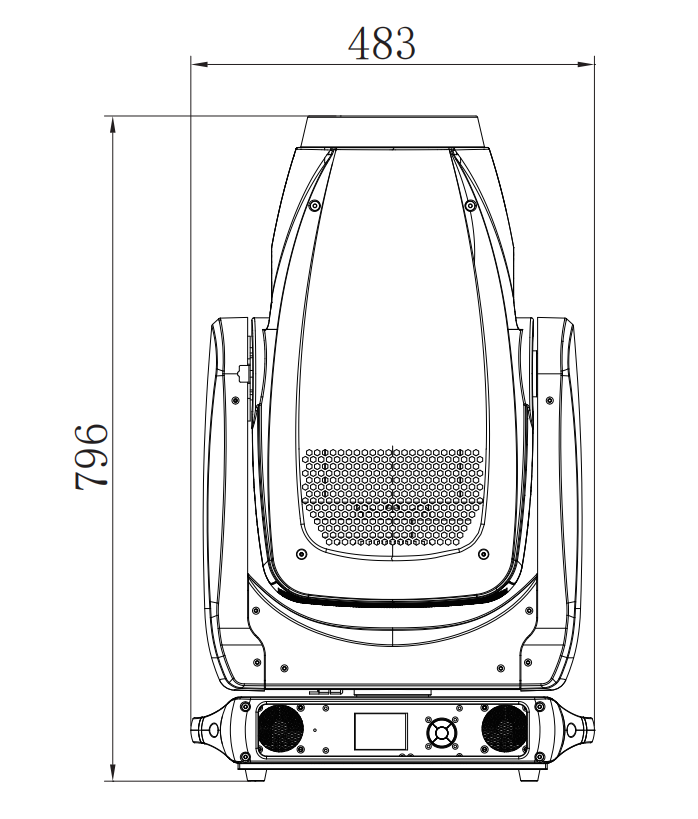

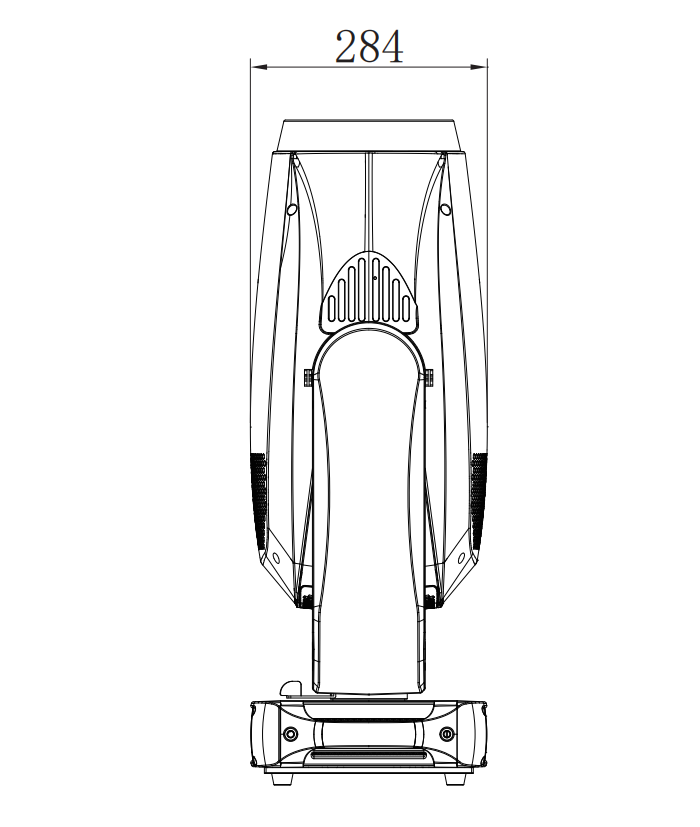

483x284x796mm
Weight
45.5kg
Casing
Flame-retardant plastic（V0）
Electrical Specs
Voltage
100-240VAC,50/60Hz
Max. Power
1600W
Power Connection
power in
Signal socker
3pin and 5pin in and out, RJ45 in and out
Work Environment
Ambient Temp
0℃-45℃
IP Rated
IP20
Certification
Certification
CE、MET
