FC3

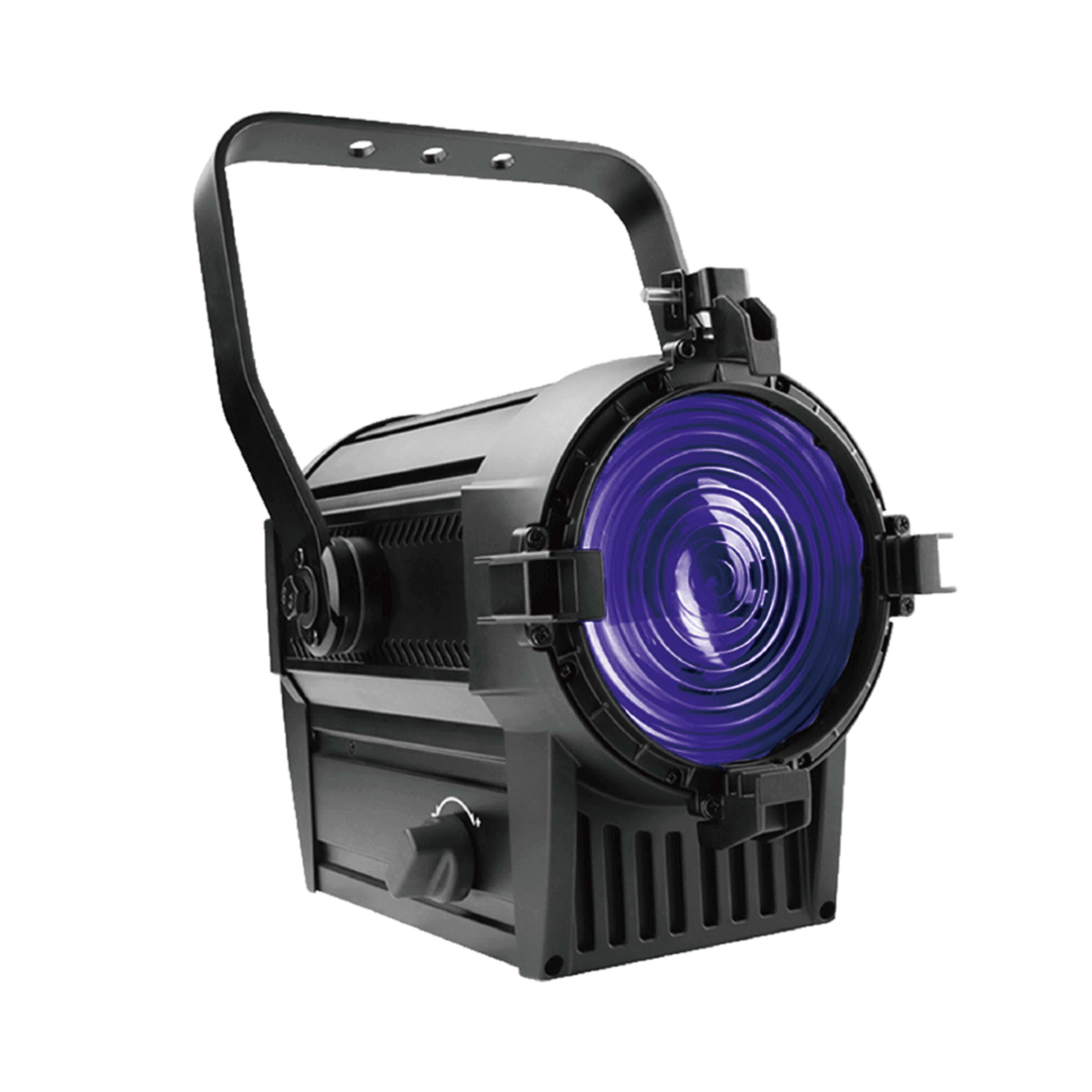

FREZNO zm-1 RGBAL is innovational color fresneal, high efficiency optic , even color mixing. HSIC smart color mixing system, pick up any colors quickly. CCT 1800K-10000K. 48
preset colors.Professional for TV, photo studios, exhibitions, function hall andtheater....etc.
DETAILS
Optical system
Light source
40W RGBW LED
CCT
1800K-10000K

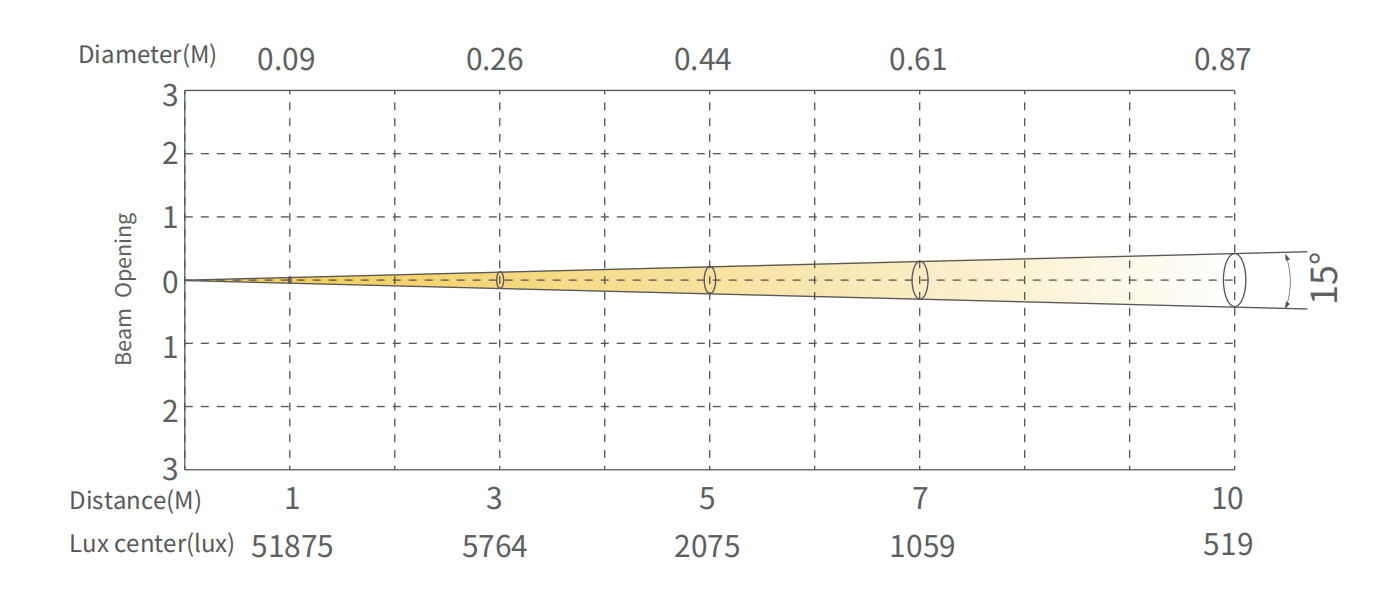

Angle
10°-30°
CRI RA
93(3200K, 5600K)
Appearance

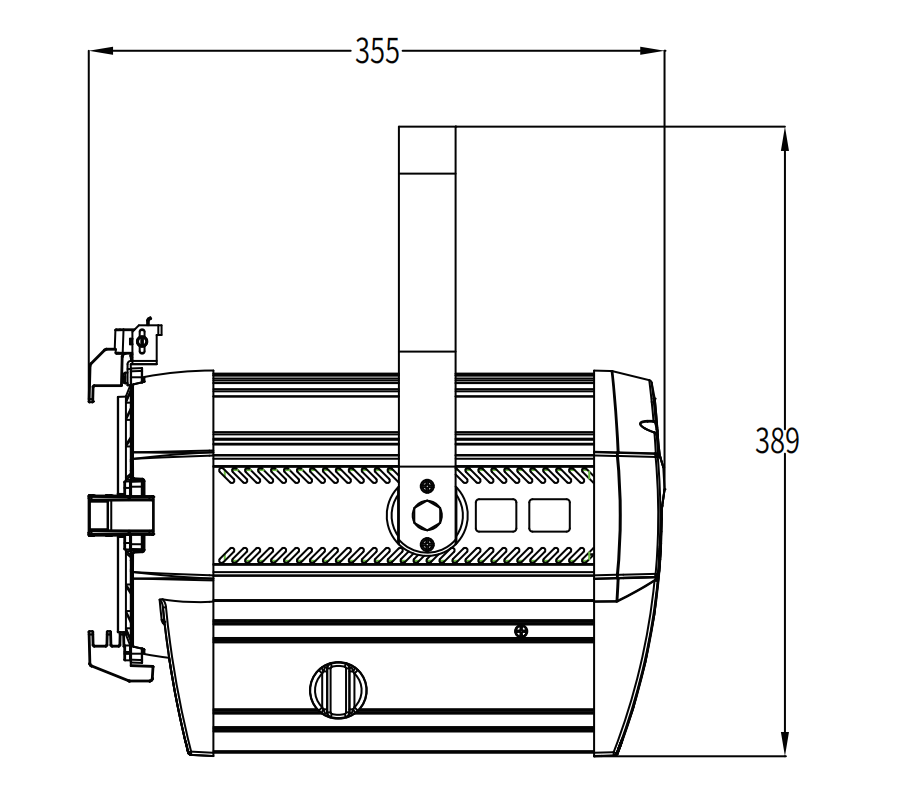

Size
355x281x388.5mm
Weight
5.62KG
Casing
Die-cast aluminum
Color
Black
Electrical Specs
Voltage
AC100-240V
Max. Power
100W
Power Connection
Power in and out
Signal socker
3pin and 5pin in and out
Control System
Dimmer
0-100%16Bit
Cooling
Forced Convection
Control
DMX512、RDM
Con Personality
HSIC（7CH）/SSP（8CH）/TOUR（12CH）/TR16（18CH）/CMY（10CH）
Display
OLED Display,On board Control, 0-25Hz Strobe
Zoom
Manual
Work Environment
Ambient Temp
0℃-45℃
IP Rated
IP20
Certification
CE、MET
