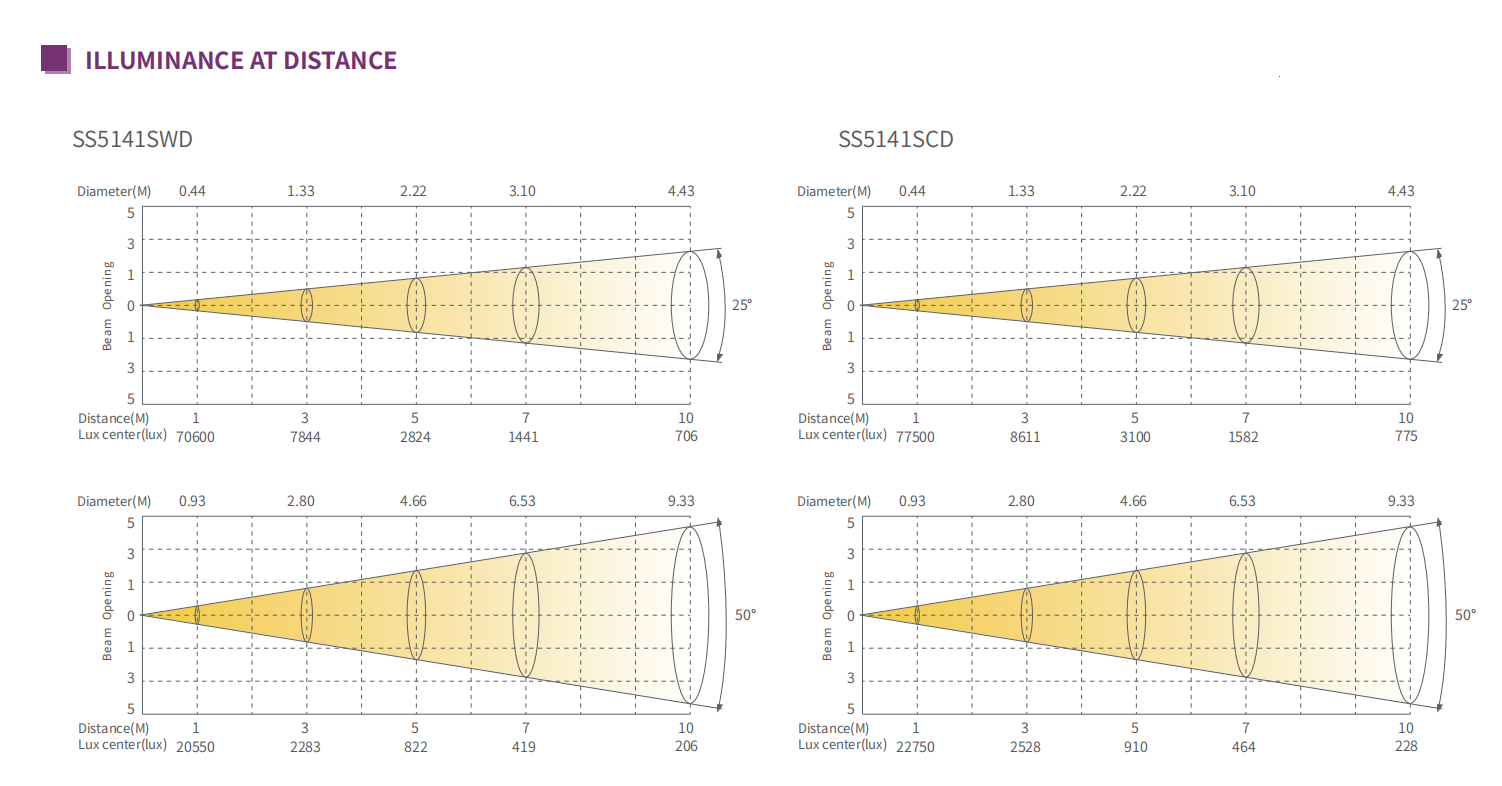

ILLUMINANCE
ED3

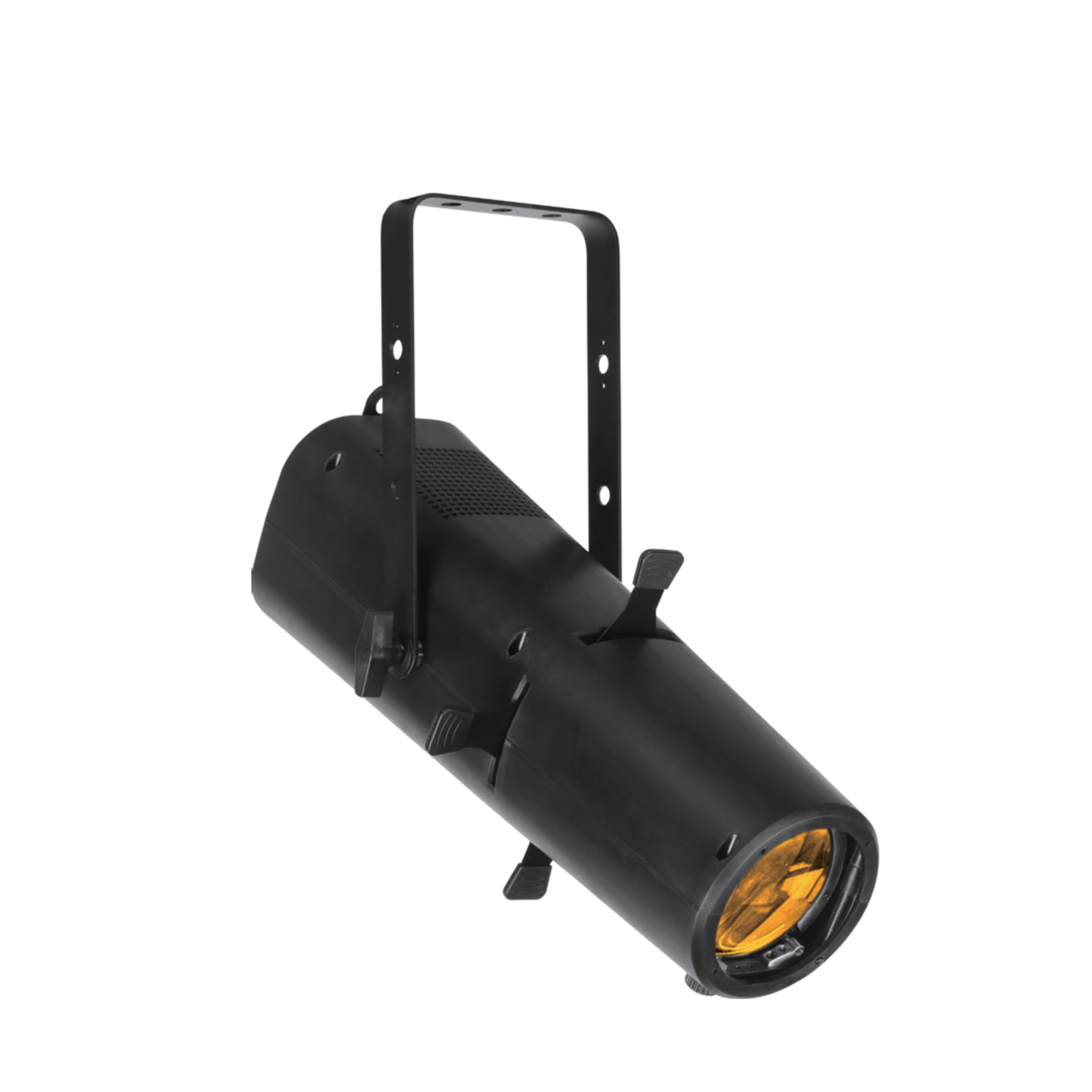

ECLIPSE 180 SD is a high CRI LED proe, CRI up to 98 RA, and crystal clear gobo projection. Support for DMX512, dimmer pack and RDM control; its framing system and zoom optic are integrated together, makes its compact and light weight size, perfect for all kinds of applications . it specially design for studio, theatre and TV stations.
DETAILS
Optical system
Light source
150W
Ra
98
Angle
25-50°
SS5141SWD
CRI:98,TLCI:98,CQS:96
SS5141SCD
CRI:96,TLCI:96,CQS:93
Control System
Dimmer
0-100%16Bit
Cooling
Forced Convection
Control
DMX/RDM/Dimming Pack Control
Display
On board Control, 0-25Hz Strobe
Con Personality
UNO/DOS/STD.P
Framing system
4 blades, manual shutter
Appearance

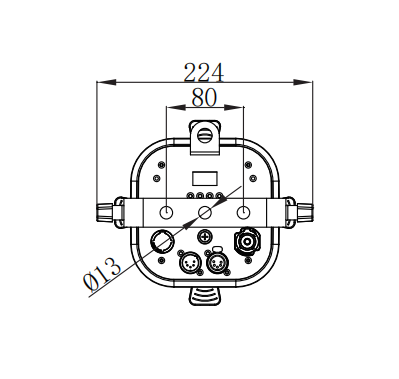

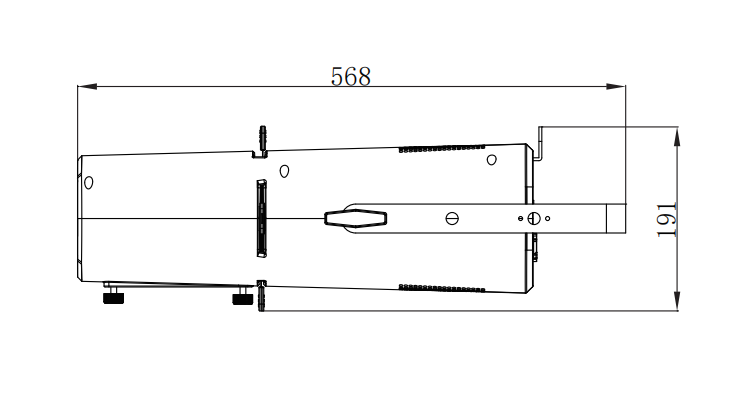

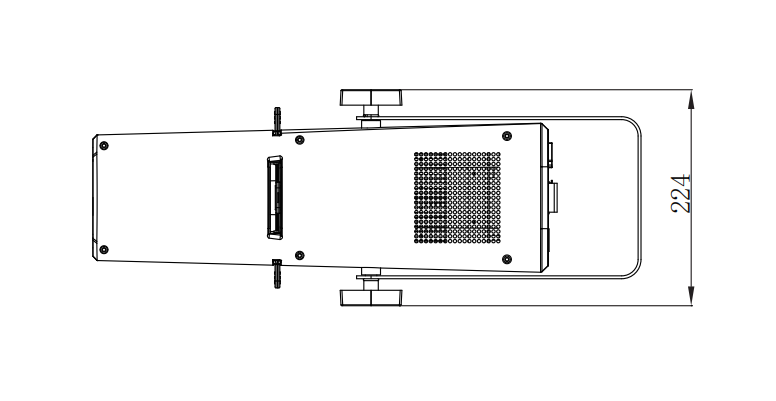

Size
568x224x191mm
Weight
6.1kg
Casing
Flame-retardant plastic（V0）
Color
Black
Electrical Specs
Voltage
AC100-240V,50/60Hz
Rated Power
170W
Power Connection
power in and out
DMX XLR
3pin or 5pin in and out
Work Environment
Ambient Temp
0-45℃
IP Rated
IP20
