M3

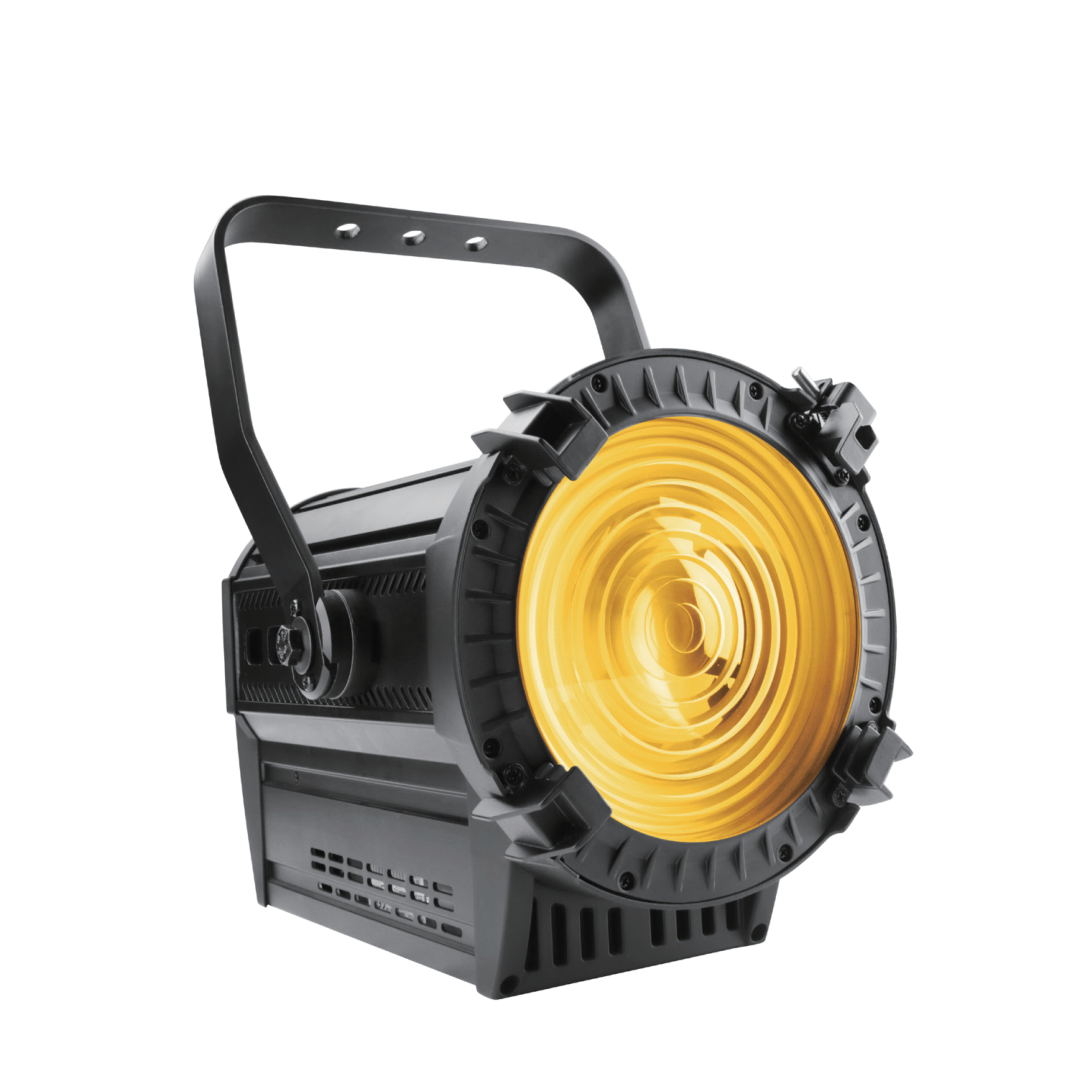

M00NLITE 80 HEX is a creative houselight,with high-efficient optics system,exellent color mixing, simple and easy HSIC color mixing system , precise CCT 1800K-10000K. It is an ideal tool for TV, studio,funtional hall, exhibition, carshow, theater, opera etc. , exhibition, carshow, theater, opera etc.
DETAILS

Optical system

Light source
80W (RGBALC)
CCT
1800K-10000K
CRI
Ra≥95
Angle
30°

Control System

Dimmer
0-100%16Bit
Cooling
Direct Convection
Control
DMX512,RDM,W-DMX
Display
On board Control ,Custom Mode ,0-25Hz Strobe
Con Personality
SSP(8CH),TOUR(13CH),TR16(20CH), HSIC(7CH),CMY(8CH)

Appearance

Size
332x192x115mm
Weight
3.4kg
Casing
Die-cast aluminum
Color
Black

Electrical Specs

Voltage
AC100-240V,50/60Hz
Rated Power
70W
Power Connection
Power in
DMX XLR
3pin or 5pin in and out

Work Environment

Ambient Temp
0-45℃
IP Rated
IP20

DOWNLOAD

leaflet

MOONLITE 80 HEX 2024-11-28
DOWNLOAD

user manual

MOONLITE 80 HEX 2023-11-13
DOWNLOAD

MA2

SS5221XH(MA2) 2024-11-14
DOWNLOAD

AVOLTES

SS5221XH(AVOLITES) 2023-11-13
DOWNLOAD

GDTF

SS5221XH(GDTF) 2024-05-09
DOWNLOAD
