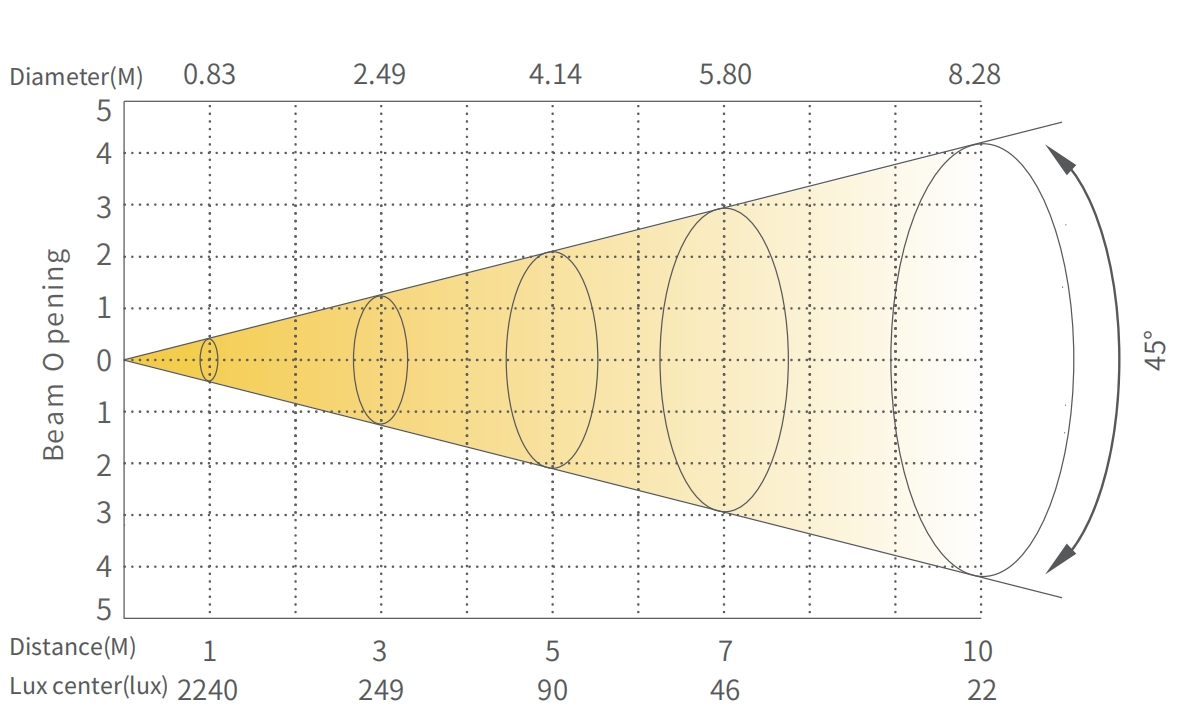

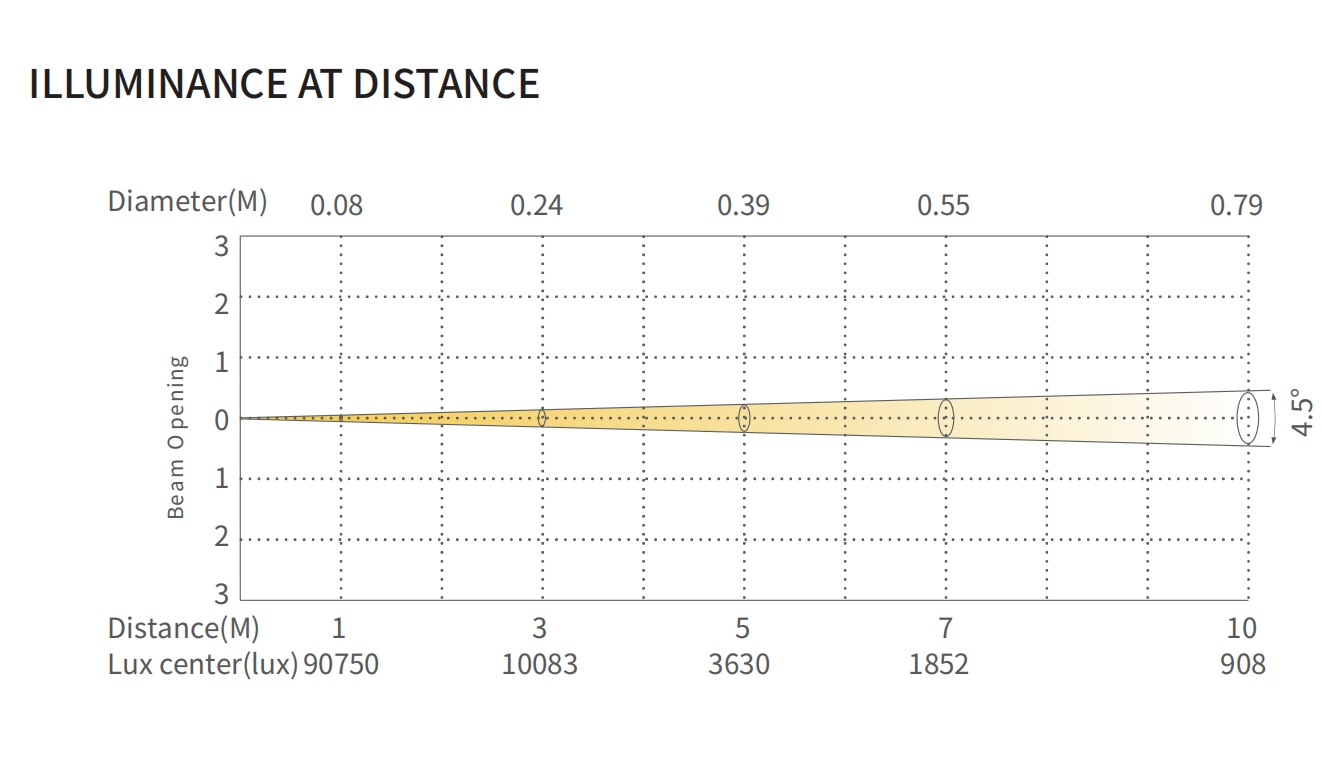

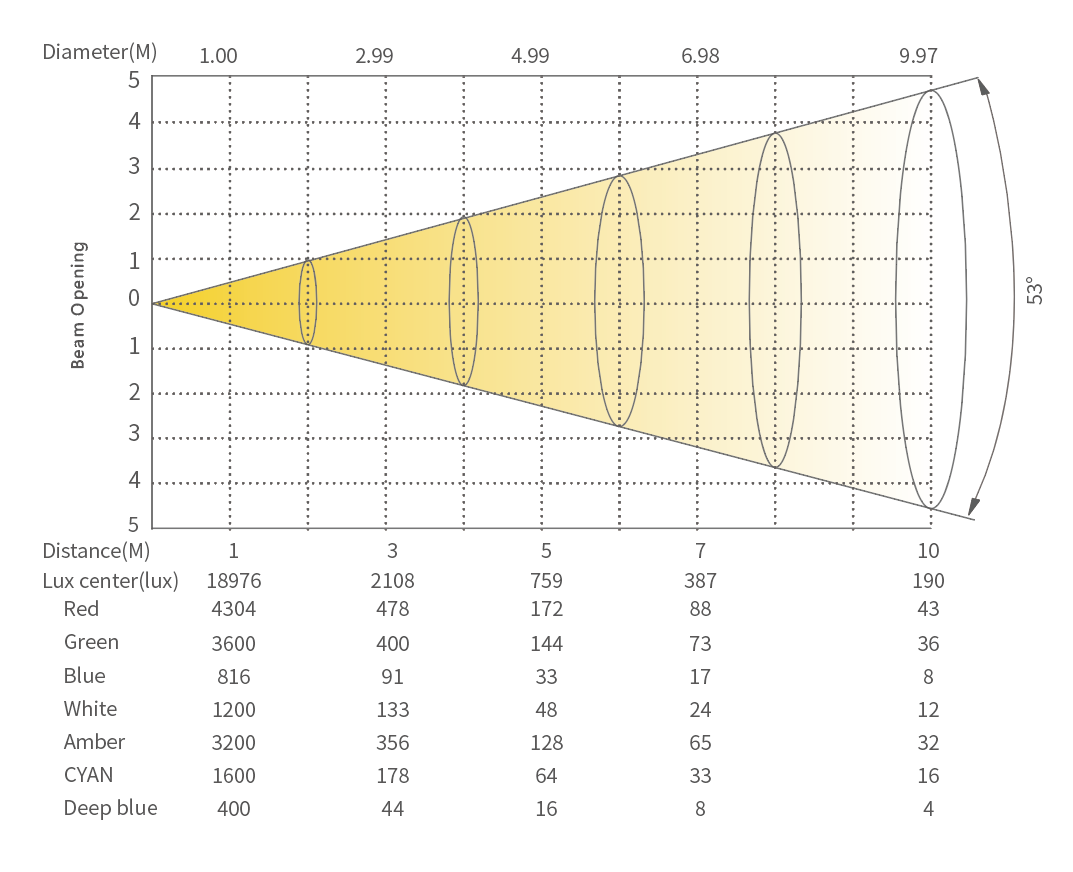

ILLUMINANCE

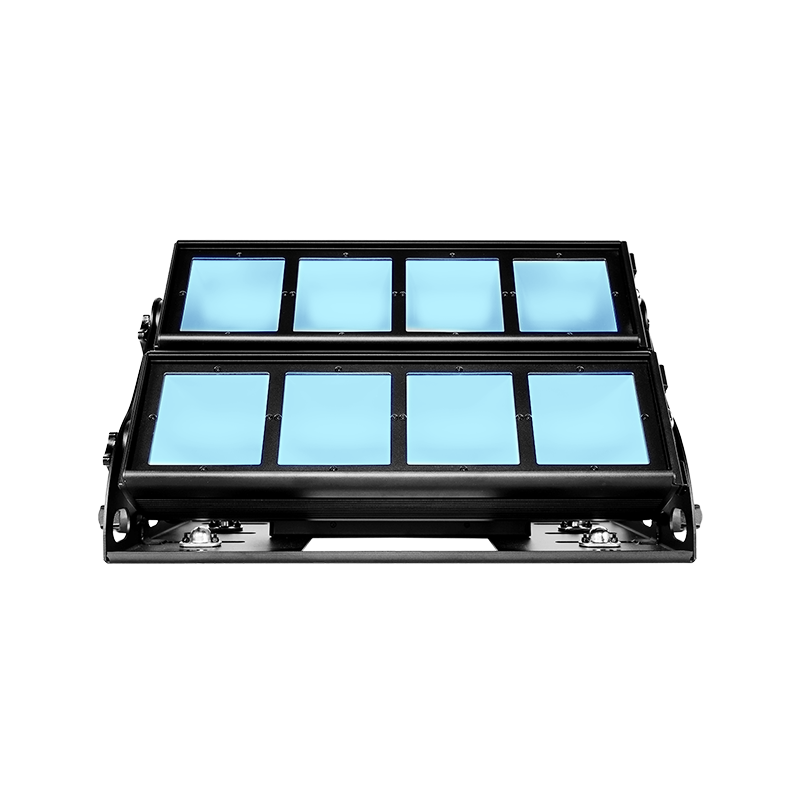

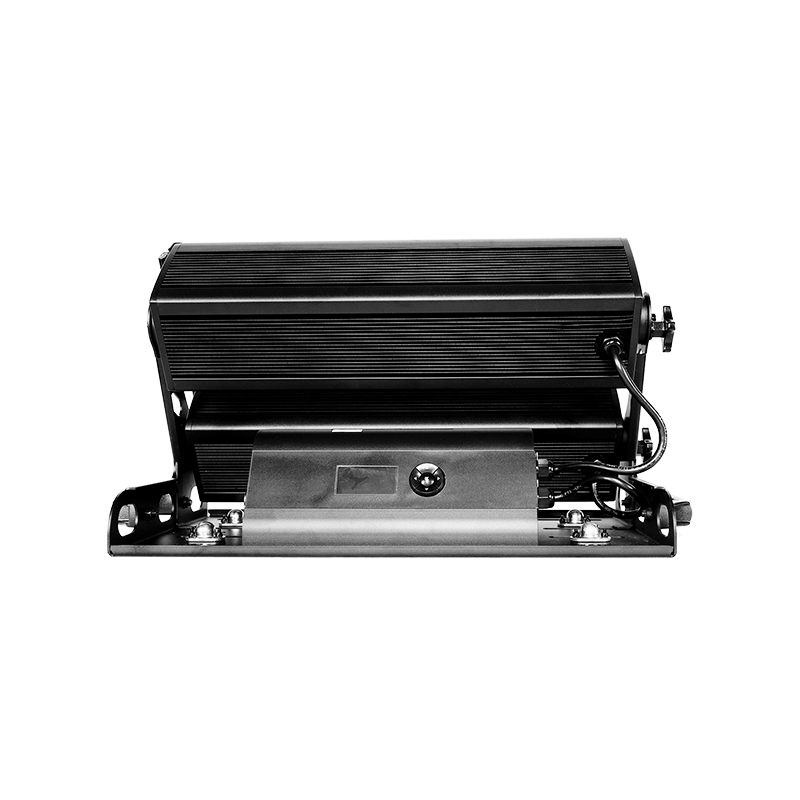

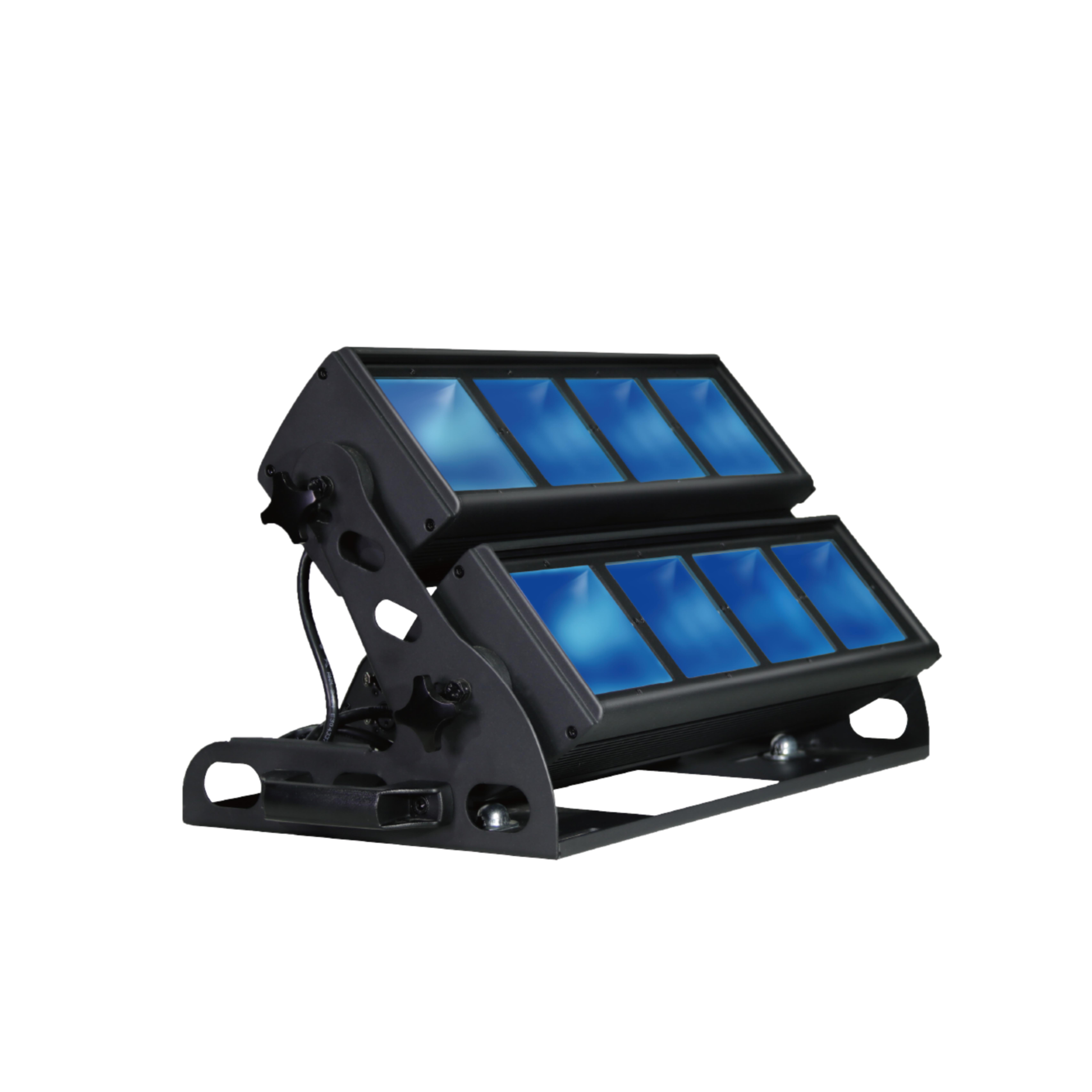

S1
The 1st professional LED cyclorama apply with 7 special selected colors, truly presents the full color spectrum.Using the asymmetric optics and advanced HSIC color management system,mixing colors in an ultra-fast and easy way. You can select high quality white colors 2700k- 8000k, with high CRI >90; Perfect for all kinds of large and medium theatre, studio, also the rental events.
DETAILS
Optical system
Light source
48xRed, 32xGreen, 24xBlue, 16xDeep Blue, 16xCyan,40xLime, 24xAmber
CCT
1800K-10000K
CRI
Ra≥90
Angle
45°x65°
Control System
Dimmer
0-100%16Bit
Cooling
Direct Convection
Control
DMX512，RDM
Display
On board Control,0-25Hz Strobe, Custom Mode
Con Personality
HSIC(7CHS)，SSP(10CHS) ， TOUR(14CHS) ，TR16(22CHS) , PIXEL.1(9CHS)，PIXEL.2(17CHS)
Appearance

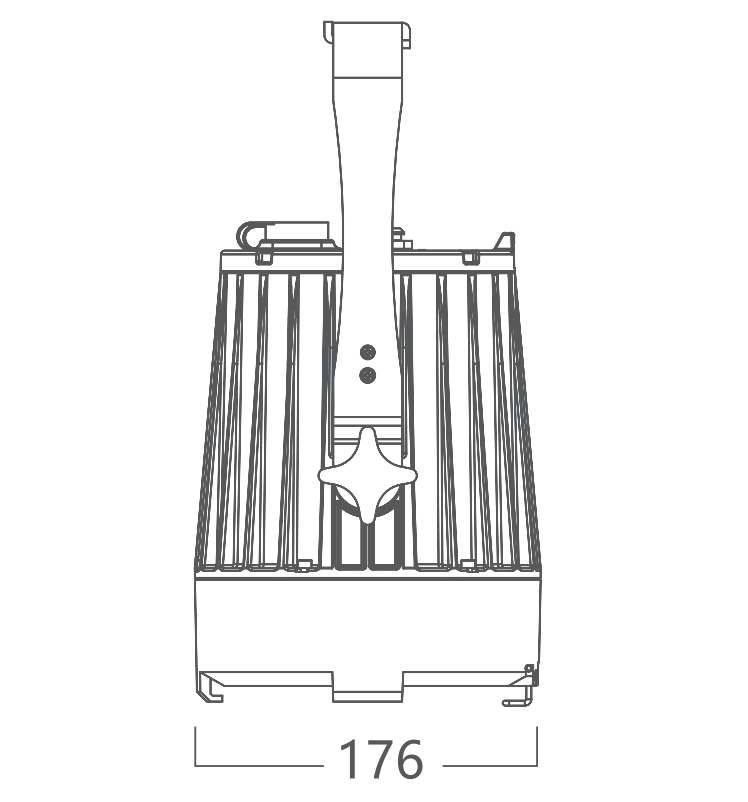

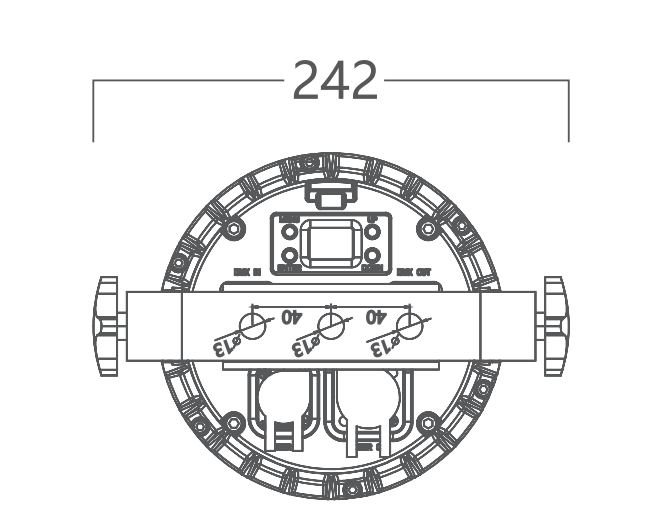

Size
622x310x327mm
Weight
15kg
Casing
Extruded aluminum
Color
Black
Electrical Specs
Voltage
100-240VAC,50/60Hz
Rated Power
340W
Power Connection
Power in and out
DMX XLR
DMX in and out
Work Environment
Ambient Temp
0-45℃
IP Rated
IP20
