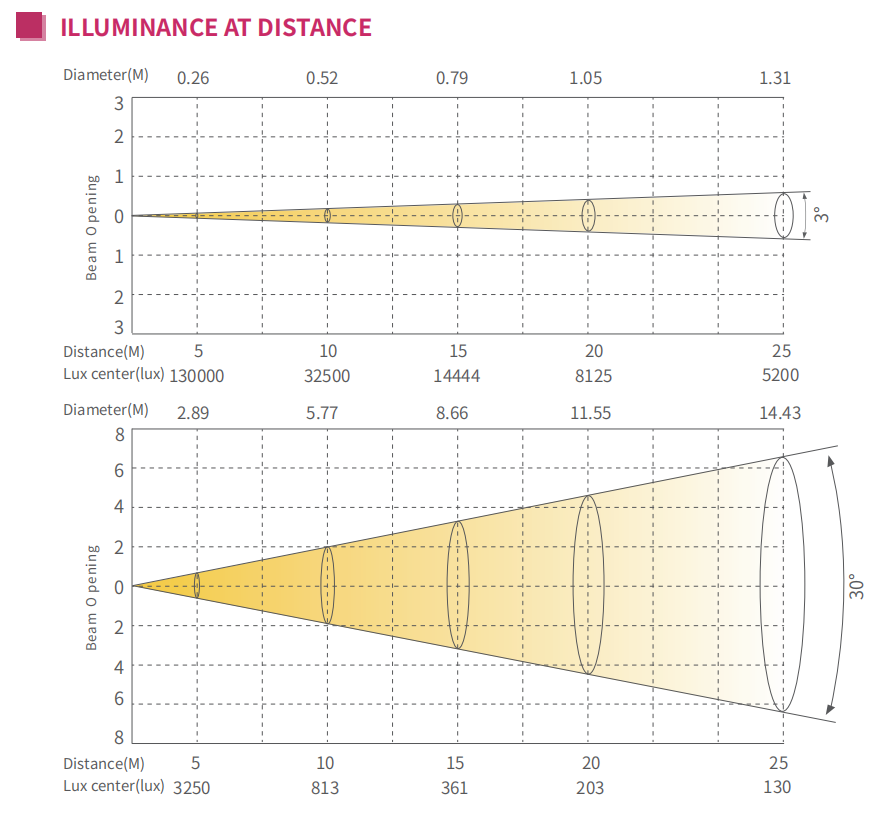

ILLUMINANCE
PH5
PLUTO 550 HYBRID is a new milestone for professional LED SPOT moving head, with high-efficient optics! Its subtle design creates a compact and lightweight fixture, with incredible strong output and comprehensive functions! Rapid and silent X/Y movement; 3-30°wide and precise zoom range, intelligent auto-focusing software; Fast and smooth CMY system; Well-chosen colors, fixed and Rotating gobos wheel, frost and prism effects, what’s more, the refined 16bit dimming simulate the classic halogen dimmer curve. The PLUTO 500 HYBRID is born for the Rental house, TV station, and Theatre,
DETAILS
Optical system
Light source
450W module
Angle
3°-30°
Control System
Pan/Tilt rotation
540°/270°(8-16bit)
Dimmer
0-100%16Bit
Cooling
Forced Convection
Control
DMX512, RDM, ARTNET , W-DMX (optional)
Display
On board Control, Custom Mode, 0-25Hz Strobe
Con Personality
STANDARD（29CHS）、BASIC（23CHS）、EXTEND（31CHS）
Special
Pan/Tilt movement blackout, User-selectable pan/tilt ranges
Effect synthetic system
Rotating Gobo
8Gobos+White, Gobo-flow effect, Gobo shake, Bi-directional rotation
Static Gobo
10Gobos+White，Gobo-flow effect，Gobo shake
Colors
One color wheel(6 dichroic-filters+ White， Rainbow-flow effect)
CMYK
CMY wheel
Prism
One piece of 5 F prisms,One piece of linear prism
Animation Wheel
Bi-directional rotation
Focus
Motorized linear focus
Zoom
Motorized linear Zoom
Frost
1 Frost filter
Appearance

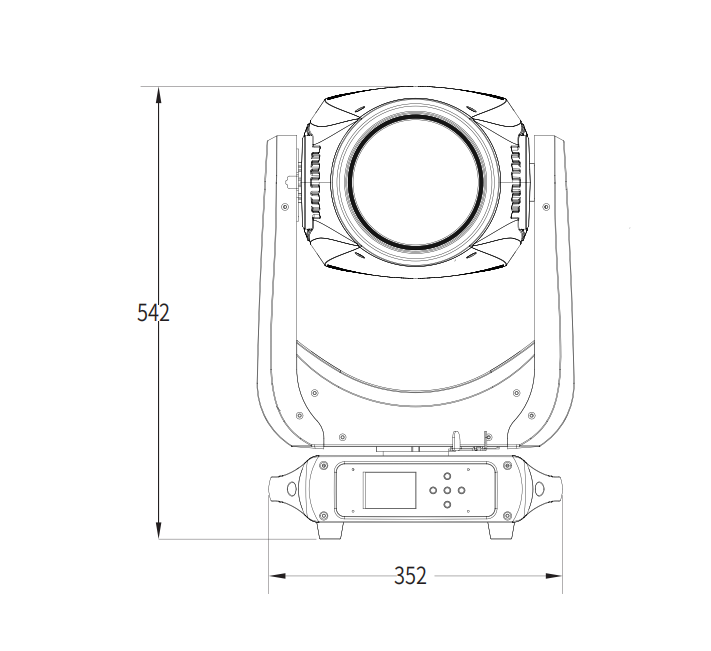

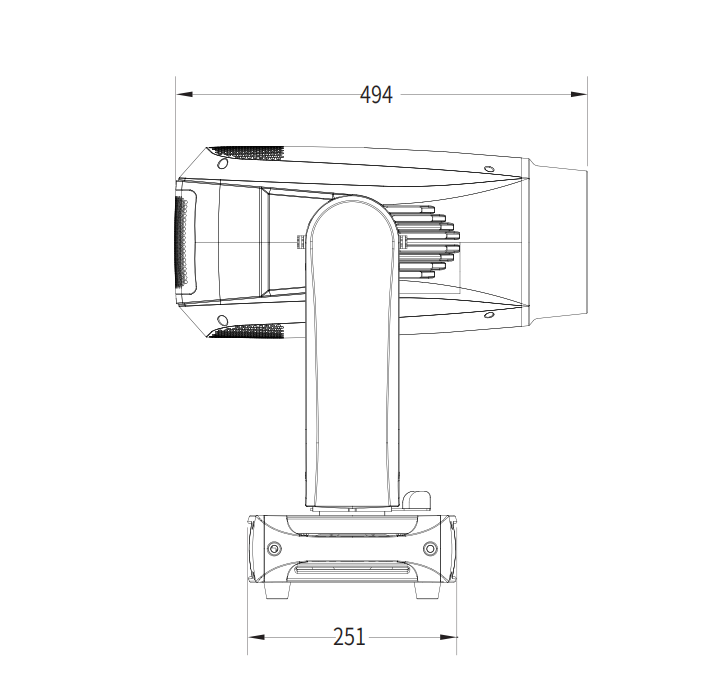

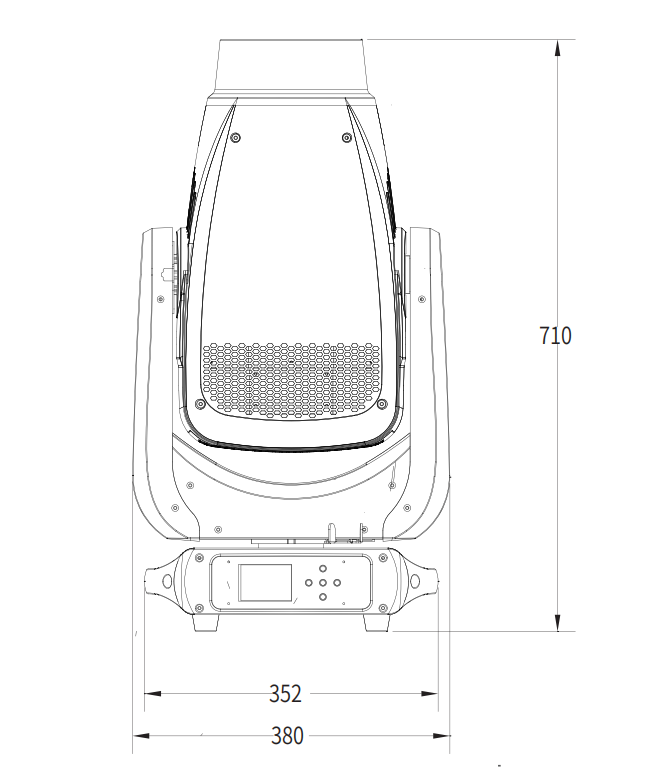

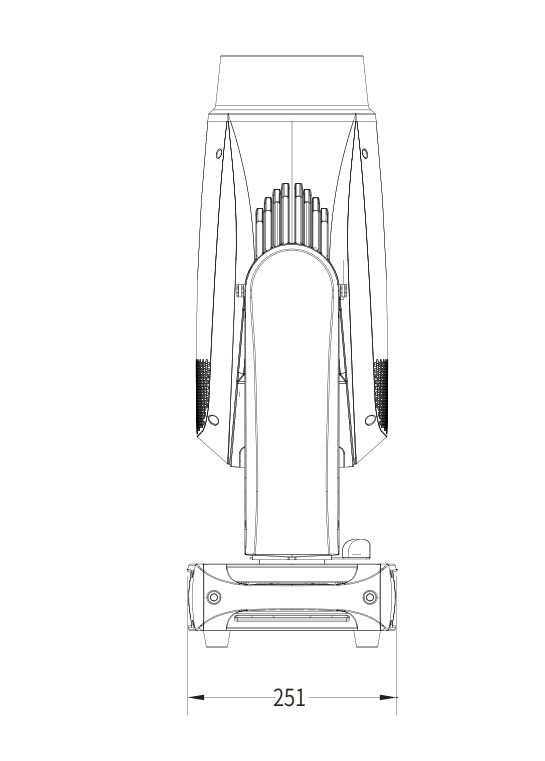

Size
380x251x710mm
Weight
26kg
Casing
Flame-retardant plastic（V0）Die-cast aluminum
Color
Black
Electrical Specs
Voltage
AC100-240V，50/60Hz
Max. Power
550W
Power Connection
power in
Signal socker
3pin or 5pin in and out， RJ45 in and out
Work Environment
Ambient Temp
0-45℃
IP Rated
IP20
