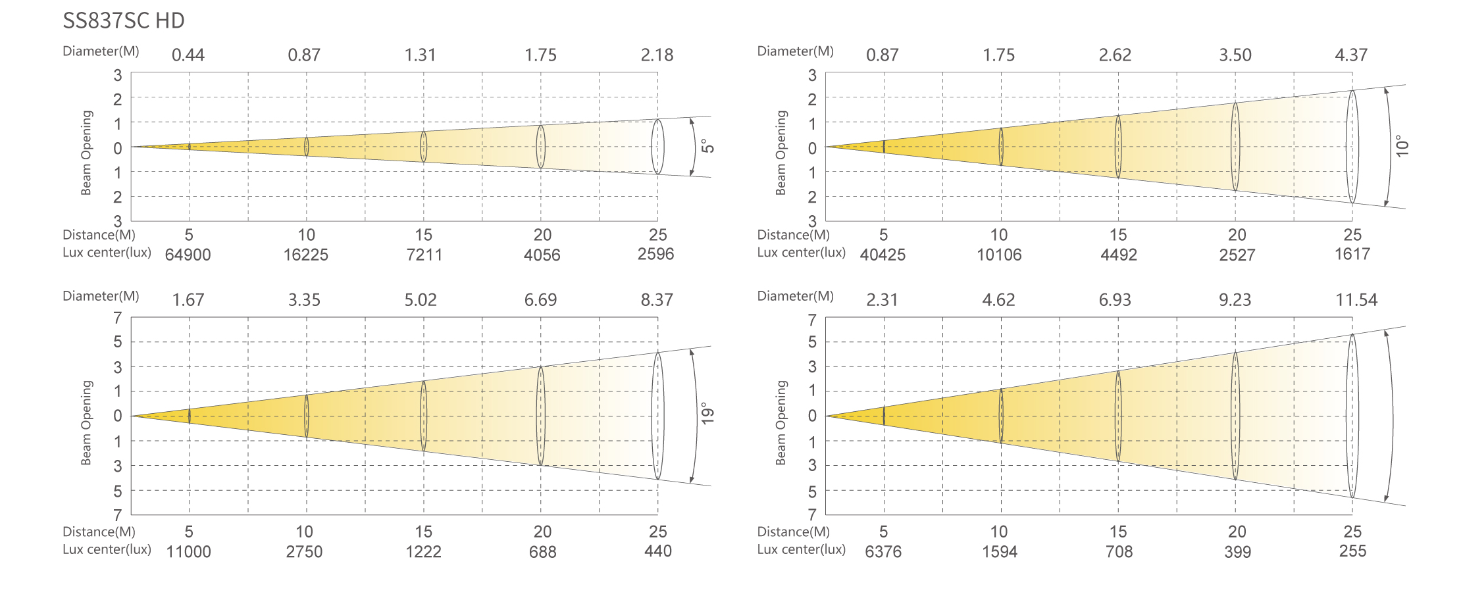

ILLUMINANCE
E6

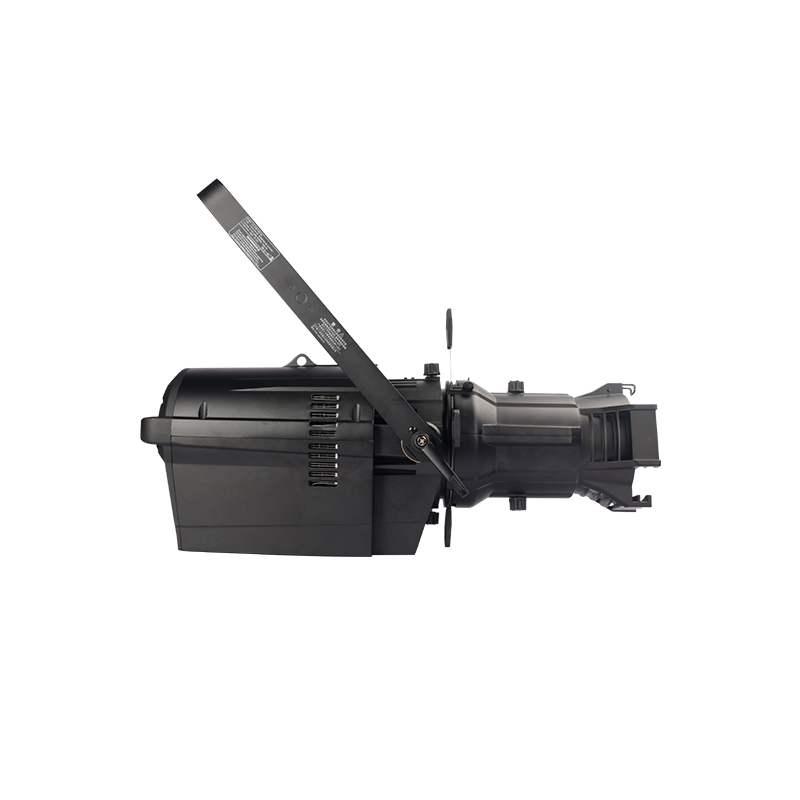

The ECLIPSE 1000 HD is a new professional with high density integrated source, 50% brighter than the 1st great successful version , can match exactly professional lens with different degree. Shaping, logo projection is crystal clear, color rendering>90, perfect for theatre, studio, banquet halls and TV stations.
DETAILS
Optical system
Light source
400W LED
CCT
3200K/5600K
CRI
Ra≥90
Angle
5°/10°/14°/19°/26°/36°/50°/15°-30°/25°-50°

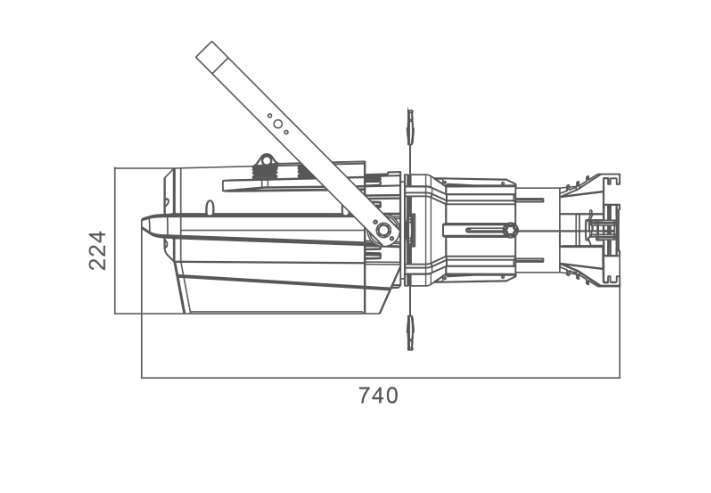

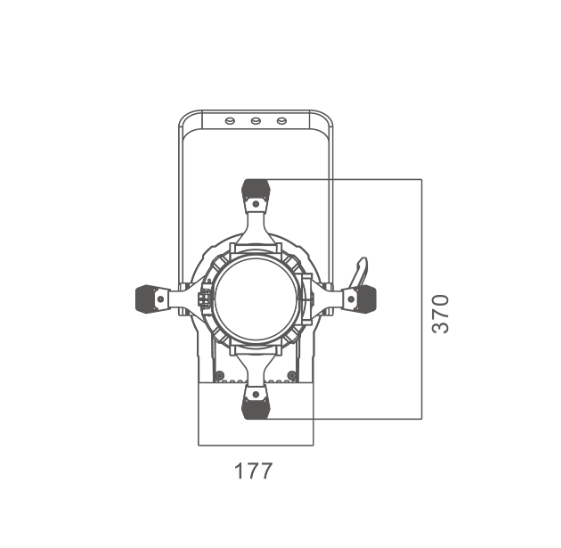

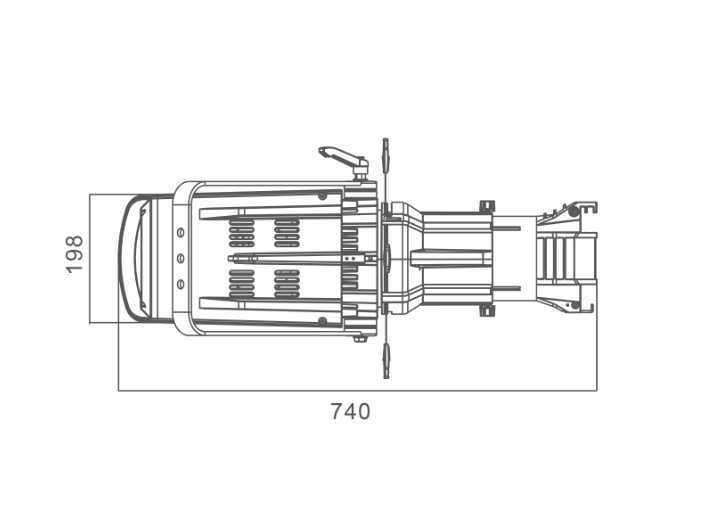

Size
740x198x224mm
Weight
9.2kg
Casing
Die-cast aluminum
Color
Black
Control System
Dimmer
0-100%16Bit
Cooling
Forced Convection
Control
DMX512，RDM
Display
On board Control,0-25Hz Strobe
Con Personality
UNO(1CHS)、DOS(2CHS)、STDP3CHS)
ElectricalSpecs
Voltage
AC100-240V.50/60Hz
Max.Power
360W

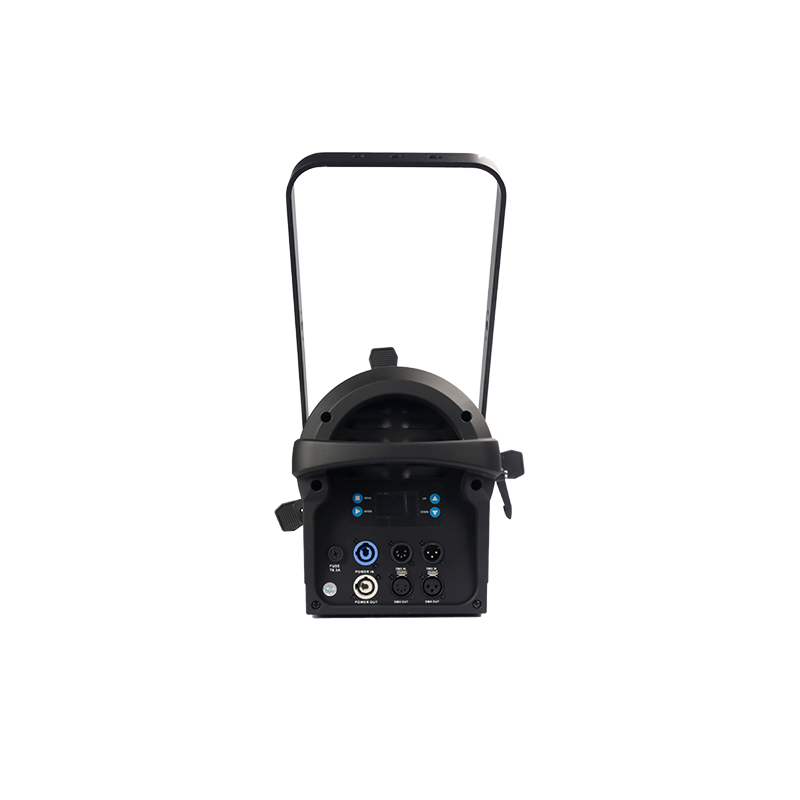

Power Connection
Powerin and out
DMX XLR
DMX in and out
Work Environment
Ambient Temp
0℃-45℃
IP Rated
IP20
Certification
Certification
CE、MET
