PHOTOS
VIDEOS

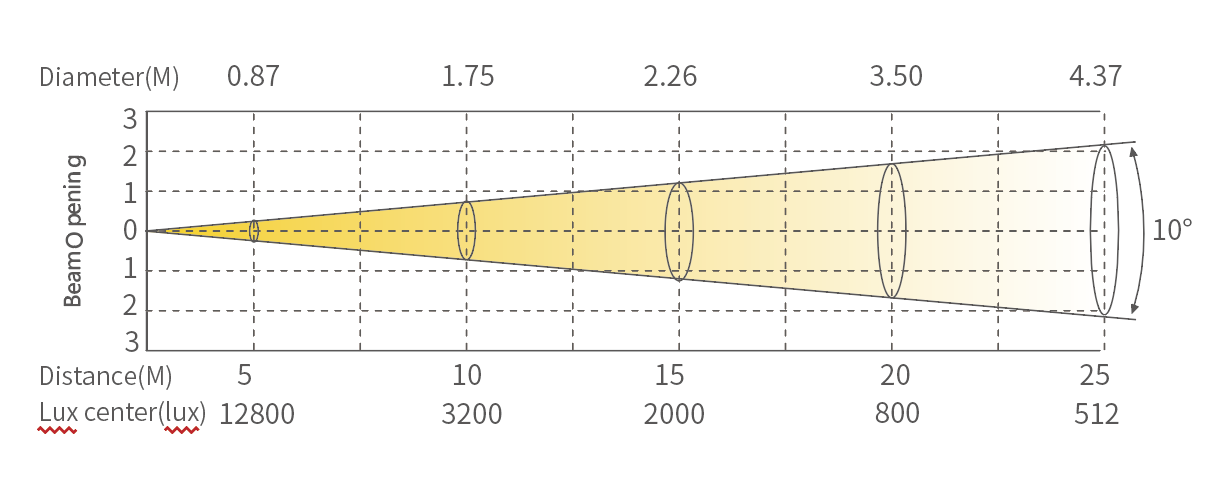

ILLUMINANCE

ST2

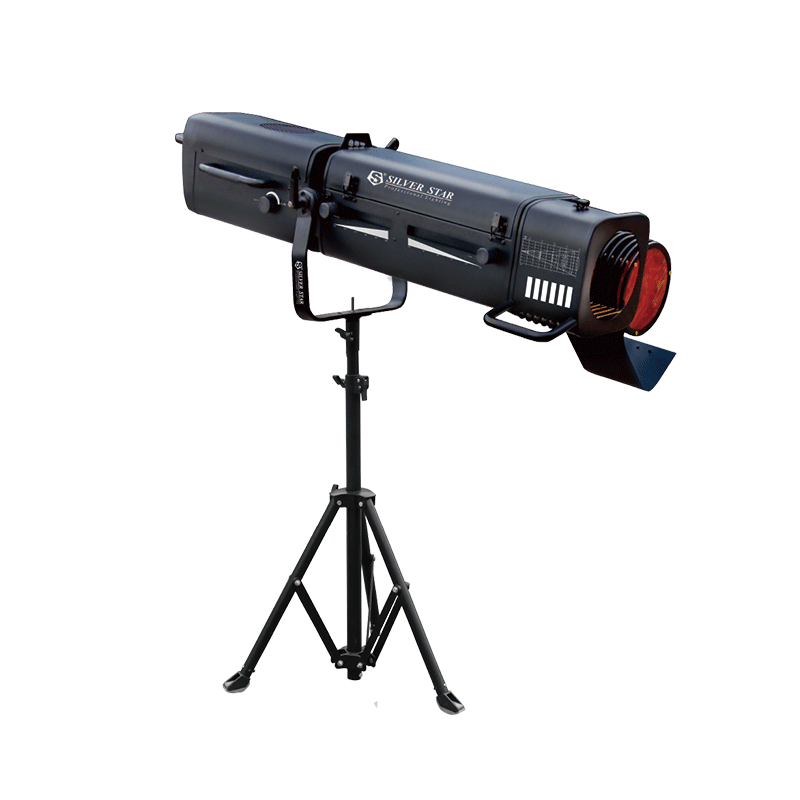

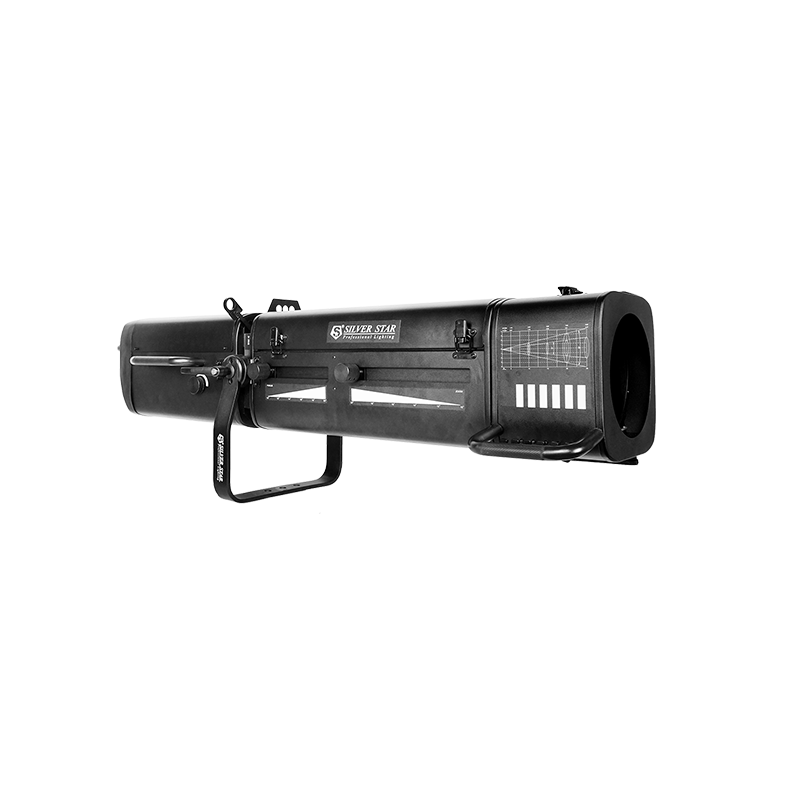

TRACER is a new type pure manual control follow spot, with 250W customized high-efficient LED module, delicate design fully consider of the human operate habits; Super flexible control including the dimmer, iris, zoom, focus, color change; Precise zoom range 10-20 projection stay sharp and clear on any angles; Smart structure design separate the heat-sink an optic system, easy and convenient for clean and maintenance. The IRACER is born for the small-medium size theatre, auditorium, church, banquet hall. Rental house application.
DETAILS

Optical system

Light source
250W LED
CCT
5600K
CRI
Ra≥90
Angle
10°-20°(Manual Zoom)

Control System

Dimmer
0-100%16Bit
Cooling
Forced Convection
Control
Dimmer, Iris, Zoom, Focus, Boomerang

Appearance

Size

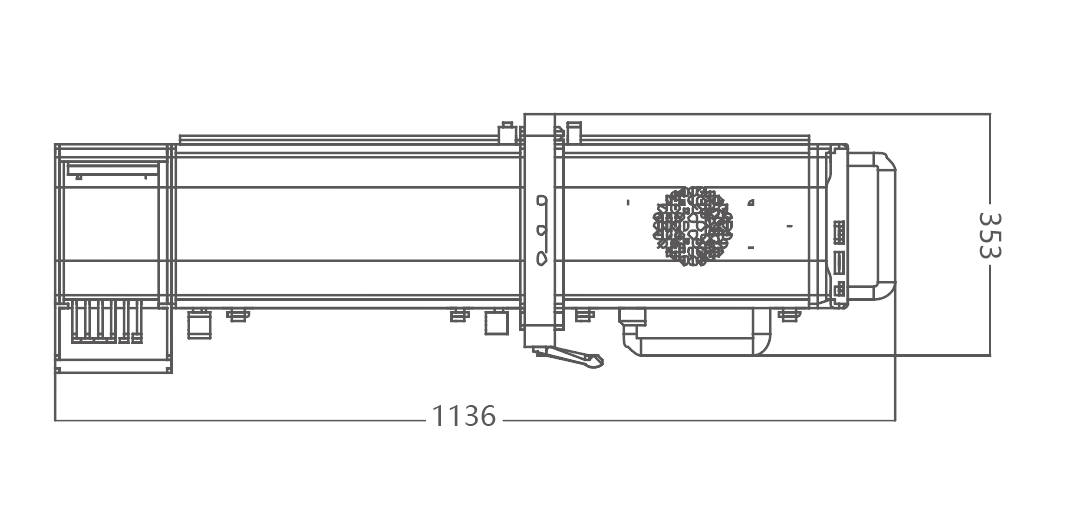

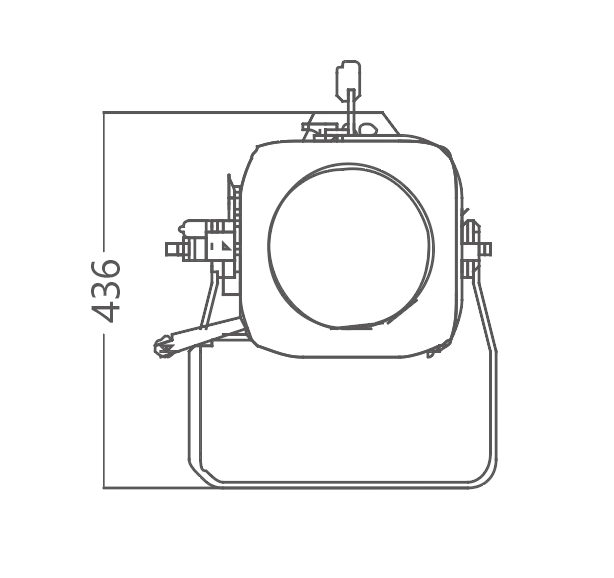

1136x353x436mm
Weight
23kg
Casing
Metal
Color
Black

Electrical Specs

Voltage
100-240VAC,50/60Hz
Max. power
230W
Power Connection
Power in

Work Environment

Ambient Temp
0-45℃
IP Rated
IP20

DOWNLOAD

Leaflet

TRACER-leaflet 2024-11-27
DOWNLOAD

User manual

TRACER-SS824SC-specification 2023-11-01
