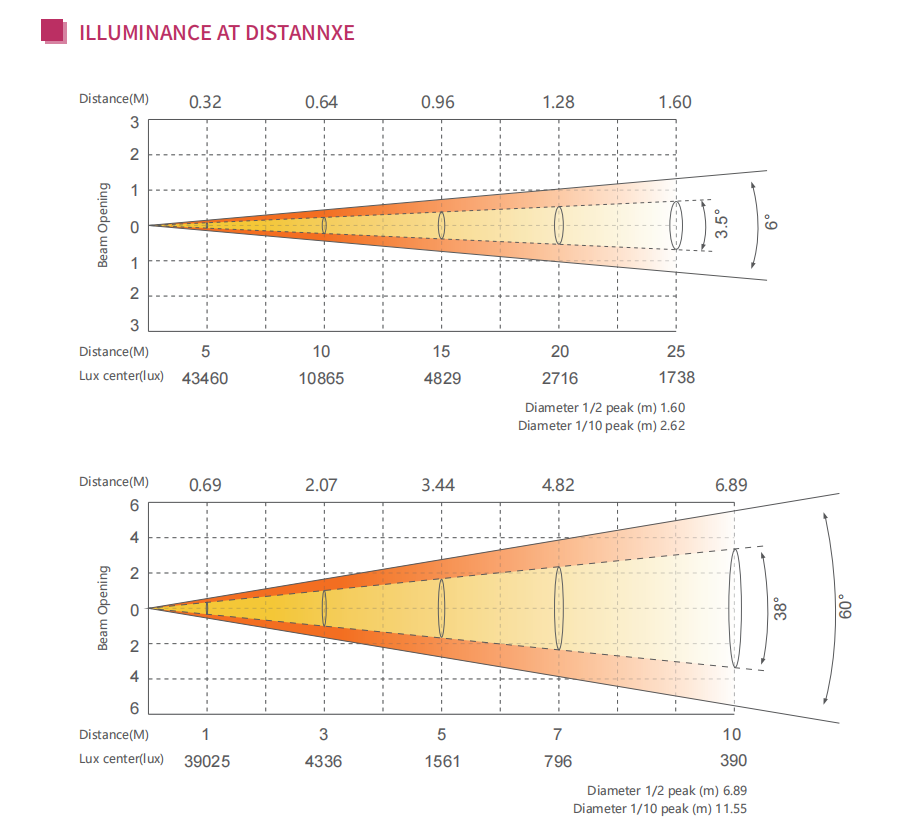

ILLUMINANCE

PW8

PLUTO 8000 WBX is a new generation of RGBL 4 in 1 moving head wash light with excellent color mixing, Zoom range 3.5°-60°,comes with HSIC color mixing systerm, can pick up color with simply and easy way , CCT 1800k-10000k, with 3-section ring control for LEDs to achieve brillian dynamic effetcs, intelligent CCS- color consistency system (Yajiang patent), keep the same color consistency in different intensity for each model. Ideal tool for all the applications.
DETAILS

Optical system

Light source
19*40W RGBL
Beam angle
3.5-38°
Field angle
6-60°
LED Ring
RGB Ring

Control System

Pan/Tilt rotation
540°/220°(8-16bit)
Dimmer
0-100%16Bit
Cooling
Forced Convection
Control
DMX512、RDM、W-DMX(optional)、WIFI、Bluetooth
Display
On board Control, Custom Mode, 0-25Hz Strobe
Con Personality
HSIC/SSP/TOUR/TR16/CMY/PIXEL
Special
Pan/Tilt movement blackout, User-selectable pan/tilt ranges

Appearance

Size
352X256X461mm
Weight
14KG
Casing
Flame-retardant plastic(V0)
Color
Black

Electrical Specs

Voltage
100-240VAC
Max. Power
720W
Power Connection
Power in
Signal socker
3pin or 5pin in and out, USB-C

Work Environment

Ambient Temp
0-45℃
IP Rated
IP20
