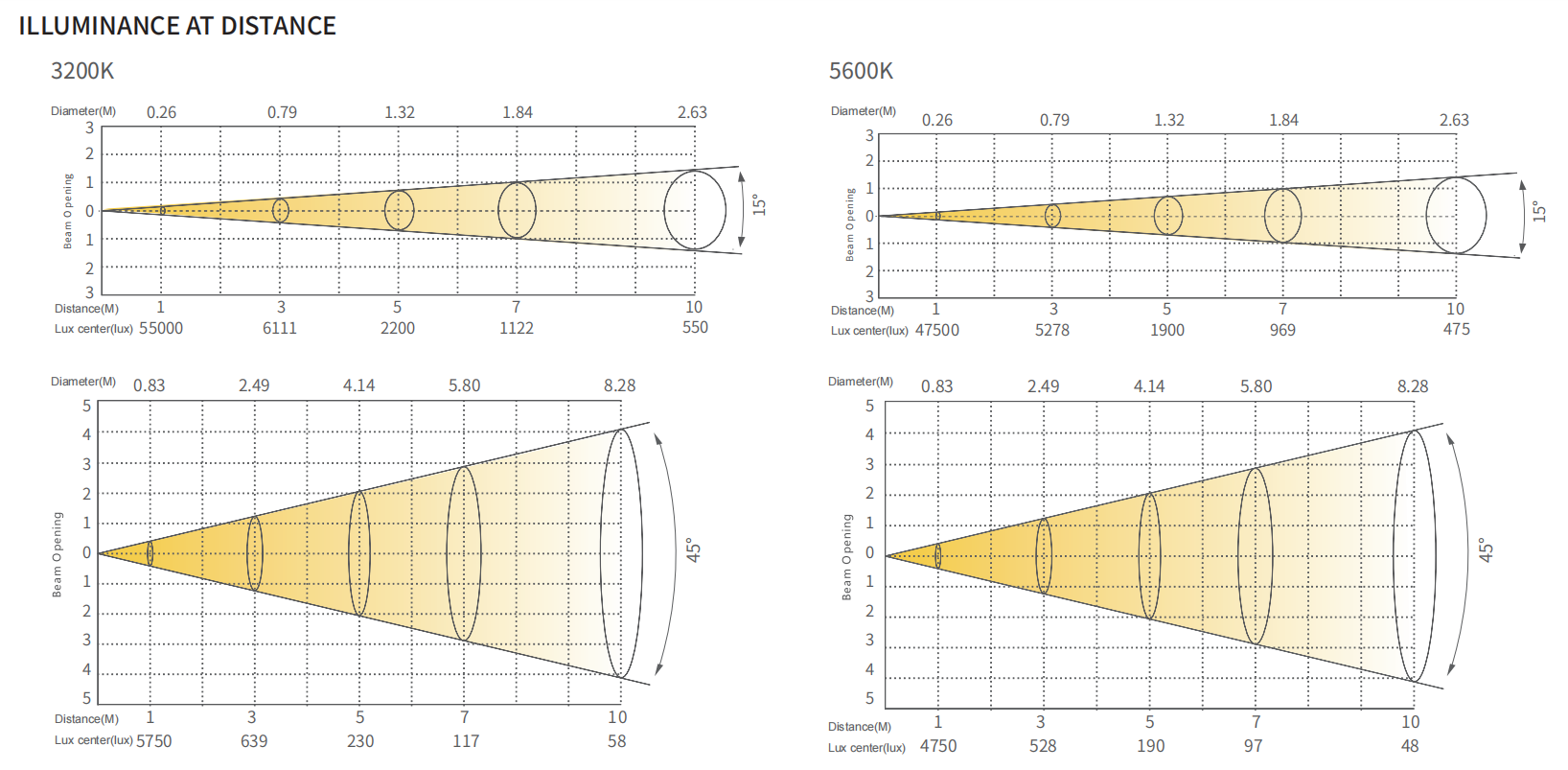

ILLUMINANCE
FC7

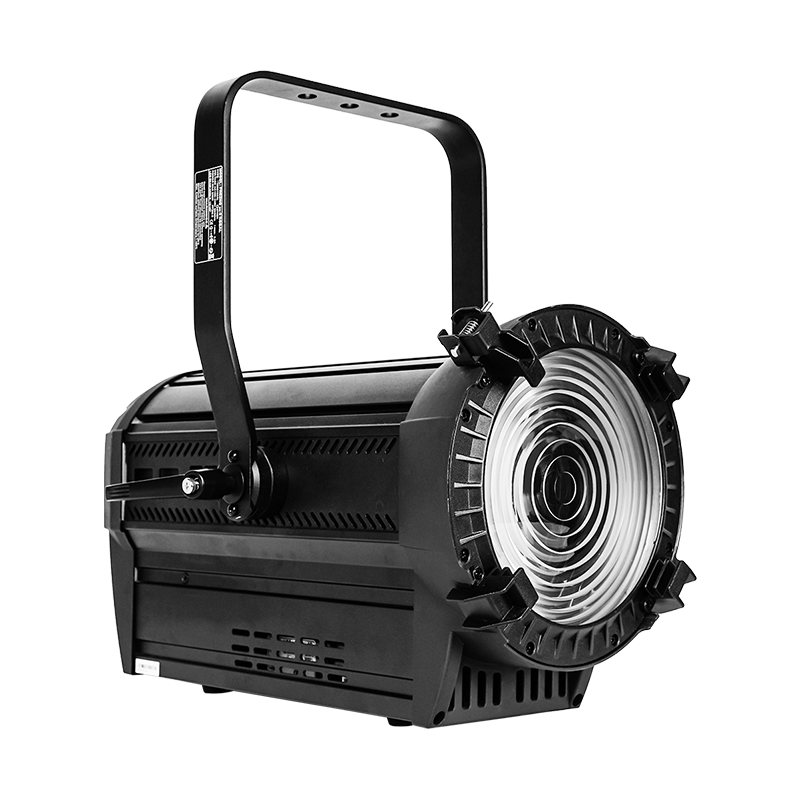

As an innovative 5 color Fresnel, FREZNO ze-2RGBAL is applied with high-effective optics system, thus generating in excellentcolor-mixing performance. With HSIC intelligent system, you can mix any color you wanted easily. Color temperatures from 1800K to 10000K, 16 kinds of professional color are programmed. It is an ideal product for professional lighting in TV station, studio, exhibition, conference hall, theater etc.
DETAILS
Optical system
Light source
200W LED RGBAL
CCT
1800K-10000K
angle
15°-60°
CRI
SS5251XAL:Ra：95 ; R9:95 SS815XAL:Ra≥90
Appearance
Size

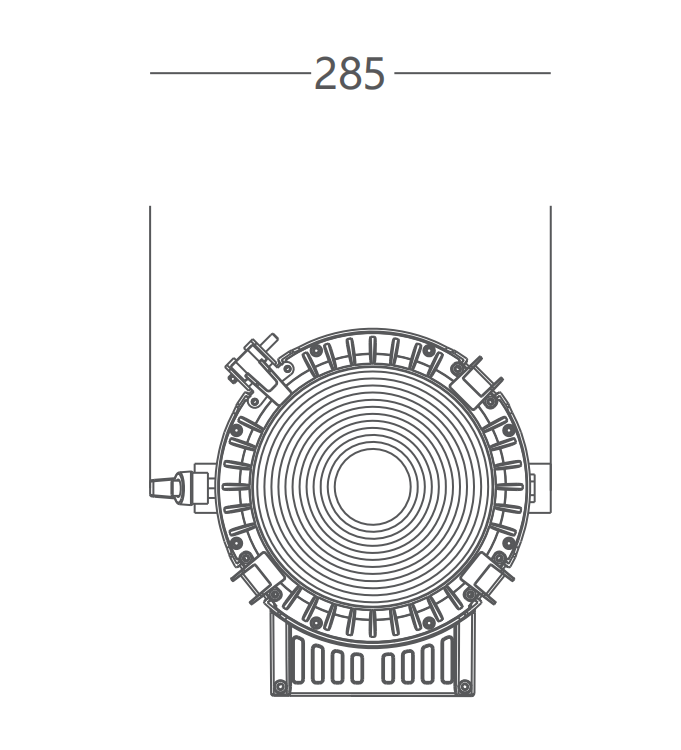

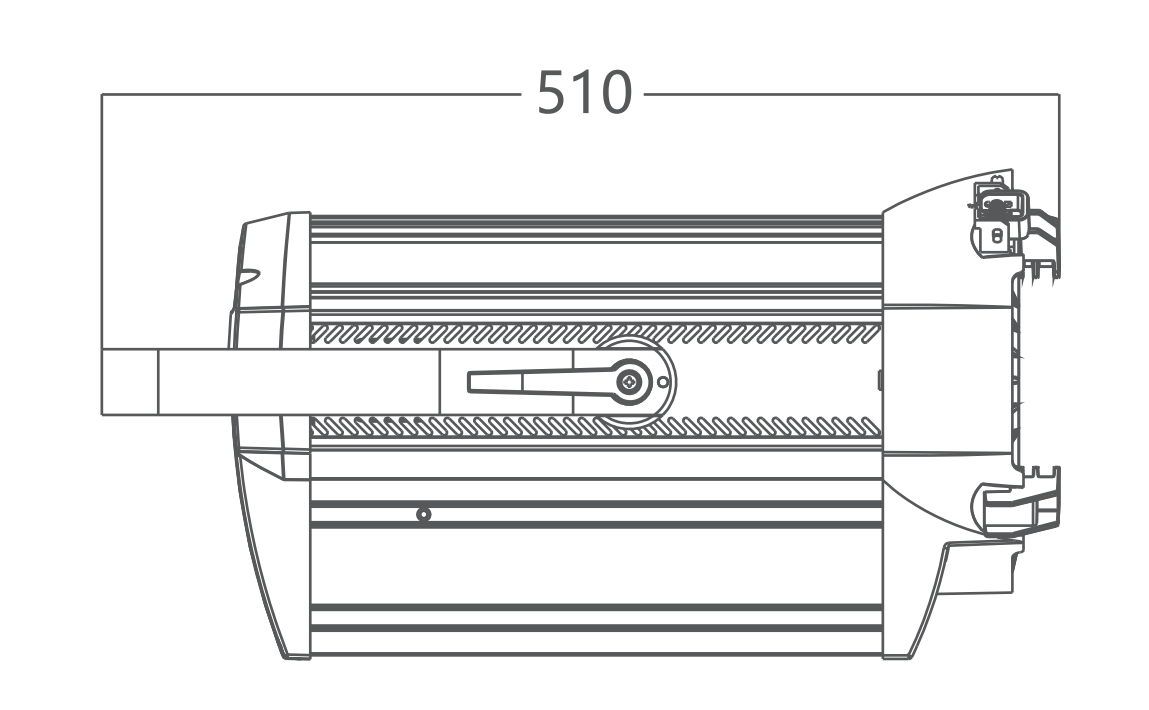

510x285x261mm
Weight
7.6kg
Casing
Extruded aluminum
Color
Black
Electrical Specs
Voltage
AC100-240V，50/60Hz
Max. Power
SS5251XAL:200W SS815XAL:240W
Power Connection
Power in and out
DMX XLR
DMX in and out
Control System
Dimmer
0-100% 16Bit
Cooling
Forced Convection
Control
DMX512、RDM
Con Personality
HSIC(8CHS)、SSP(9CHS) 、TOUR(13CHS)、TR16(19CHS)
Display
On board Control, 0-25Hz Strobe
Work Environment
Ambient Temp
0℃-45℃
IP Rated
IP20
Certification
CE、MET
