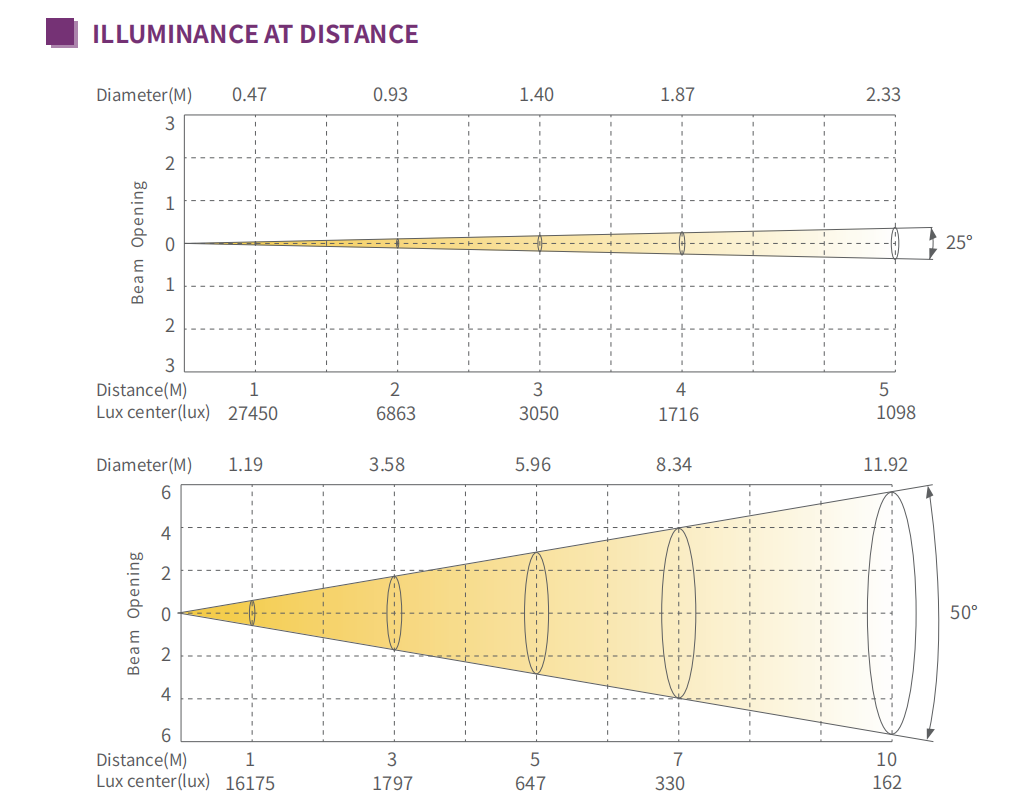

ILLUMINANCE
EC3

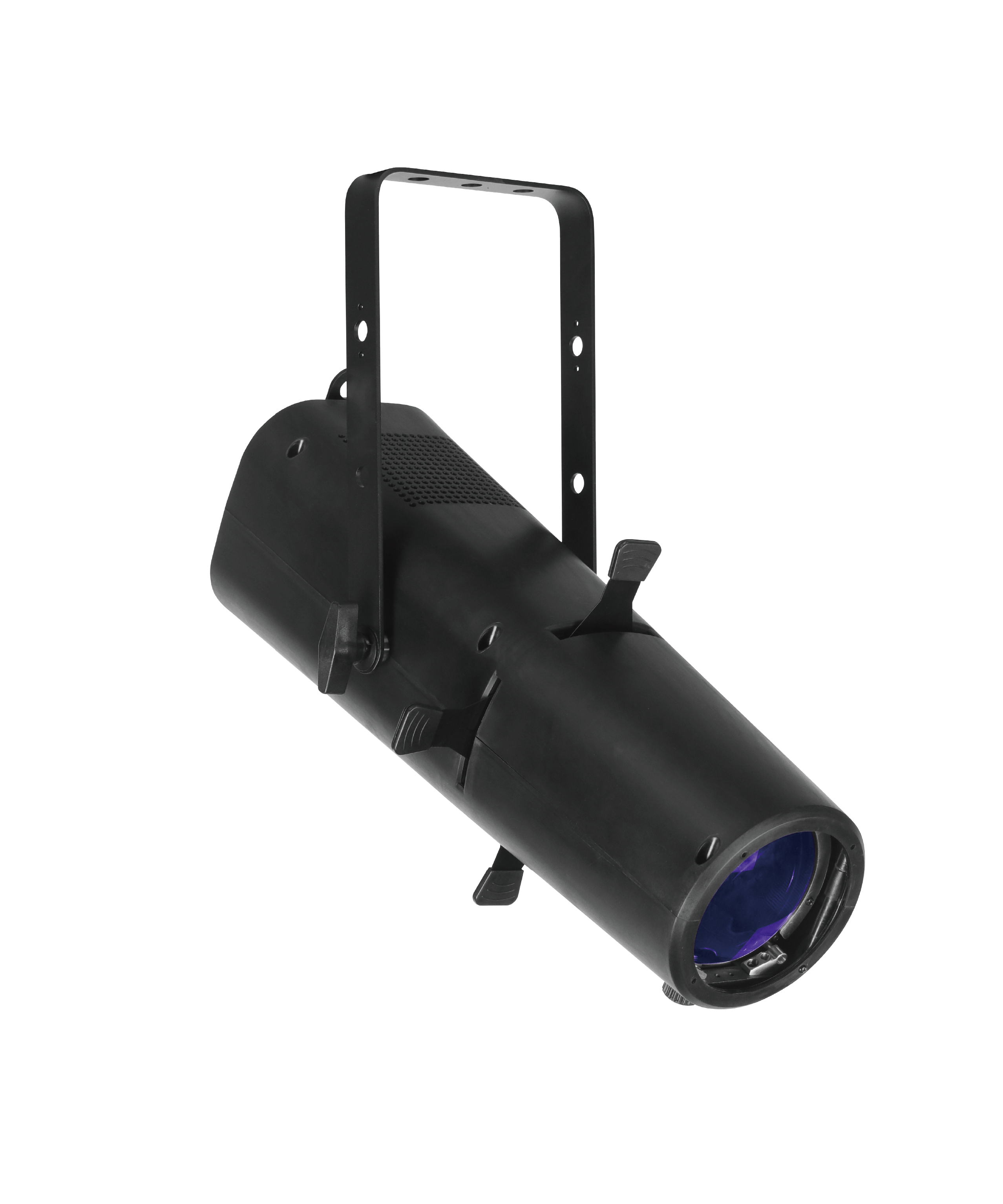

ECLIPSE MID COLOR 180 is a compact and lightweight 5 colors profile, with uniform color mixing, clear shaping. Equipped with intelligent color management system CCS3.0, to ensure the color consistency. Built-in 1800-10000K high CRI CCT and 48 frequentely-used colors. Its Integrated structural design, holding the Shutter framing system, and manual zoom 25-50°. It is born for theaters,multi-functional hall, church, conference room, and TV stations etc.
DETAILS
Optical system
Light source
150W RGBAL
CCT
1800K-10000K
CRI Ra
93
Angle
Manual Zoom 25-50°
Appearance

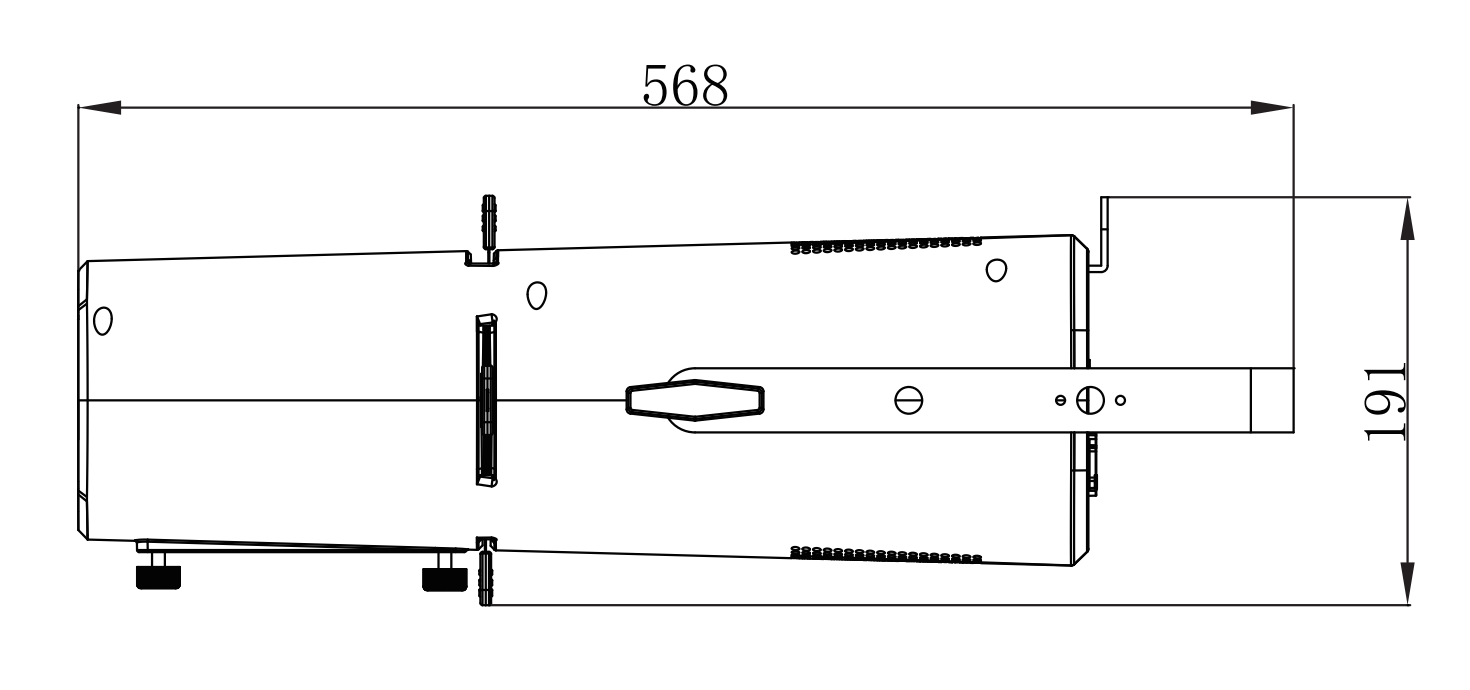

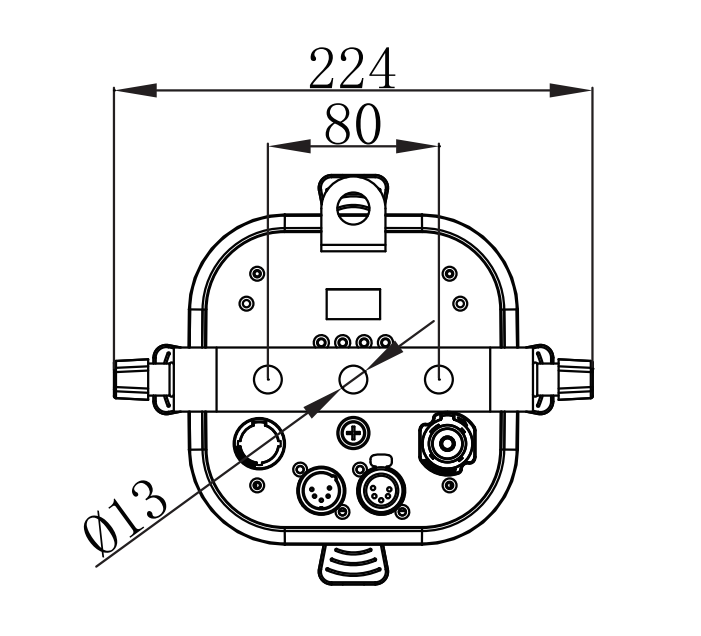

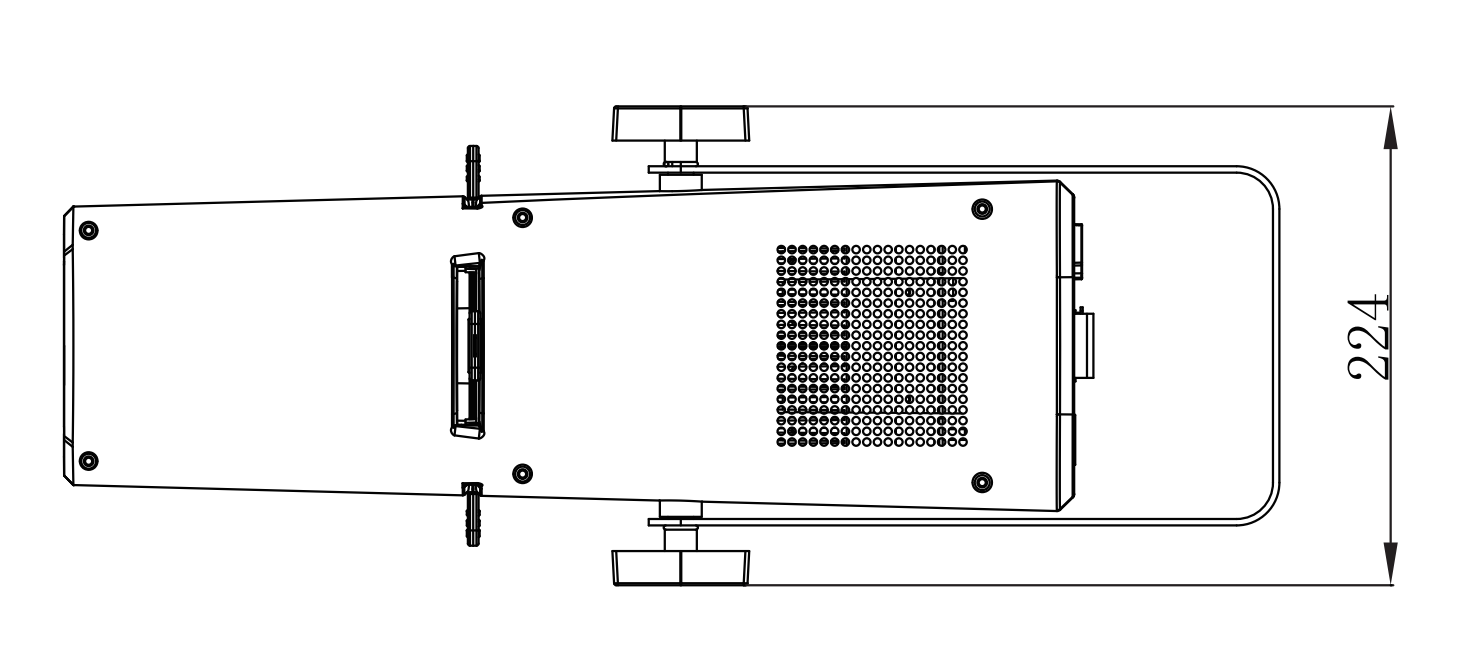

Size
568x224x191mm
Weight
6.1kg
Casing
Flame-retardant plastic (V0)
Color
Black
Control System
Dimmer
0-100%16Bit
Cooling
Forced Convection
Control
DMX/RDM
Display
On board Control,0-25Hz Strobe
Con Personality
BASIC(3CHS)、SSP(7CHS)、TOUR(12CHS)TR16(18CHS)、HSIC(7CHS)、CMY(10CHS)
Framing system
4 blades, manual shutter
Electrical Specs
Voltage
100-240VAC
Max,Power
15W
Power Connection
Power in
Power Connection
Power in
Work Environment
Ambient Temp
0℃-45℃
IP Rated
IP20
Certificating
Certificating
CE、MET
