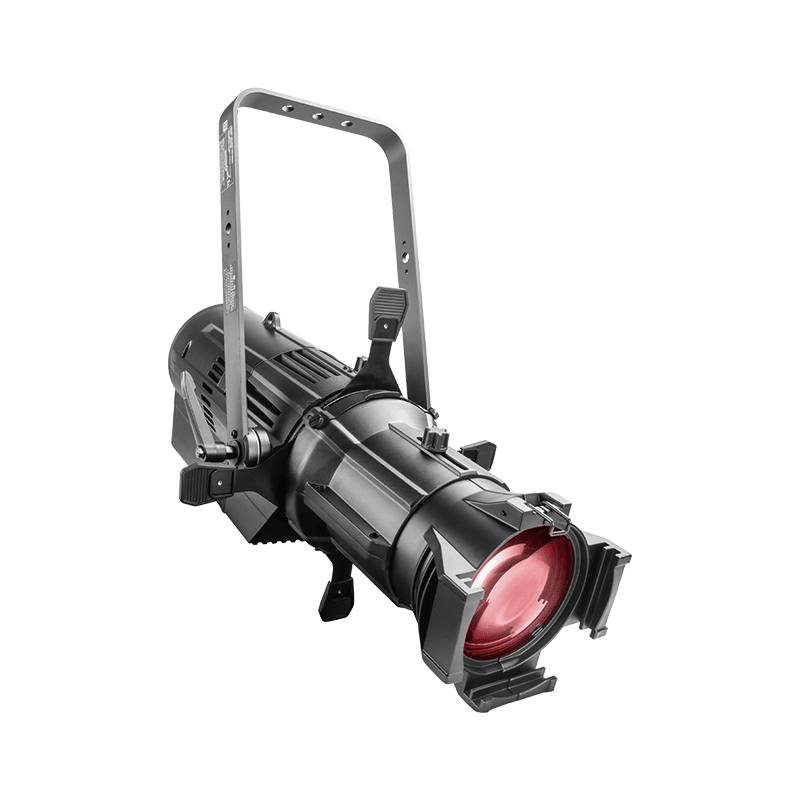

The ECLIPSE 1000 RGBAL is using the innovative 5 colors optic design. It comes with intelligent HSIC color management system, can easily pick up all colors you need. With precise preset 16 common colors, 1800K-10000K CCT, the perfect dimming curve, and the crystal-clear projection, and also it compatible with all our existing popular lenses. The ECLIPSE 1000 RGBLA is designed for the professional theatre / opera / rental / show applications!
DETAILS

Optical system

Light source
250W LED
CCT
1800K-10000K
CRI
SS847XAL:Ra>90;R9:94 SS5152XAL:Ra:95:R9:95
Angle
5°/10°/14°/19°/26/36°/50°/15-30/25-50

Appearance

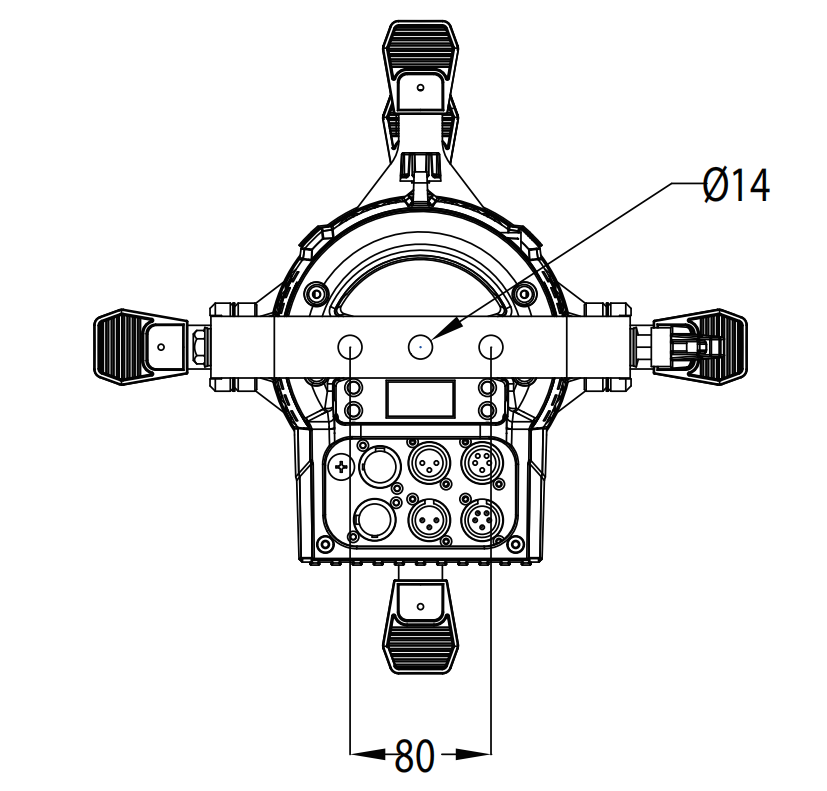

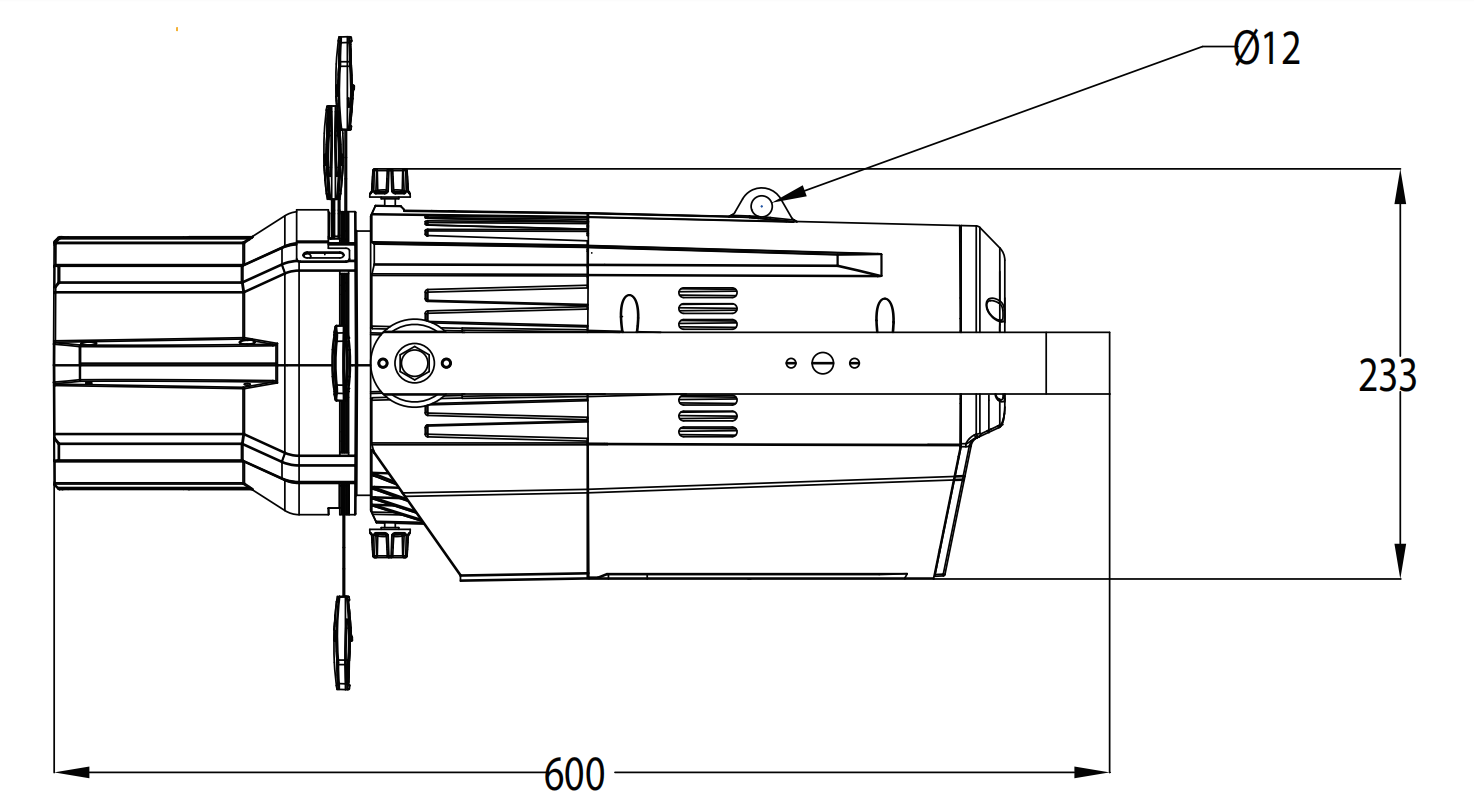

Size
600x370x370mm
Weight
8.3kg
Casing
Die-cast aluminum
Color
Black

Control System

Dimmer
0-100%16Bit
Cooling
Forced Convection
Control
DMX512、RDM
Display
On board Control,0-25Hz Strobe
Con Personality
HSIC(8CHS),SDO(6CHS),SIMPLE(8CHS),COLOR8BIT(11CHS),COLOR 16BIT(17CHS)

Electrical Specs

Voltage
AC100-240V,50/60Hz
Max,Power
300W
Power Connection
power in and out
DMX XLR
DMX in and out

Work Environment

Ambient Temp
0℃-45℃
IP Rated
IP20

Certificating

Certificating
CE、MET
