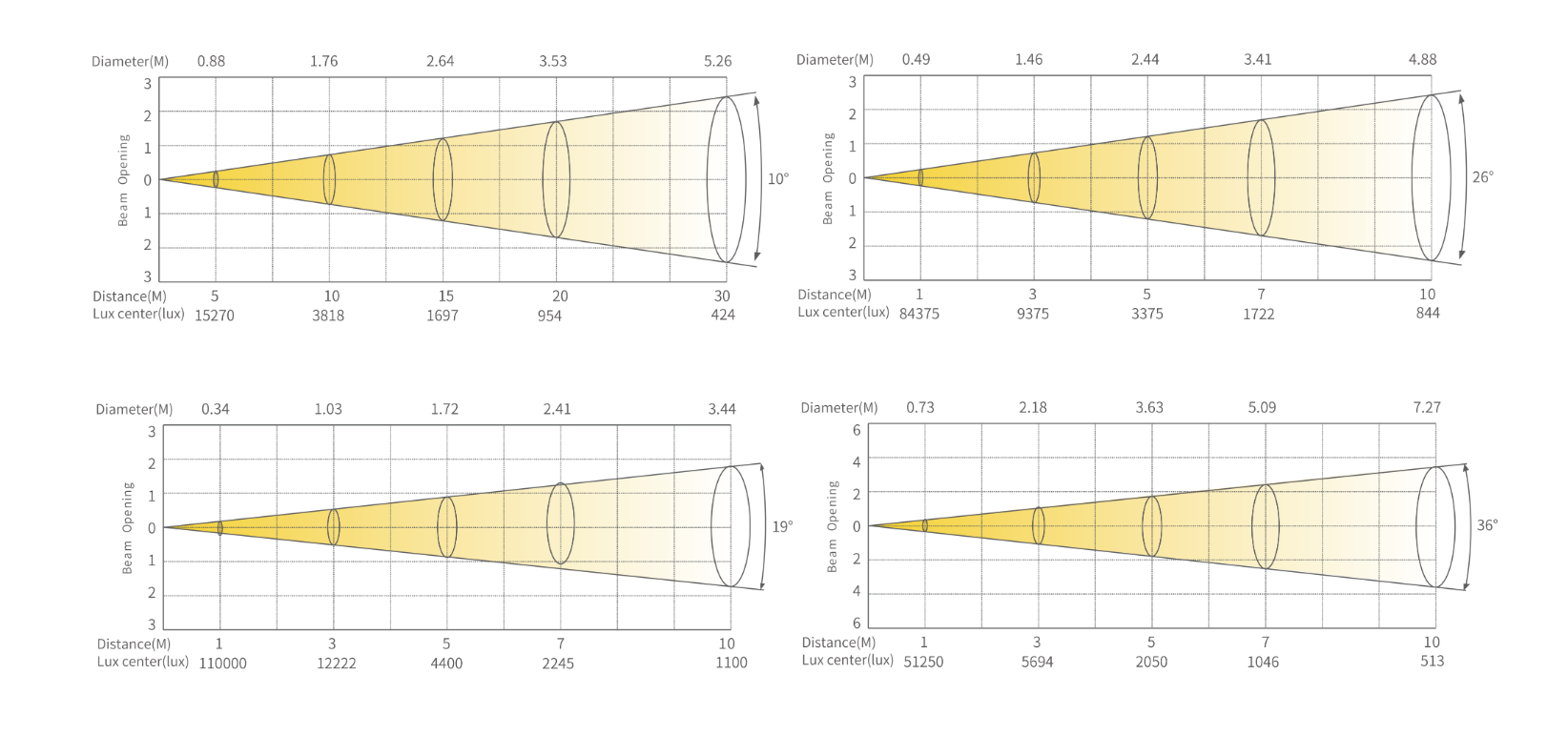

ILLUMINANCE

EC5

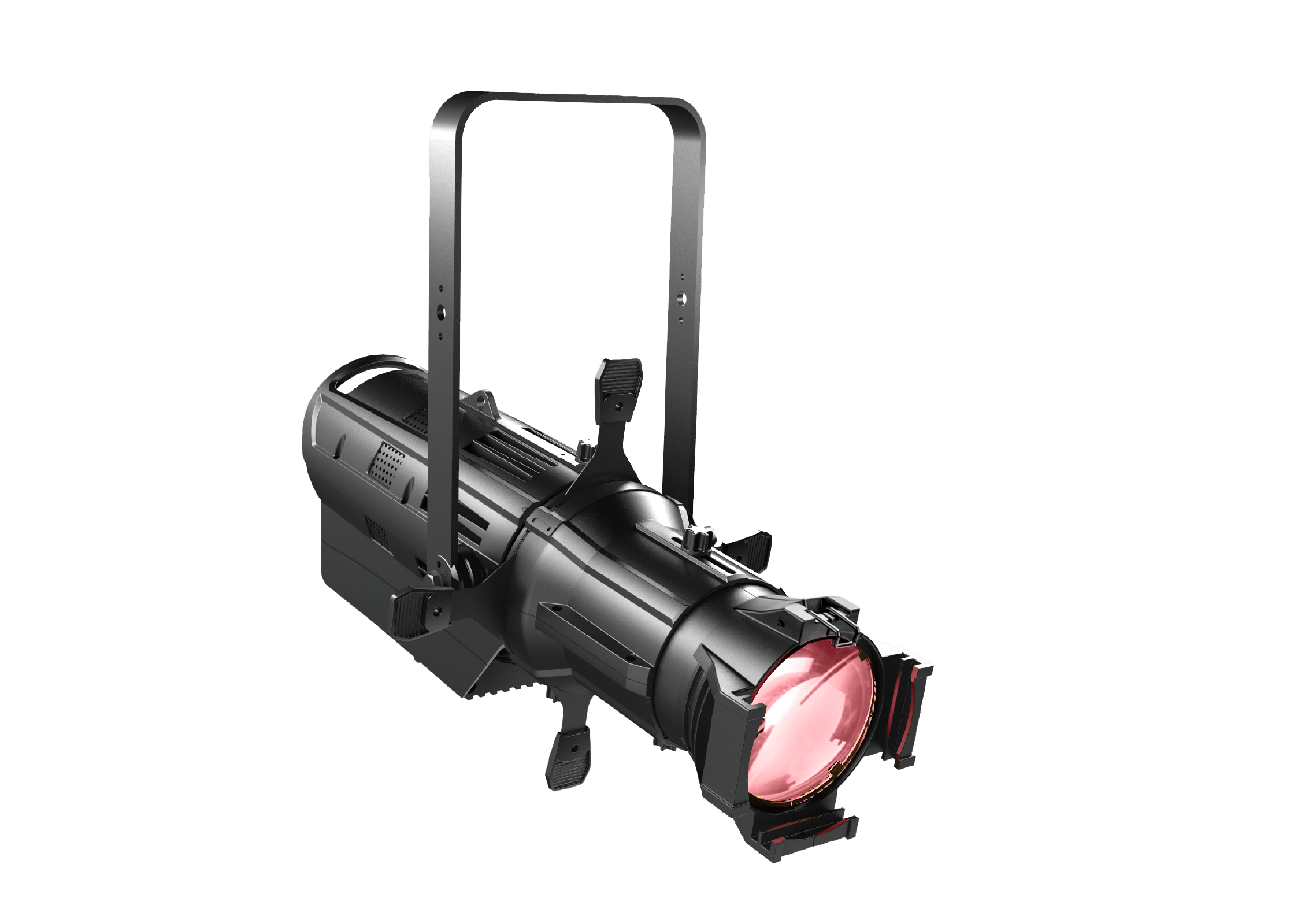

ECLIPSE PRIME HEX is a outstanding RGBALC 6 color profile, covering full color range. It is compated with CCS technology, precised CCT from 1800-10000K, reaching super high CRI ≥90. ECLIPSE PRIME HEX also has the perfect dimming curve and crystal-clear projection. It's designed for theater, opera, TV, rental and show applications!
DETAILS

Optical system

Light source
270W RGBALC
CCT
1800K-10000K
Angle
5°/10°/14°/19°/26°/36°/50°/15°-30°/25°-50°
CRI Ra
95
CRI R9
90
CQS
95
TLCI
80

Appearance

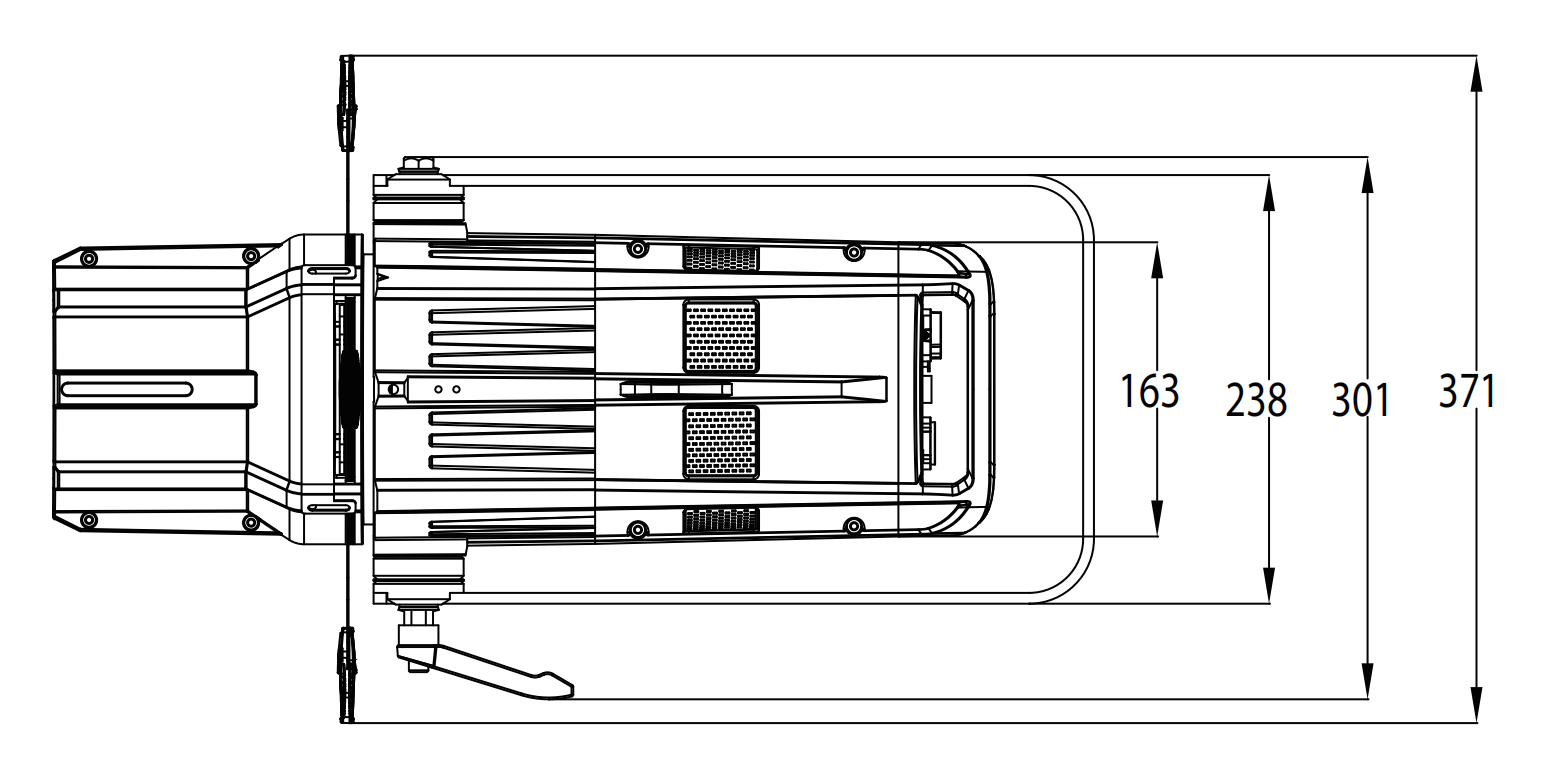

Size
578x371x226mm
Weight
8kg
Casing
Die-cast aluminum
Color
Black

Control System

Dimmer
0-100%16Bit
Cooling
Forced Convection
Control
DMX512、RDM
Display
On board Control,0-25Hz Strobe
Con Personality
BASIC(3CH)SSP(8CH)TOUR(13CH)TR16(20CH) HSIC(7CH)CMY(10CH)

Electrical Specs

Voltage
AC100-240V,50/60Hz
Max,Power
280W
Power Connection
powerin and out
DMX XLR
3pin or 5pin in and out

Work Environment

Ambient Temp
0℃-45℃
IP Rated
IP20

Certificating

Certificating
CE、MET

DOWNLOAD

leaflet

ECLIPSE PRIME HEX-leaflet 2024-11-15
DOWNLOAD

user manual

ECLIPSE PRIME HEX 2023-11-13
DOWNLOAD

AVOLTES

SS5151XH(AVOLITES) 2023-11-01
DOWNLOAD

MA2

SS5151XH(MA2) 2024-11-14
DOWNLOAD

GDTF

SS5151XH(GDTF) 2024-05-09
DOWNLOAD
