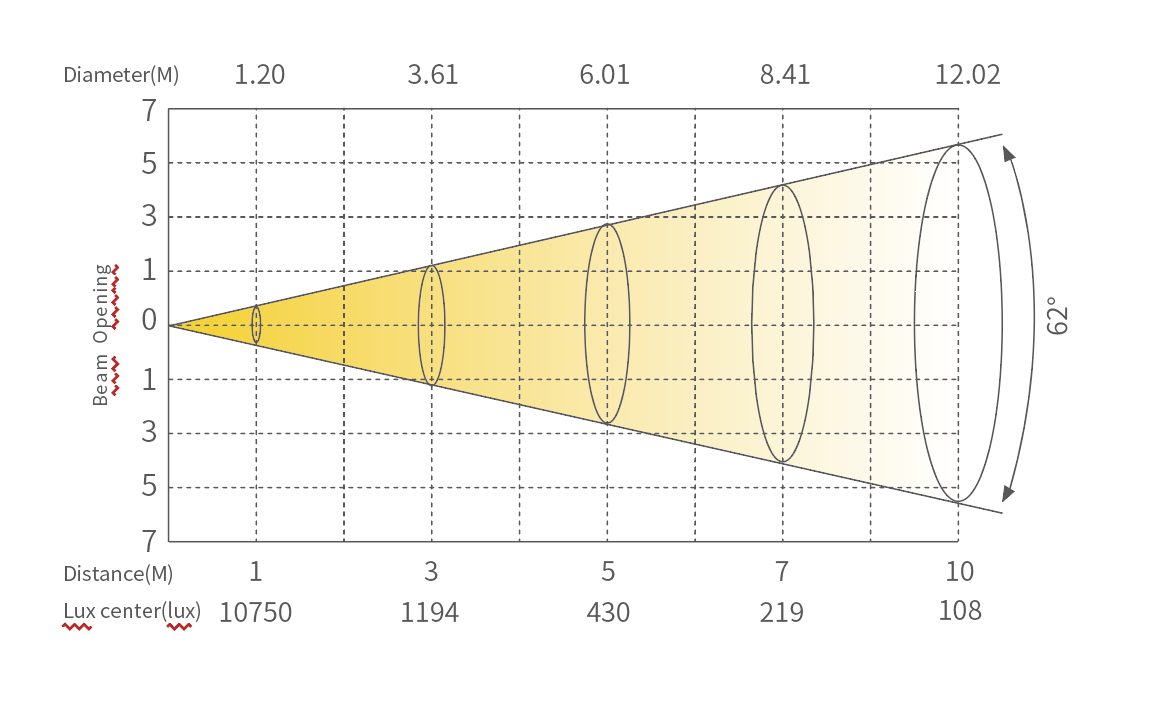

ILLUMINANCE

SP6

PLANO 300 HEX is a Hex color IP65 soft panel light, born to meet the harsh light quality requirements of the studio scene, with ultra-efficient optic, beautiful color mixing, uniform, even and elegant light. Equipped with uunique “CCS” technology, make sure the color consistency in each batch. Built-in 1800-10000K high CRI CCT, Superb smooth dimmer curve, 0-100% dimming flicker free. With NFC, Bluetooth quick parameter setting function, as well as an easy-operated USB port for upgrade software. The PLANO 300 HEX is ideal choice for outdoor photography, TV studio, theatre, concert, multifunctional hall and rental performance space.
DETAILS

Optical system

Light source
R*260pcs,G*130pcs,B*130pcs, A*130pcs,L*130pcs,C*130pcs
Beam angle
62°
Field angle
100°
CCT
1800-10000K
CRI Ra
96
TLCI
91
CRI R9
97
CQS
94

Control System

Dimmer
0-100%16Bit
Cooling
Forced Convection
Control
DMX512、RDM、W-DMX(optional)、NFC、Bluetooth
Display
BASIC/SSP/TOUR/TR16/HSIC/CMY
Con Personality
UNO(1CHS)

Appearance

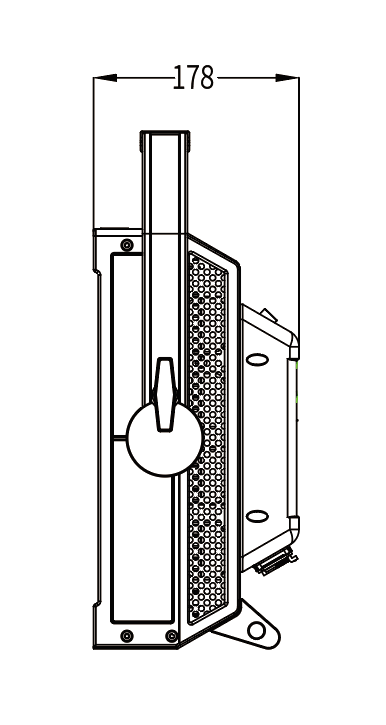

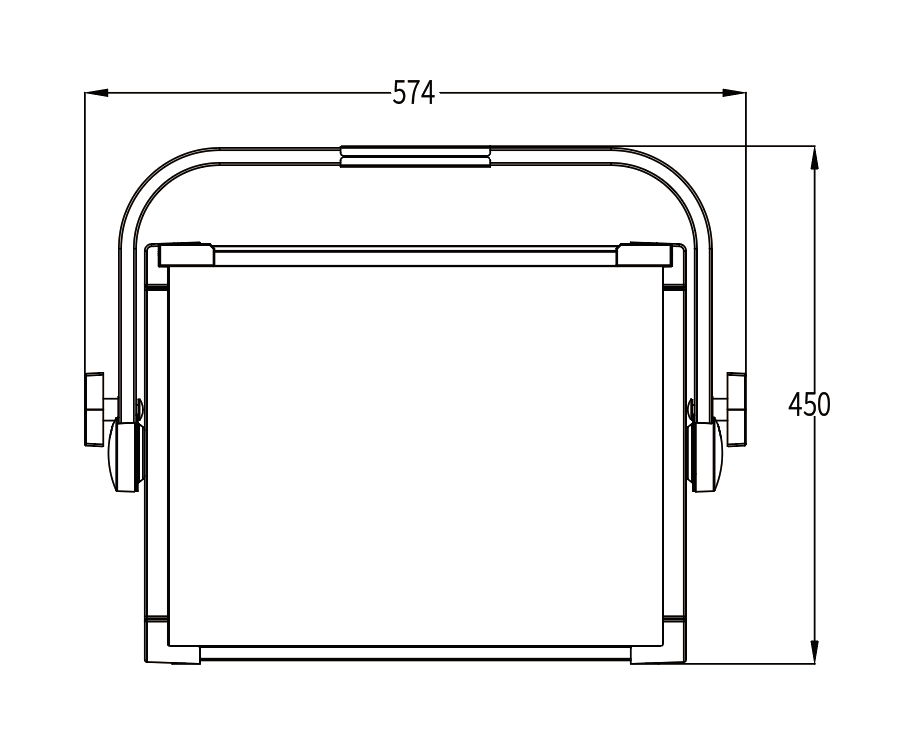

Size
450x178x574 (mm)
Weight
12.8kg
Casing
Extruded aluminum
Color
Black

Electrical Specs

Voltage
AC100-240V
Battery Input
DC24-36V
Max. Power
300W
Power Connection
Power in and out
DMX XLR
3pin or 5pin in and out
Battery Connection
4pin XLR

Work Environment

Ambient Temp
—20—45℃
IP Rated
IP65

DOWNLOAD

Leaflet

PLANO 300 HEX- leaflet 2024-04-22
DOWNLOAD

User manual

PLANO 300 HEX- SS5552XHM -specification 2023-11-01
DOWNLOAD

MA2

SP6-SS5552(MA2) 2024-10-16
