PHOTOS
VIDEOS

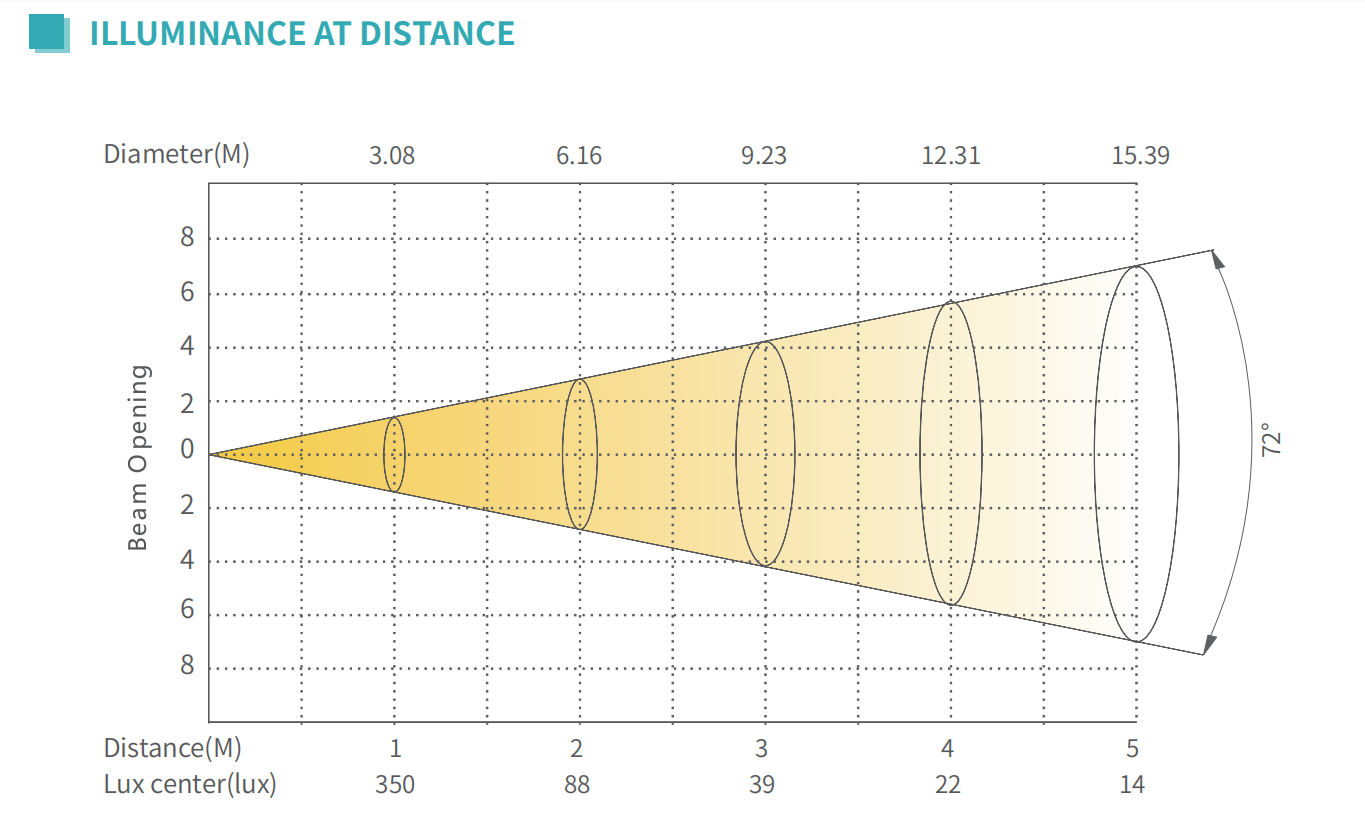

ILLUMINANCE

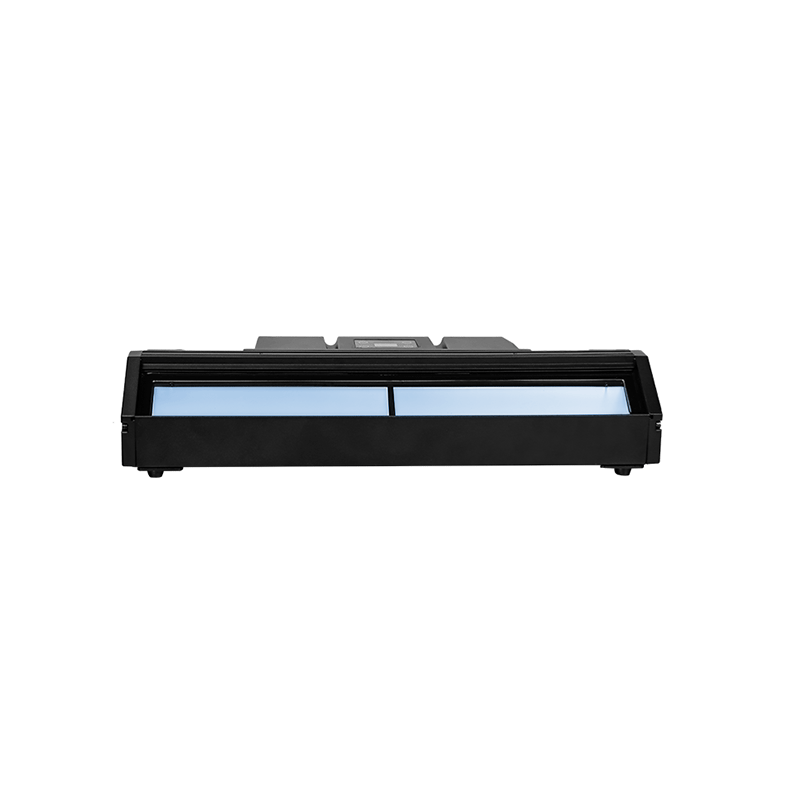

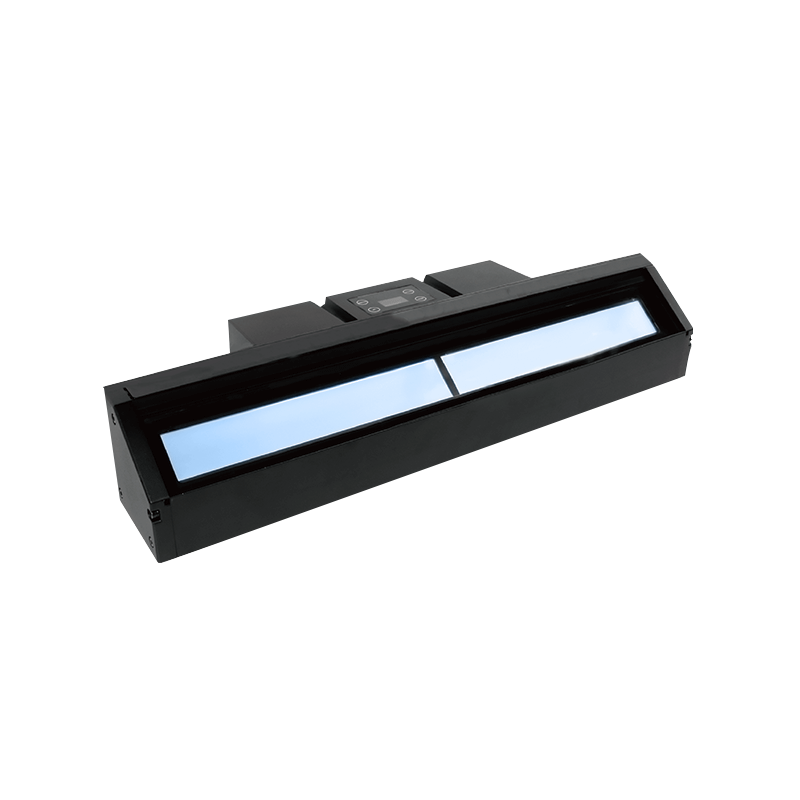

TF3

It is a new waterproof foot light with uniform color mixing, soft light for large coverage. The software carries the unique CCS3.0 intelligent color management system ensures the consistency of light color. Built-in 1800-10000 K linear adjustment of CCT and 24 kinds of commonly used colors. It is ideal tool for indoor auxiliary surface lighting, foot lighting applications, outdoor cultural and tourism performances, event and shows.
DETAILS

Optical system

Light source
R*36PCS、G*36PCS、B*36PCS、W*36PCS
Angle
72°
TYP. CRI
95

Control

Dimmer
16Bit
Cooling
Direct Convection
Control
RDM/DMX
Display
On board Control, Custom Mode,0-25Hz Strobe
Con Personality
HSIC(7CH),SSP(7CH),TOUR(12CH),TR16(17CH),BLOCK1(9CH) BLOCK2(15CH),CMY (10CH)

Appearance

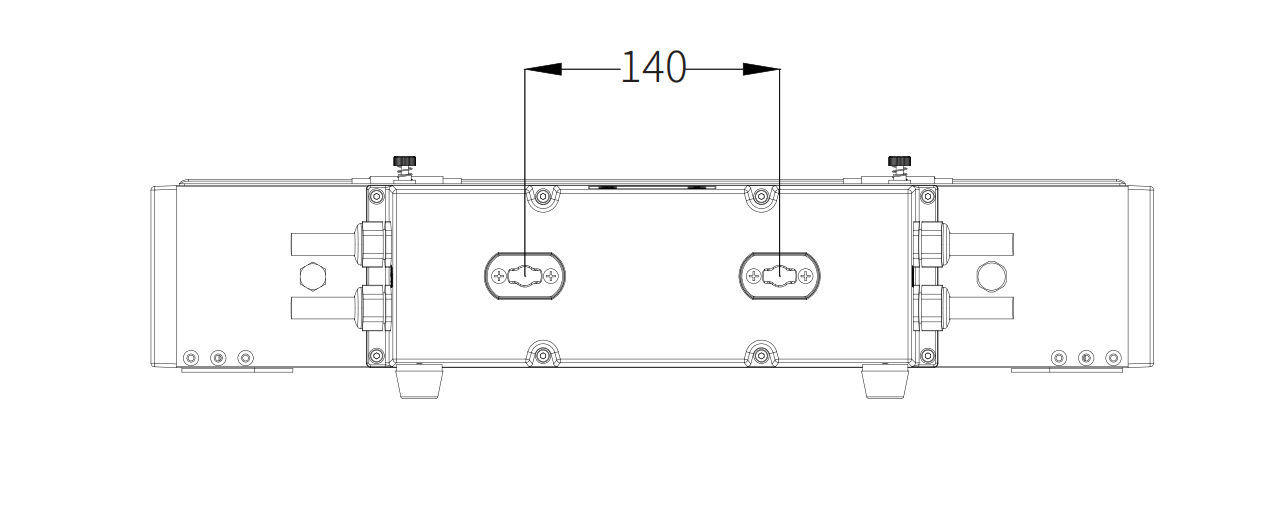

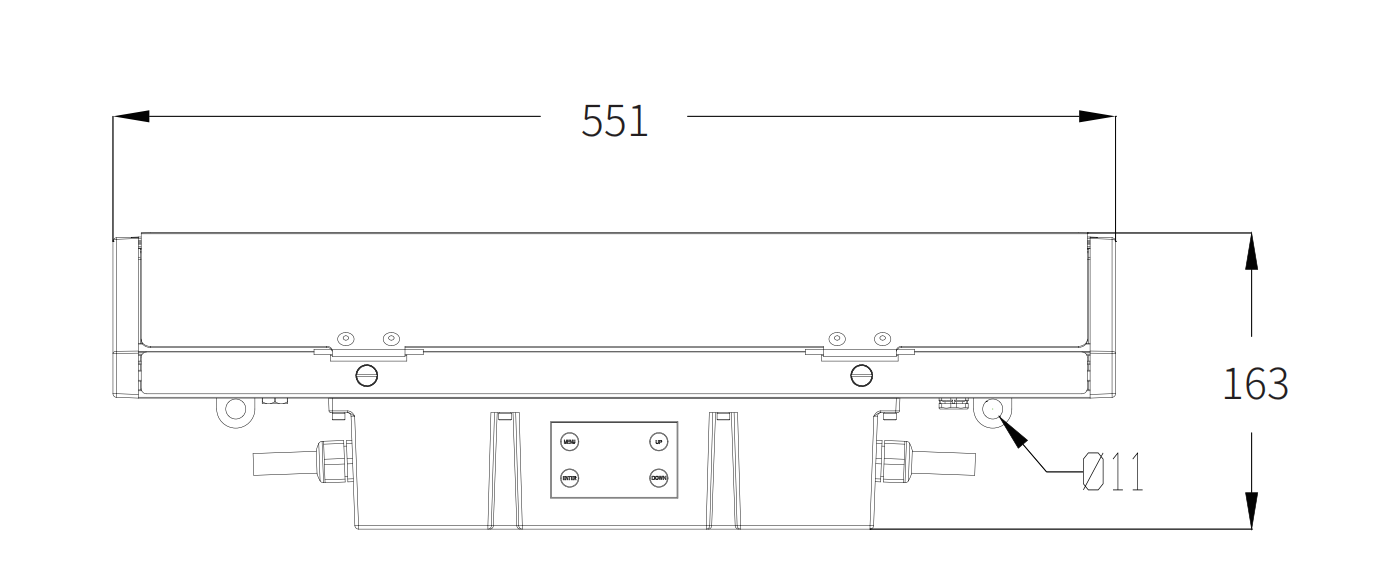

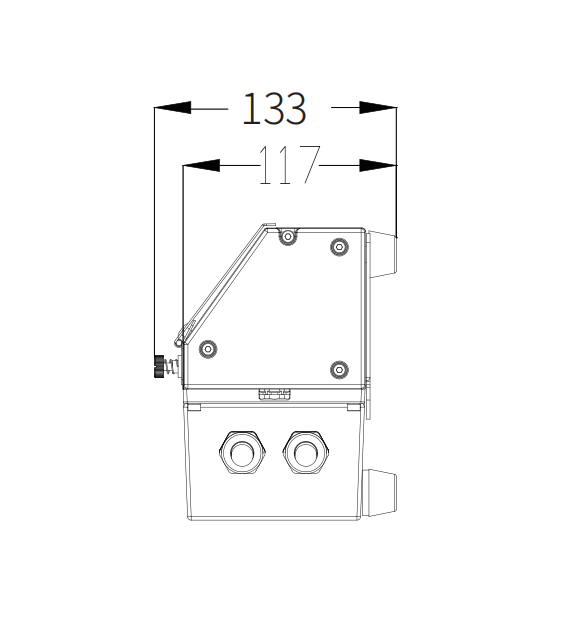

Size
551x163x133mm
Weight
7.5kg
Casing
Die-cast Aluminum

Electrical

Voltage
100-240VAC
Max. Power
70W
Power Connection
Power in/out
DMX XLR
DMX in/out

Work Environment

Ambient Temp
-20℃-45℃
IP Rated
IP66

Certification

Certification
CE
