BX

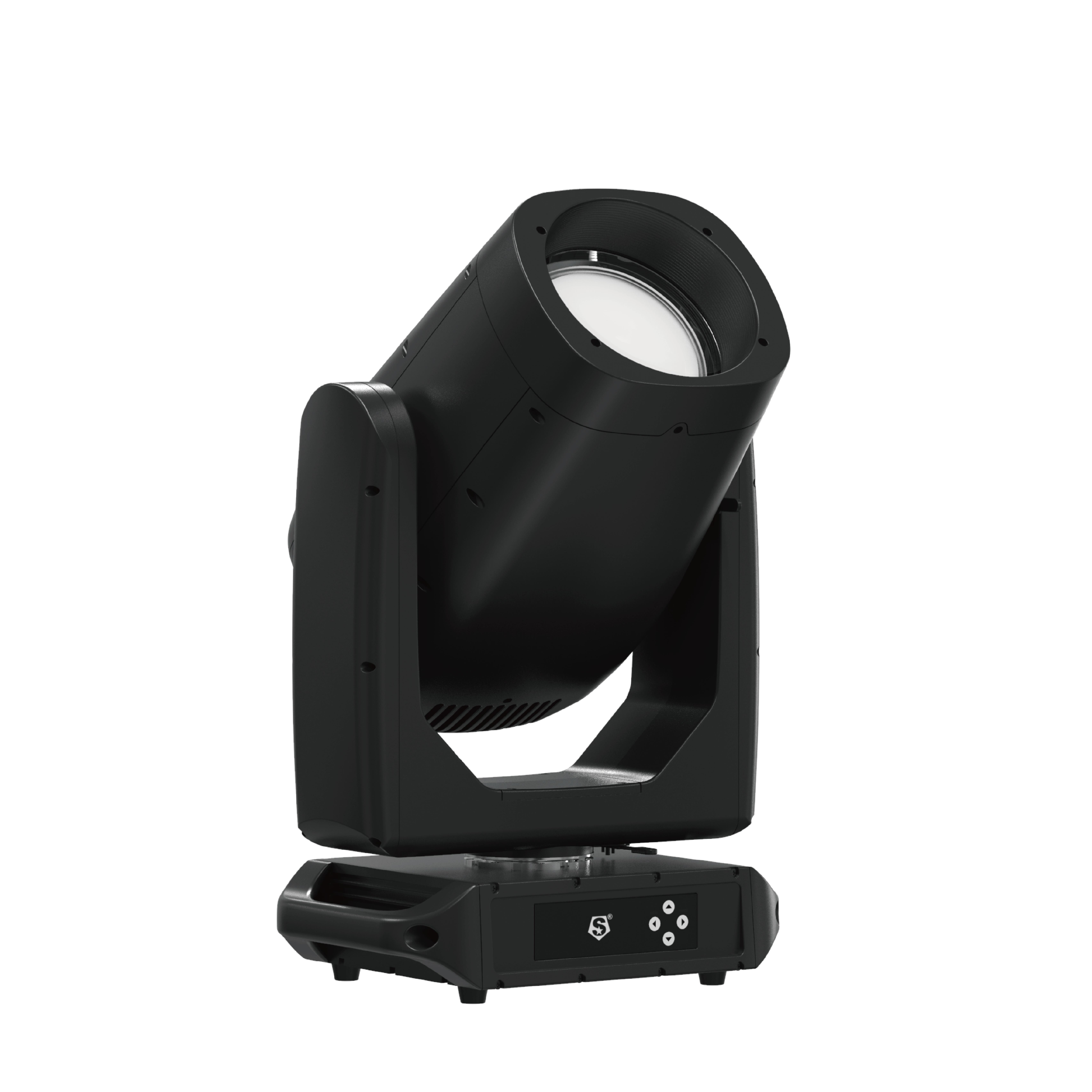

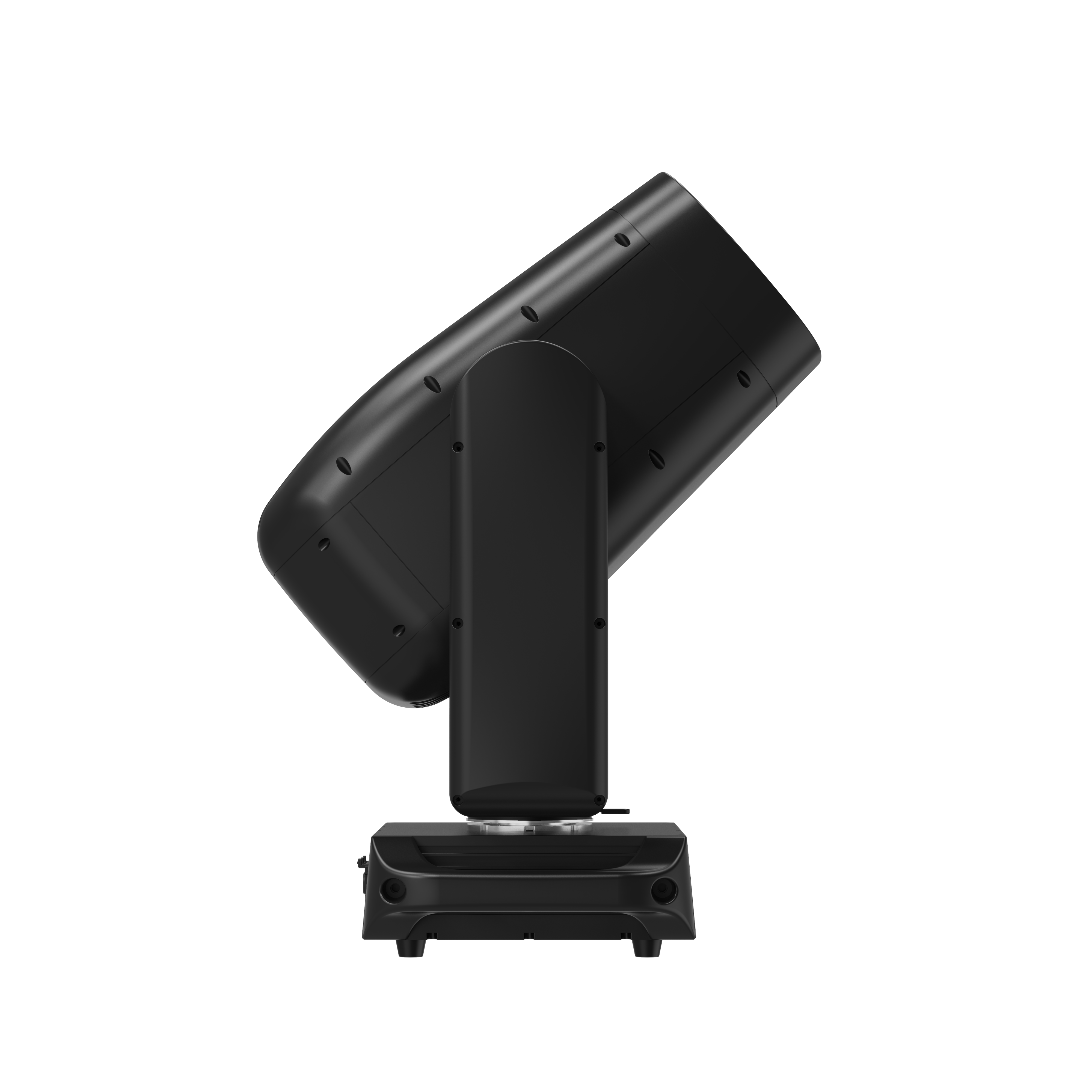

Neptune BX Unique X optical design, one innovative lamp can create infinite extension effect,100W laser light source.super large light-emitting lens 180mm, extremely narrow beam angle 0.7° ,close to parallel beam, The beam effect is strong and with a sharp edge, it is formed with high-efficiency optic, suitable for urban landscape, cultural tourism lighting, concerts, theme parks and medium to large scale application.
DETAILS
PRODUCT PARAMETERS
Optical system
Light source
100W LASER
Lens diameter
180mm
Angle
0.7°-5°

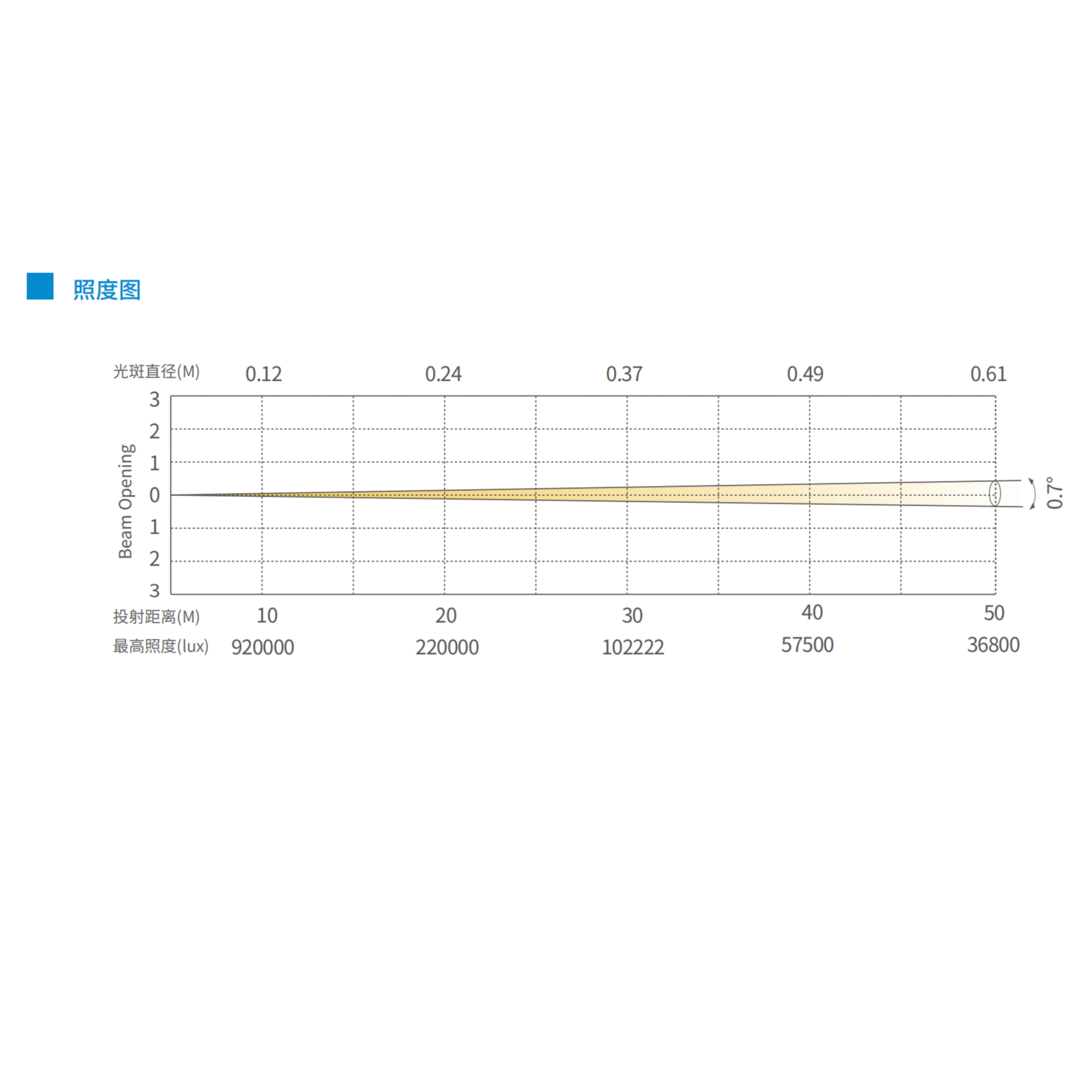

Illuminance
20m@220,000lx ( 0.7°)
Control System
Pan/Tilt rotation
540°/270°(8-16bit)
Dimmer
0-100% 24Bit
Cooling
Forced Convection
Display
On Board Control, Custom Mode. 0-25Hz Strobe
Control
DMX512、RDM、ARTNET、SACN、W-DMX(optional)、Bluetooth
Effect synthetic system
Static Gobo
19 gobos+white
Colors
One color wheel(19 color+white, rainbow-floweffect)
Rotating Gobo
6 gobos
Prism
One 24 prism +One 8 prism, bidirectional rotating speed can be adjusted
Frost
1 Frost filter.bidirectional rotating
CMYK
CMY
Appearance

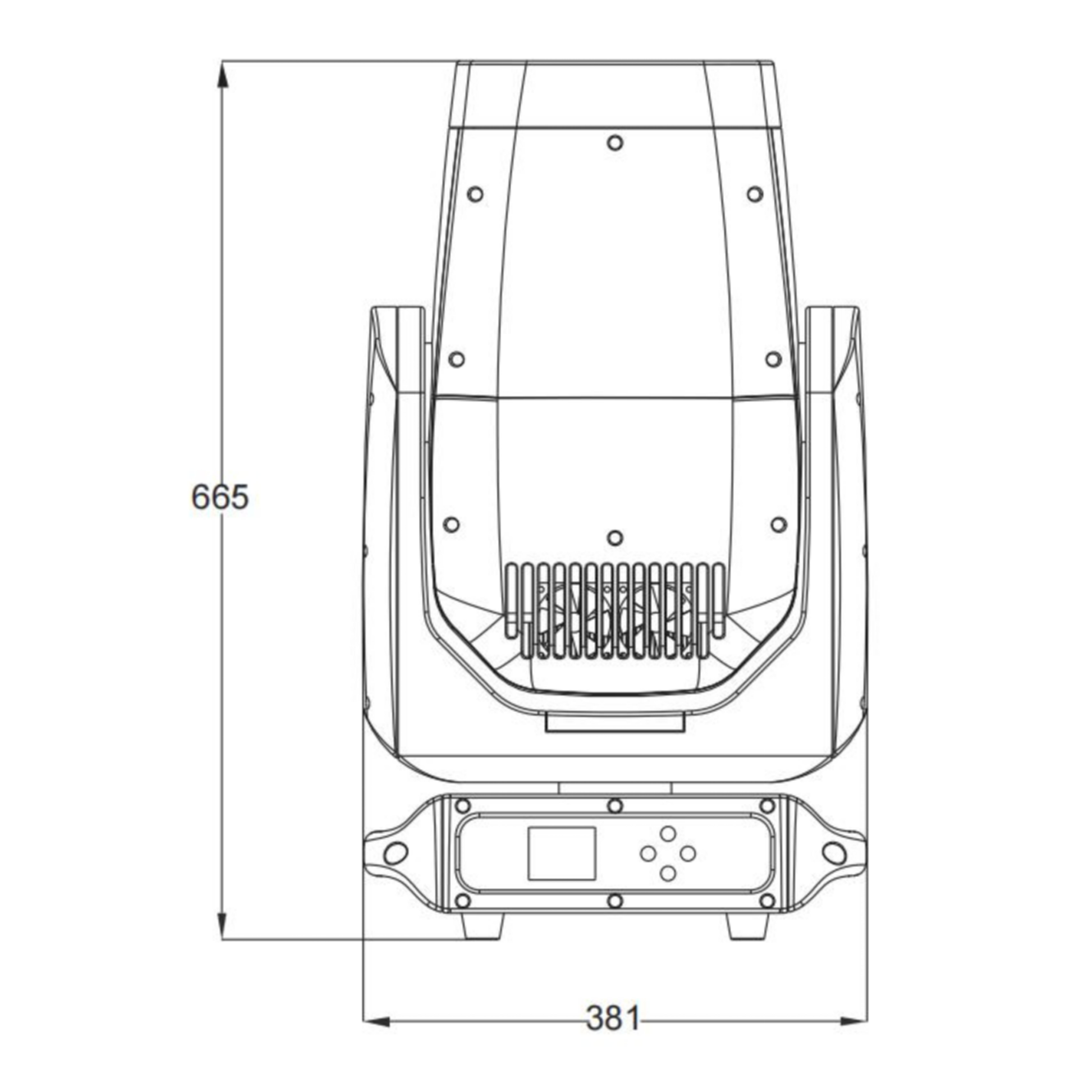

Size
381x280x665mm
Weight
26.7kg
Casing
Magnalium and Die-cast
Color
Black
Electrical Specs
Voltage
AC100-240,50/60Hz
Max.Power
270W
Power Connection
Seetronic power input and output
Signal socker
3pin or 5pin in and out, RJ45 in and out, USB-C
Work Environment
Ambient Temp
-20°C-45°C
IP Rated
IP66
