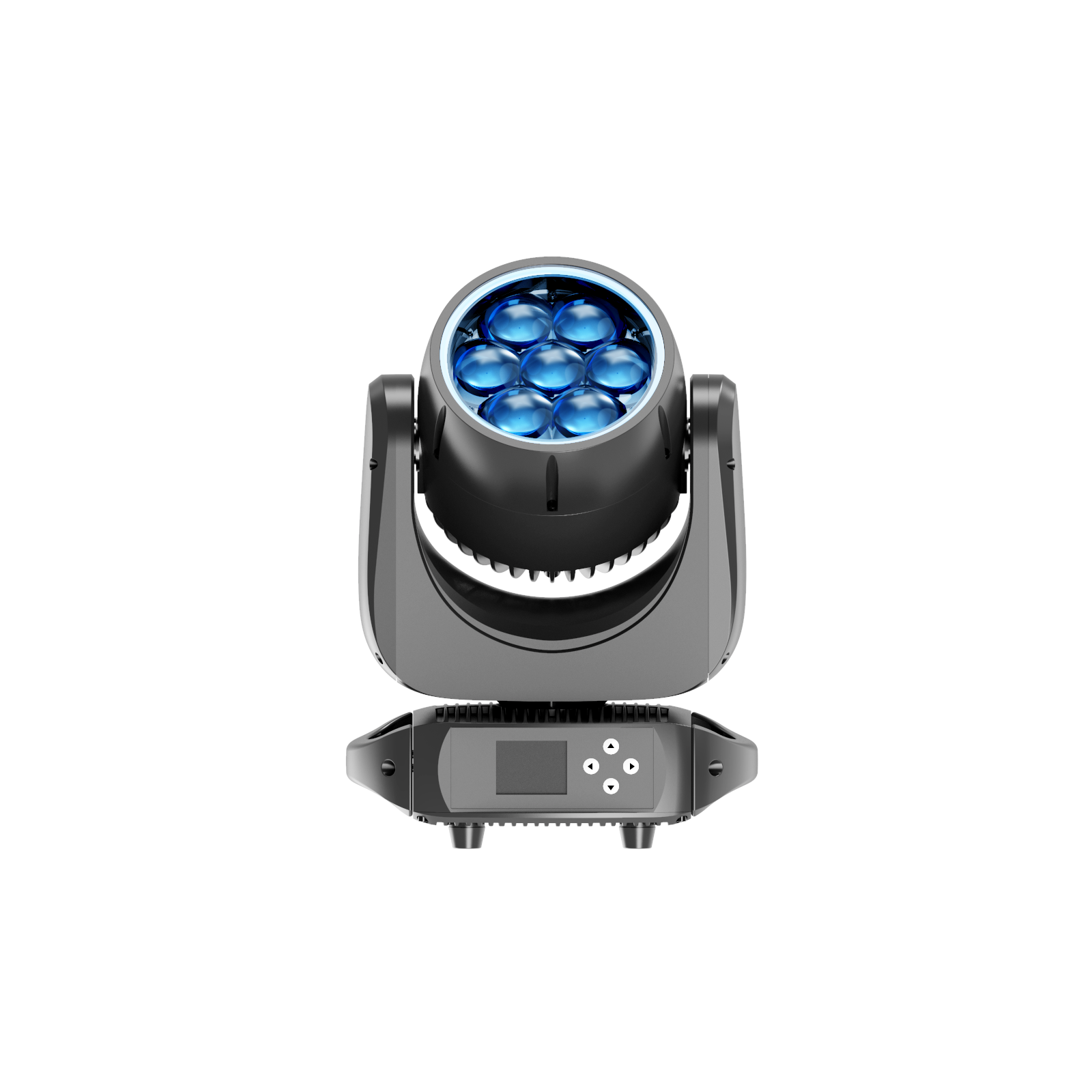

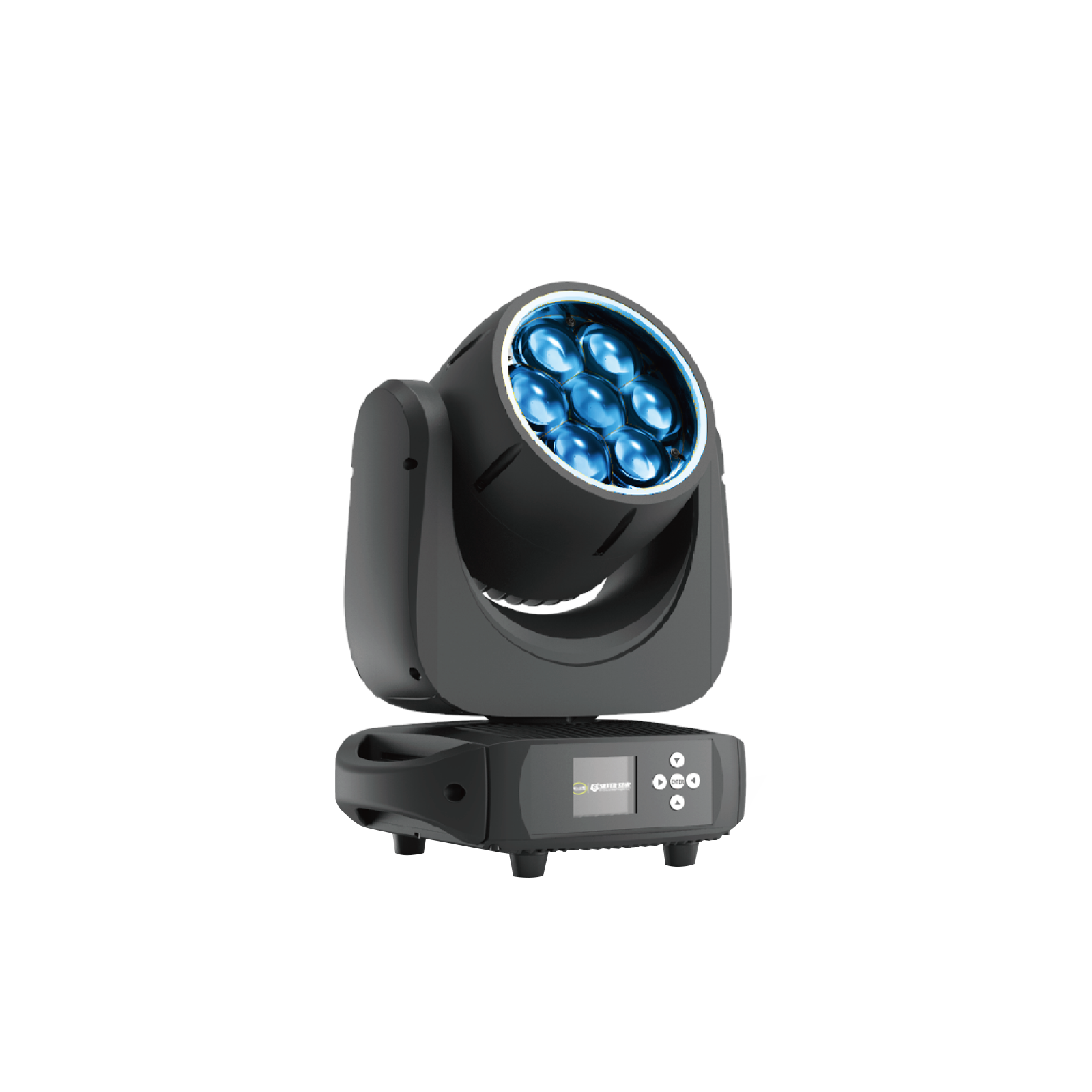

NW3
New ear of IP66 moving beam wash with high efficient RGBL resource, ultra-wide zoom range, excellent beam and wash effects. Light weight and compact design, super fast and accurate XY performance. It is suitable for both outdoor or indoor events, road shows, concerts, operas, banquets and various performance .
DETAILS
Optical system
Light source
7*40W RGBL
Beam angle
3.5-35°
Field angle
5-50°
LED Ring
RGB Ring
Control System
Pan/Tilt rotation
540°/220°(8-16bit)
Dimmer
0-100% 16Bit
Cooling
Forced Convection
Control
DMX512、RDM、W-DMX（optional）
Display
On board Control, Custom Mode, 0-25Hz Strobe
Con Personality
HSIC\SSP\TOUR\TR16\CMY\PIXEL
Special
Pan/Tilt movement blackout,User-selectable pan/tilt ranges
Appearance

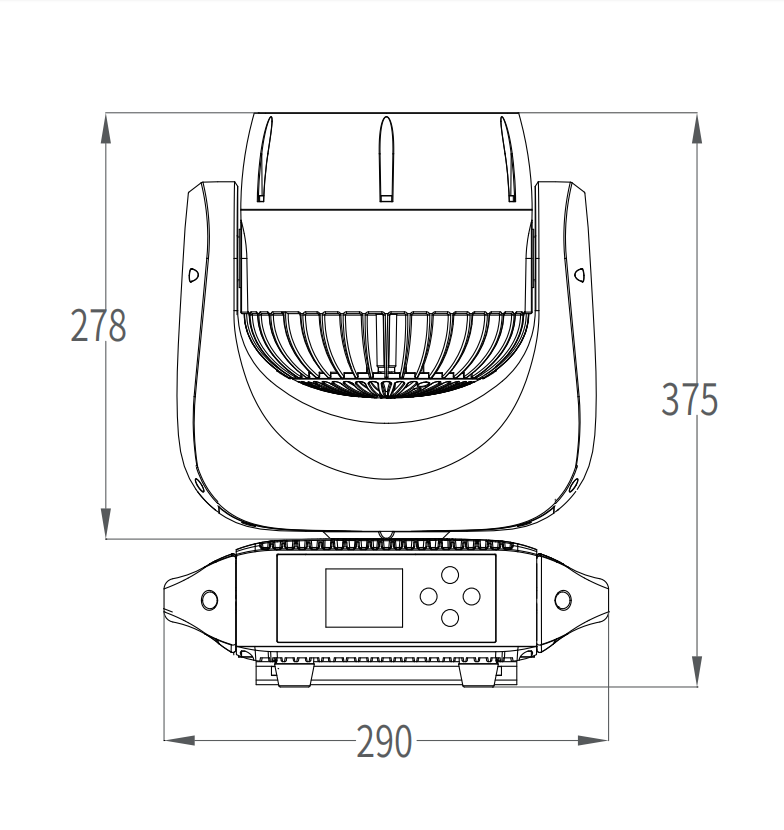

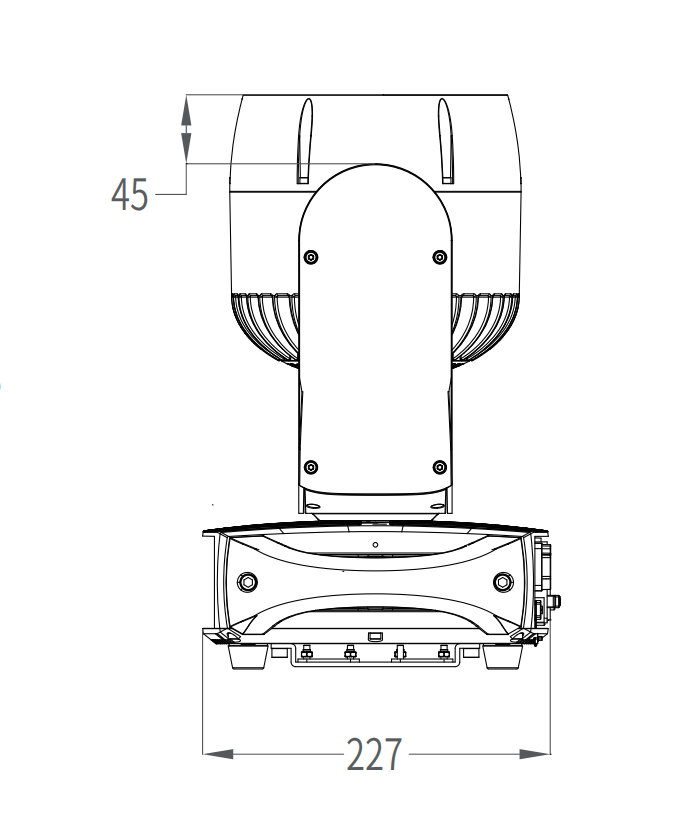

Size
290X227X369mm
Weight
9.8kg
Casing
magnalium
Electrical Specs
Voltage
100-240VAC，50/60Hz
Max. Power
320W
Power Connection
Power in and out
Signal socker
3pin or 5 pin in and out
Work Environment
Ambient Temp
-20℃-45℃
IP Rated
IP66
Certification
Certification
CE
