T10
T10 is a high-power professional LED profile moving ahead with 5°-50° Electronic zoom system. It is a kind of final version stage light, accurate and efficient motor can provide not only large pan angle and tilt angles but also with smooth and high speed. PLUTO 800 PROFILE has image-cutting system can cut out any polygon, and with zoom, focus, prism, color wheel, CMY, gobo wheels, iris, frost can supply high-quali-ty beam colors and gobos. PLUTO 800 PROFILE is equipped with animation wheel which can create dynamic water and dynamic fire effect. PLUTO 800 PROFILE is design for the cultural center, function hall, banquet hall, and rental performance market.
DETAILS
Optical system
Light source
1000Wmodule
Angle
5-50°
CRI
72
Total lumen output
23540lm

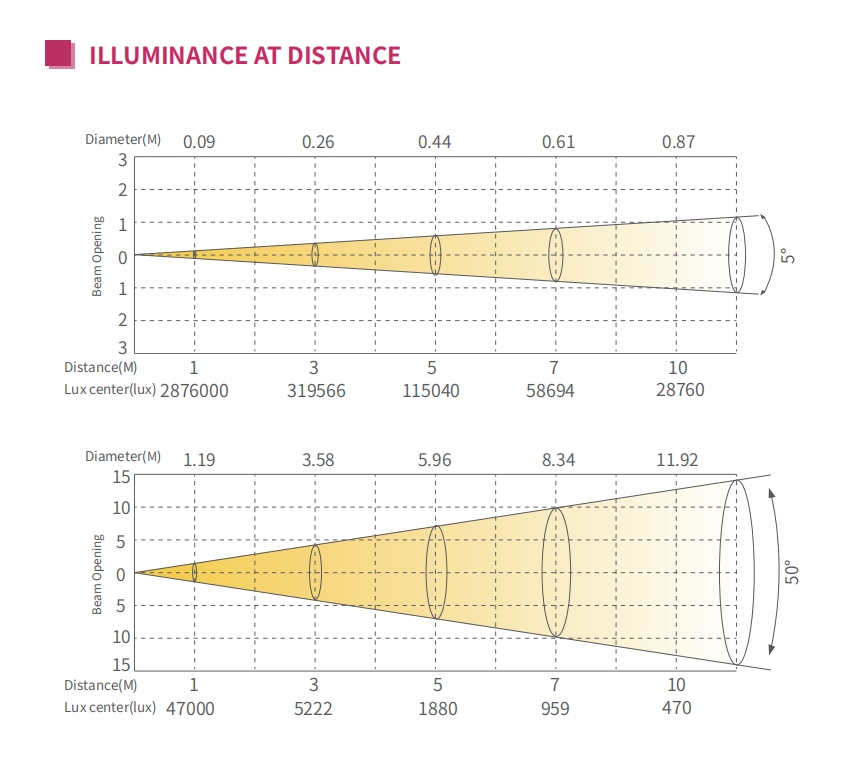

Illuminance
115040lx@5m
Control System
Pan/Tilt rotation
水平540 ° ， 垂直270 ° （8 - 1 6 b i t 扫 描 ）
Dimmer
0-100%16Bit
Control
DMX512、RDM、SACN、ARTNET、W-DMX（可选）
Cooling
Forced Convection
Display
On board Control, Custom Mode,0-25Hz Strobe
Con Personality
BASIC、STANDARD、EXTEND
Special
Pan/Tilt movement blackout, User-selectablepan/tilt ranges
Effect synthetic system
Rotating Gobo
7 Gobos+ White, Gobo-flow effect, Gobo shake, Bi-directional rotation
Static Gobo
10 Gobos+White, Gobo-flow effect, Gobo shake
Colors
One color wheel (7 dichroic-filters+White, Rainbow-flow effect)
CMYK
CMY wheel, Linear CTo function
Animation Wheel
Bi-directional rotation
Prism
One piece of 5 F prisms,bidirectional rotating, speed can be adjusted
Framing system
4 shutter blade, Each blade's angel and direction can be individual controlled, fully blackout; The whole Framing module is +90°.
lris
5-100% linearly adjustable with macro
Focus
Motorized linear focus
Zoom
Motorized linear Zoom
Frost
1 Frost filter
Appearance

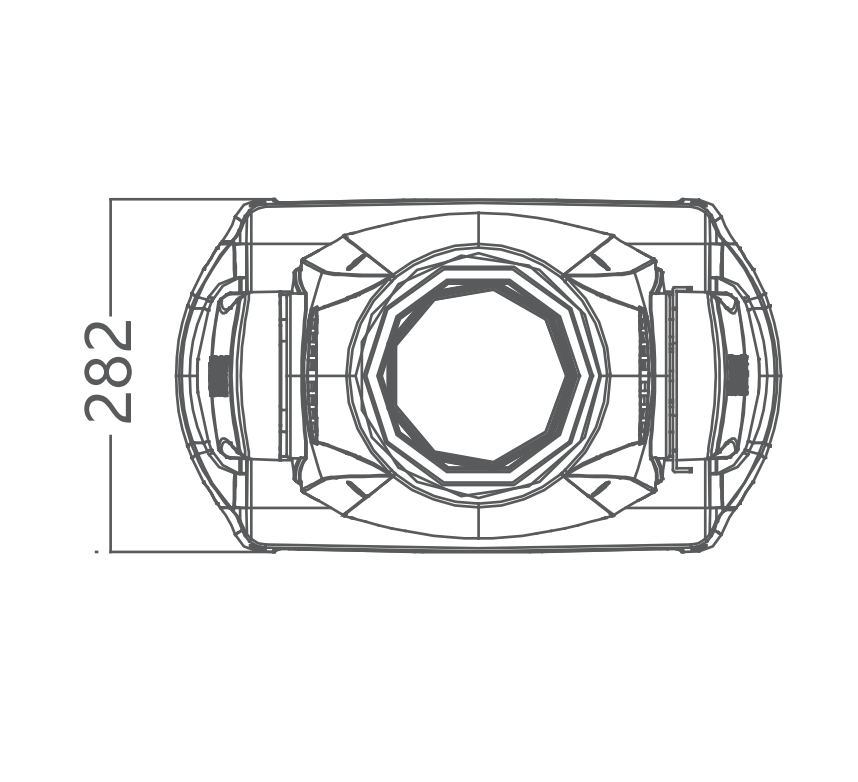

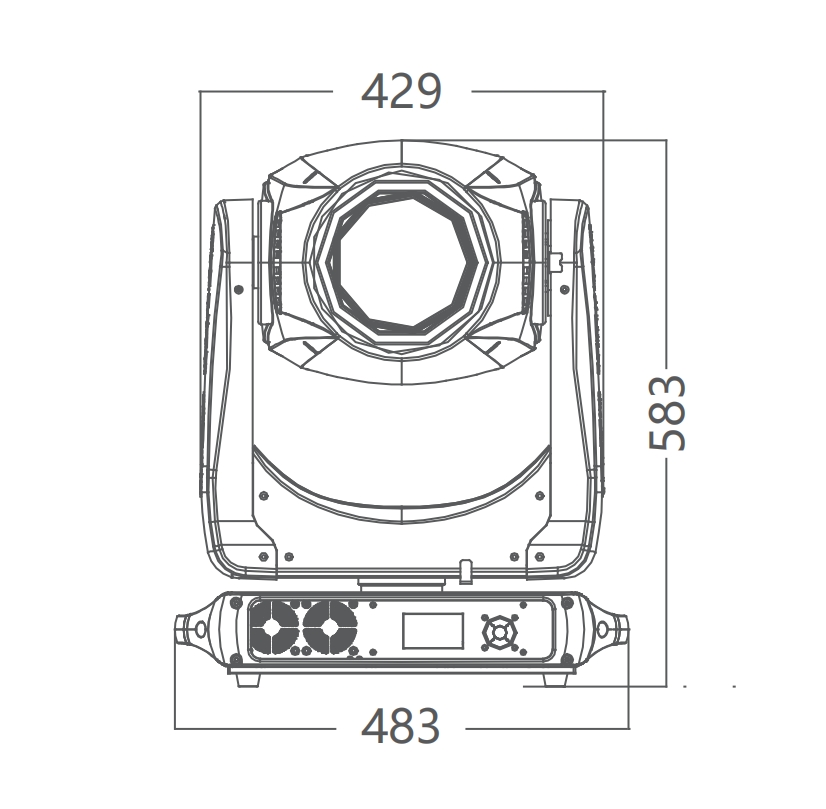

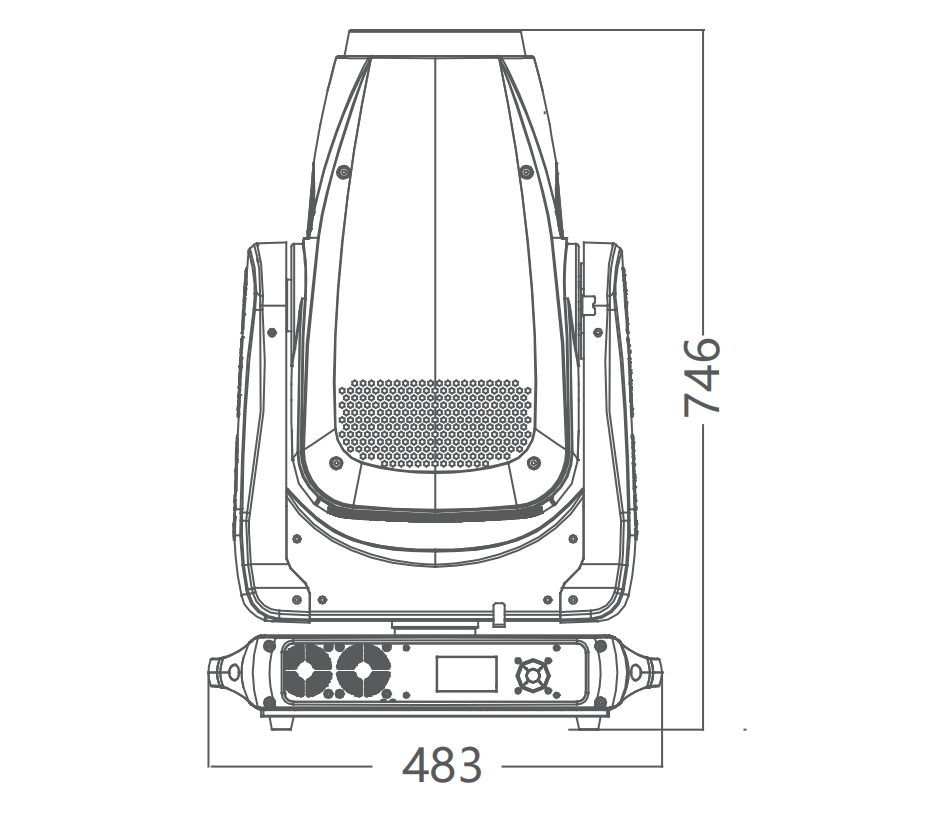

Size
483x283x746mm
Weight
35.5kg
Casing
Flame-retardant plastic（V0）
Color
Black
Electrical Specs
Voltage
100-240VAC,50/60Hz
Max. Power
1200W
Power Connection
power in
Signal socker
3pin + 5pin in/out, RJ45 in/out
Certification
CE、MET
Work Environment
Ambient Temp
0℃-45℃
IP Rated
IP20
