E6
Eidolon E6 is a 450W LED high-power outdoor waterproof gobo Framing Projector. It features a die-cast magnesium alloy housing, an IP66 protection rating, natural cooling technology, and an intelligent temperature control system to ensure stability and reliability. With a manual zoom range of 10°-55°, precise angle positioning, it is suitable for large-area, long-distance, and precise projection over extended periods. Equipped with an 8+1 color wheel, a 6+1 rotating gobo wheel, and prisms, it can achieve rich and colorful animated effects. The flexible integrated Framing system meets personalized projection needs. It is suitable for theme parks, amusement parks, landmark buildings, architectural facade, outdoor performances, and other venues.
DETAILS
TECHNICAL PARAMETER
Max. Power
450W
Light source
400W(cool white LED module)

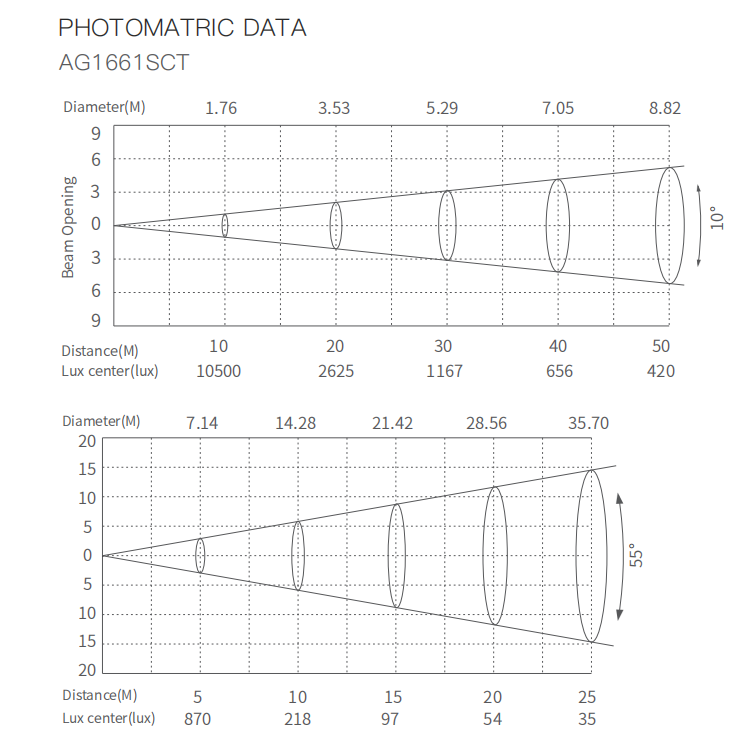

Zoom
10°-55°
Display
On board Control, 0-25Hz Strobe
Con personality
STANDARD(14CHS), BASIC(11CHS)
Rotating Gobos
1 rotating gobo wheels (6+open interchange glass gobos), Gobo-flow effect, Gobo shake, Bi-directional rotation
Color wheel
One color wheel (8 dichroic-filters+open, Rainbow flow effect)
Prism
1 x 3F prism + 1 x 4F linear prism
Focus
Manual Focus
Animation Wheel
Bi-directional rotation, Speed adjustable
Frost
1 motorized frost filter
Dimensions（L*W*H）
607x335x250mm
Framing system
Manual Framing
