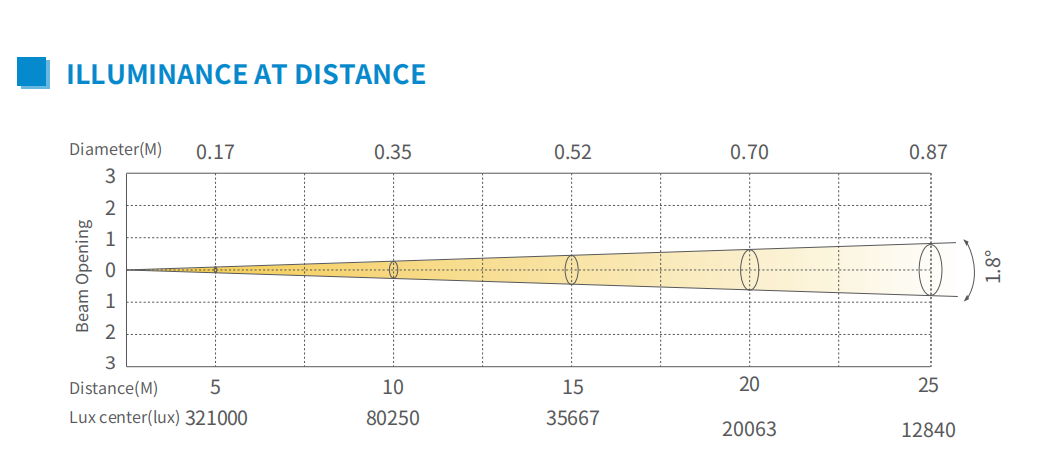

ILLUMINANCE

NB5

NB5 is a 500w powerful IP moving beam fixture, which deliver unbelievable strong and powerful output. With 200mm super big aperture lens, can provide a solid,fat, sharp and clean beam at angle 1.8°. lt has a super-fast and precise X/Y movement,combine with abundant gobo and color effect,plus the dual-prism overlay effect. lt is an idea product for outdoor perfor- mance and landscape lighting. NB5 has a broad market in live performances, cultural tourism markets, theme parks and other both outdoor and indoor applications!
DETAILS

Optical system

Light source
450W
Angle
1.8°

Control System

Dimmer
0-100% 16Bit dimming
Cooling
Air cooling
Control
DMX/RDM/W-DMX(selectable)
Display
Display board control static, 0-25Hz stroboscopic
Con Personality
BASIC(13CHS)、STANDARD(18CHS)、EXTEND(19CHS)

Effect synthetic system

Rotating Gobo
8 rotating Gobo wheel + white, gobo water effect, gobo shaking effect, Bi-direction rotation
Colors
1 color wheel (9 color+ white, rainbow-flow effect)
prism
one 16 prism, one 5-row mirror, positive and negative rotation, adjustable speed
focusing
With linear focus function

Appearance

Size
411x280x603mm
Weight
30kg
Casing
Die casting magnesium aluminum
Color
black

Electrical Specs

Voltage
AC100-240,50/60Hz
Max Power
500W
Power Connection
powerin
Signal socker
3pin or 5pin in and out

Certification
CE

Work Environment

Ambient Temp
-20℃-45℃
IP Rated
IP66
