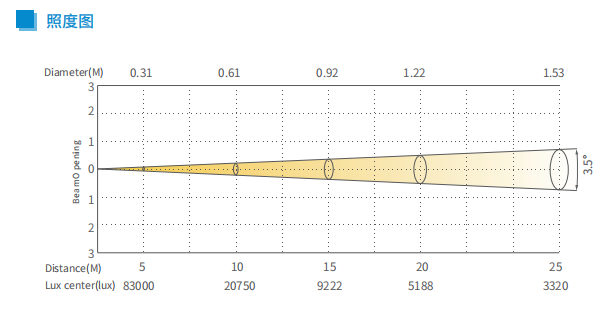

ILLUMINANCE

NF9

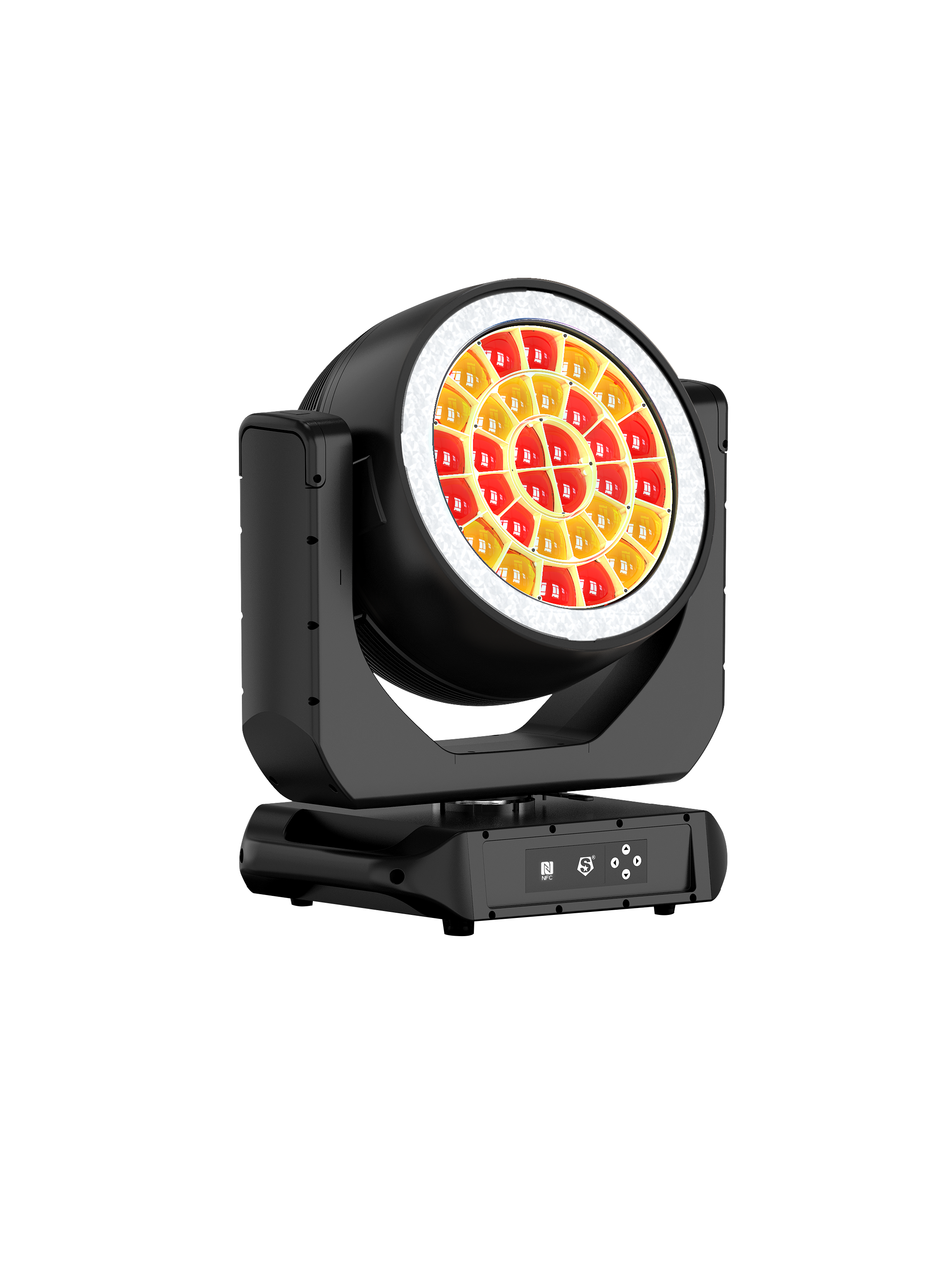

Neptune Moving Wash NF9 is a new generation of excellent color mixing RGBL 4-in-1 moving wash, equipped with 32pcs* 50W RGBL and M-face, Max power 1800W. 3.5-55 degree zoom range, the first triple zoom to create a rich washing effect, individual pixel control, can create a rich variety of dynamic effects. Original M-face optical glass halo. bright and dazzling. Infinite X rotating system. 24Bit dimming system, the ultimate dimming effect. with digital color processing system with 24 preset colors and full range color temperature. lP66 protection, waterproof and dustproof maintenance-free, and lightweight only 35KG, suitable for theater, variety show, TV station, concert, cultural travel project and city level lighting interpretation.
DETAILS

Optical system

Light source
32PCS*50W RGBL+RGBCW Ring
Beam angle
3.5°-35
Field angle
6°-55
Fixture lumen
18000lm

Appearance

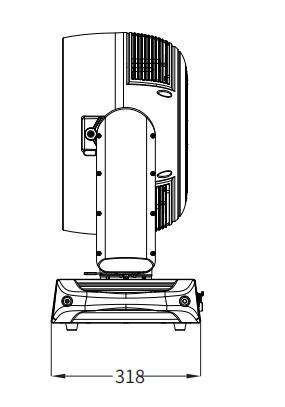

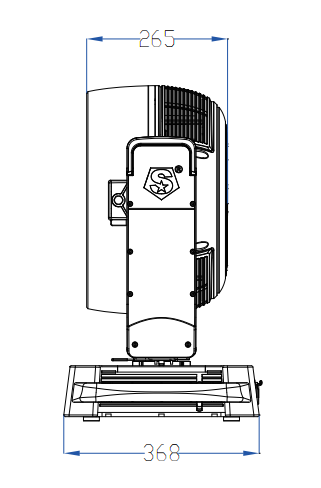

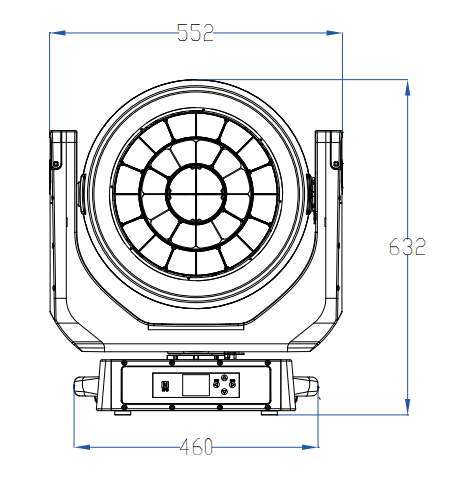

Size
541x318x633mm
Weight
35kg
Casing
Magnalium
Color
Black

Electrical Specs

Voltage
100-240VAC,50/60Hz
Max. Power
1800W
Power Connection
POWER in
Signal Socket
3pin or 5pin in and out, RJ45 in and out

Control System

Pan/Tilt rotation
Infinite Pan/Tilt 270°(8-16bit)
Dimmer
0-100% 24Bit
Cooling
Forced Convection
Control
DMX512、RDM、ARTNET、sACN、W-DMX(optional)、NFC
Personality
HSIC(28CH)/SSP(21CH)/TOUR(33CH)/ TR16(44CH)/CMY(32CH)/PIXEL RGBL(154CH)/ PIXEL Full(391CH)

Effect synthetic system

Led ring
Can present the rainbow effect
Effect
Individual Pixel
Zoom
Triple Zoom

Work Environment

Ambient Temp
-20℃-45℃
IP Rated
IP66

DOWNLOAD

user manual

leaflet

NF9 2025-04-24
